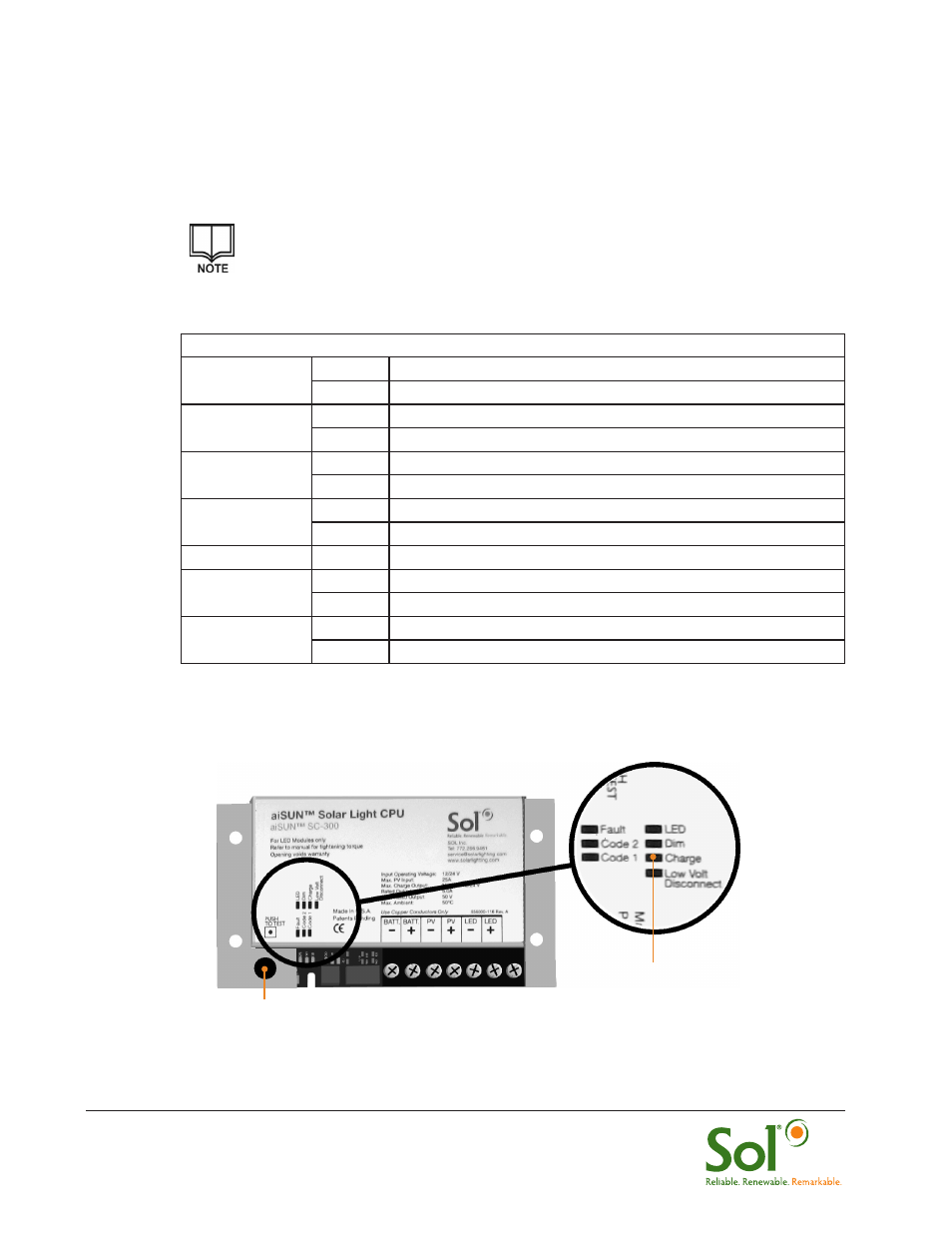

FIGURE 18
aiSUN™ CONTROLLER (ETERNO® 4 OPERATES SIMILARLY)
Test Button
Diagnostic Indicators
2.11 Testing the System
After the battery is installed and the components are connected, press the test button
(Figure 18). The LED fixture should illuminate at full intensity for five minutes, and the
LED
diagnostic indicator should be ON (illuminated).
One or more additional diagnostic indicators may also be ON. The indicators
will remain ON for approximately five seconds after pressing the test button.
The diagnostic indicators on the controller indicate the status of the TP Series lighting
system:
* If the battery voltage is too low, contact
Sol Customer Service at +1-772-286-9461.
After the TP lighting system is tested and found to be satisfactory, secure the battery box
cover to the battery box by closing it or replacing cover, using the 1/4”-20 x 1/2” hex
head bolts.
Indicator
Status
Description
LED
ON
The LED fixture is illuminated.
OFF
The LED fixture is off.
DIM
ON
The LED fixture is in the Power Save mode. Contact Sol.*
OFF
Dimming is not active due to Power Save. Battery voltage is OK.
Charge
ON
The controller is charging the battery.
OFF
The controller is not charging the battery.
Low Volt Disconn Flashing
The battery is either disconnected or too low. Contact Sol.*
OFF
Battery condition is OK.
Code 2
Reserved for future use.
Code 1
ON
If system is a dual LED fixture system, one fixture is disconnected.
OFF
Fixtures are OK.
Fault
ON
LED fixture issue: short circuit or open circuit.
OFF
Fixtures are OK.
