Connecting the Components
All controllers ship with Clik™ together wiring harnesses. This eliminates field wiring and
splicing. Use the wiring diagrams below for connecting your solar light system. Note:
includes a field replaceable fuse.
Connect the wiring harness to the battery (or batteries) as shown in Figure 15 (for one or
two batteries), Figure 16 (for three or four batteries), or Figure 17 (for systems with two
luminaires with one, two, three or four batteries).
Battery 1
+ -
Battery 2
(if provided)
+ -
Controller
PV Module
Black (+)
Orange (-)
Black (-)
Red (+)
Green -
Ground
LED Luminaire
Brown (+)
Blue (-)
Luminaire Load Cable
Battery Harness (one per battery)
Harness(single or double)
Battery 1
+ -
Battery 2
+ -
Battery Wiring for
24VDC Systems
Black (-)
Red (+)

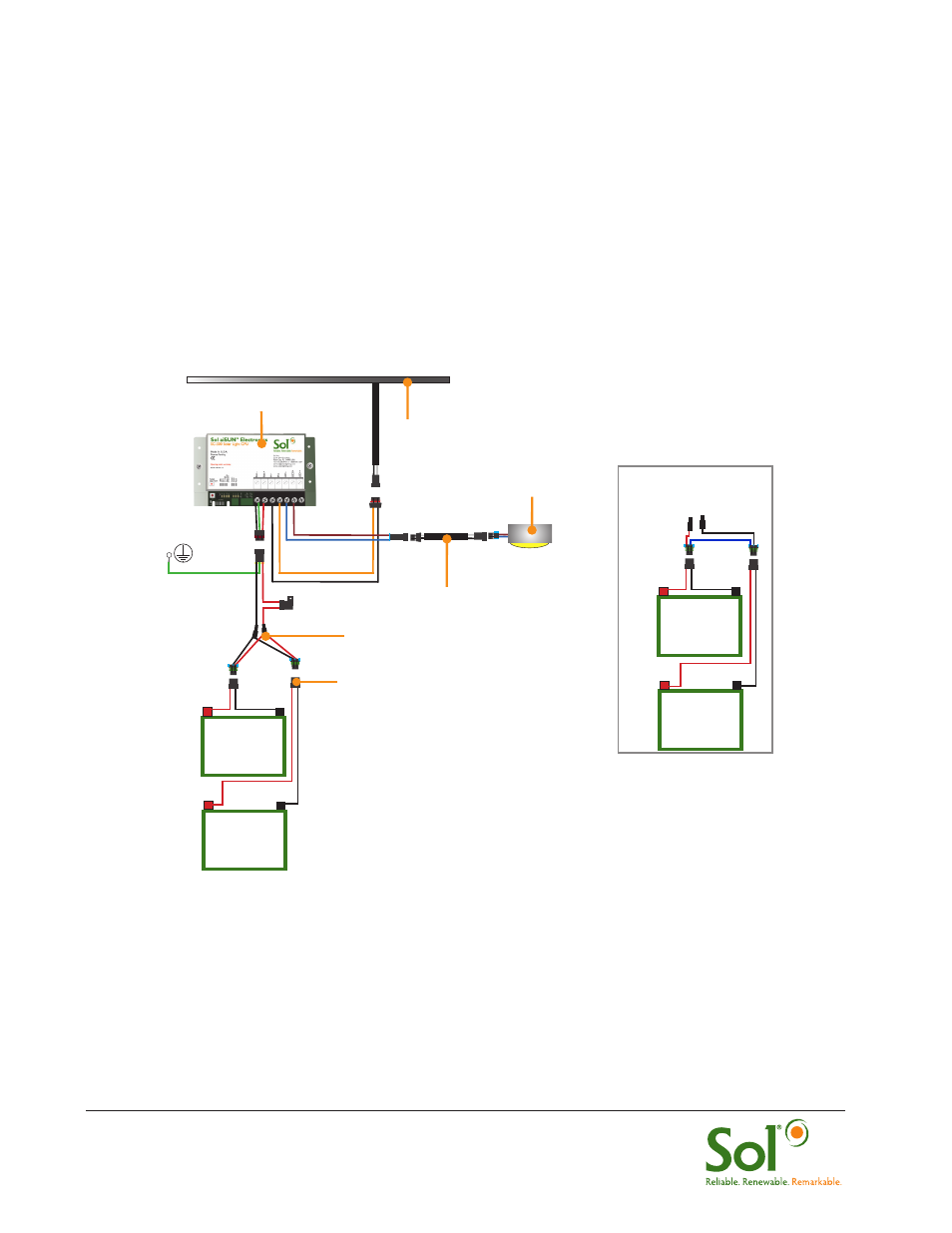

FIGURE 15 ONE LED LUMINAIRE WITH 1 or 2 BATTERIES
