2.7
Riveting the Arm Assembly and PV Assembly to the Pole
1.
Verify that the arm is positioned so that the light fixture (which will be attached to
the end of the arm) is in the desired orientation.
2.
Using one of the pilot holes at the upper end of the pole as a guide, drill one rivet
hole using a U.S. “W” gauge (0.386-inch) drill bit.
When drilling a rivet hole, drill through the pilot hole and then through
the arm assembly stock beneath the pilot hole.
Drill and rivet one pilot hole at a time. Do not drill another hole until
the previous rivet is secured. If a “W” gauge (0.386-inch) drill bit is not
available, use a 25/64-inch drill bit.

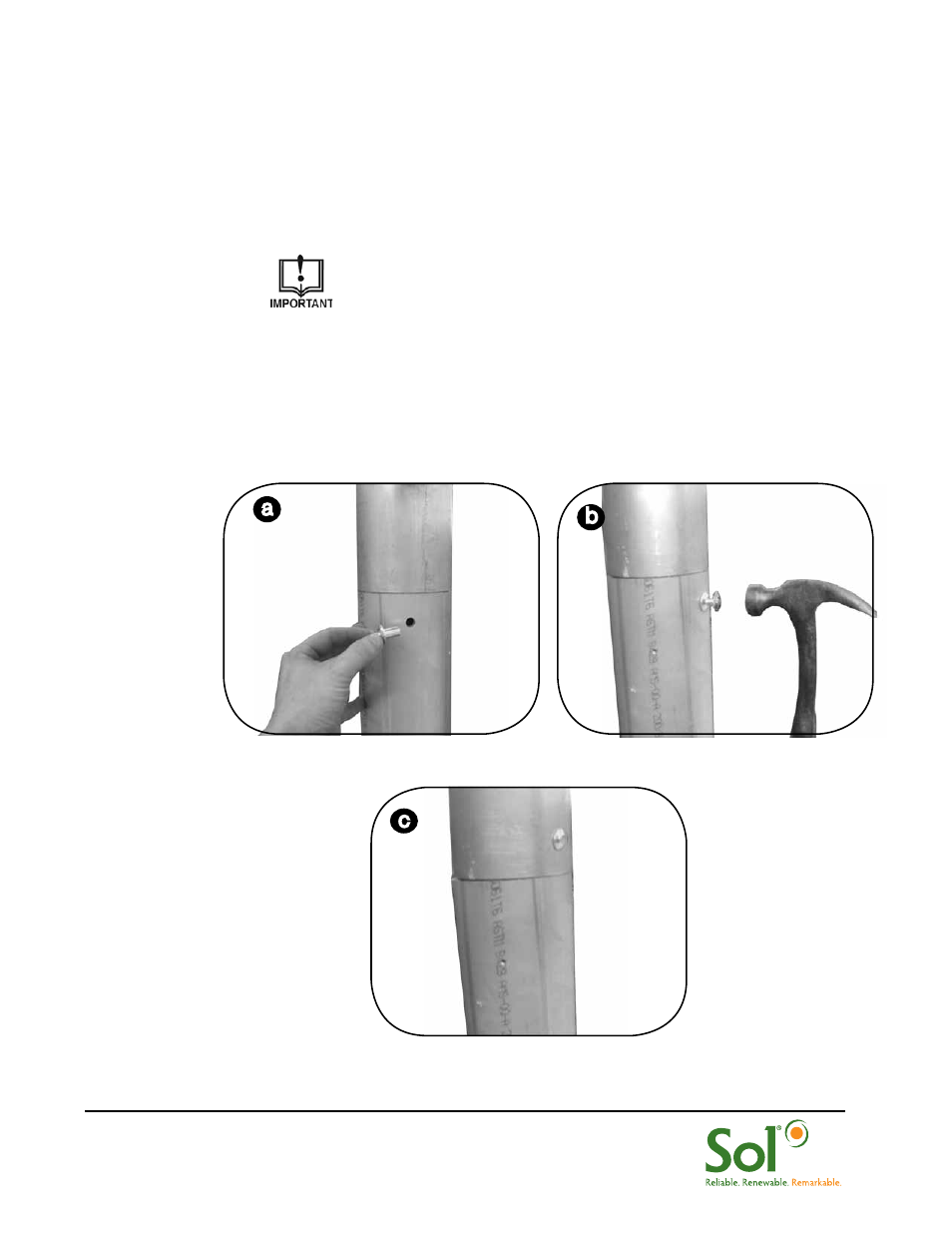

3.
Place a drive rivet in the rivet hole and pound the drive rivet into the hole until the
head of the drive rivet is tight against the side of the pole.
4.
Repeat for remaining drive rivets.
c
b
a
