6 MKTG-IM-GWY-03-EN-0513
Installation Manual | Greenway ® Solar LED Path and Trail Lighting System

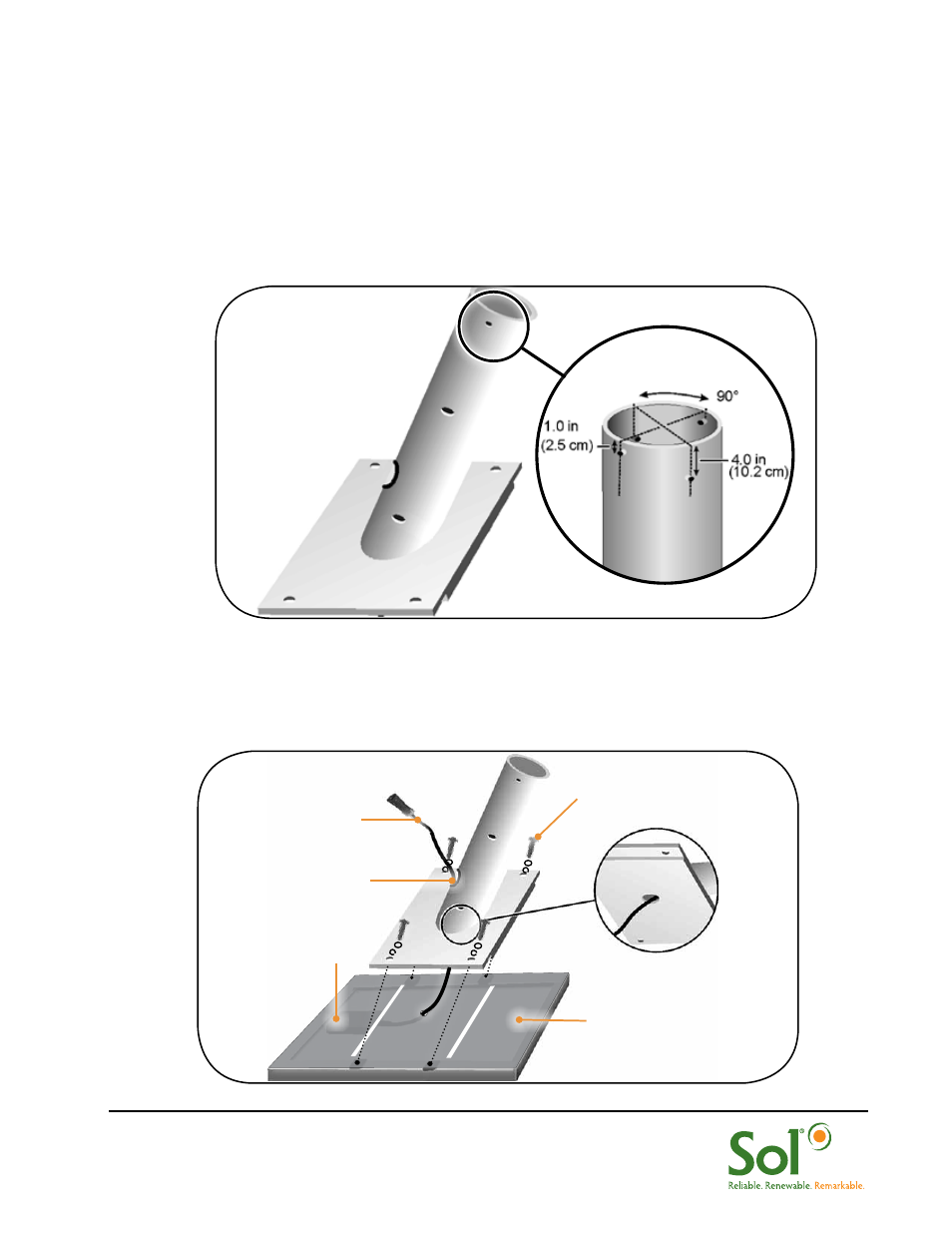

2.3 Drilling Holes in the Solar Panel Mount
1. Drill two equally-spaced 0.125-inch (3.2 mm) pilot holes 1 inch (2.5 cm) below
the end of the pipe, as shown in Figure 5.
2. Drill two additional equally-spaced 0.125-inch (3.2 mm) pilot holes 4 inches
(10.2 cm) below the end of the pipe, as shown in Figure 5. Position the holes 90
degrees from the holes drilled in the previous Step.
2.4 Attaching the Solar Panel Assembly to the Solar Panel Mount
PV Harness
Bottom View
Hole and
Grommet
Junction Box
Panel Pan
PV Mount Screws, Lock
Washer & washers (4)
