Sol GreenWay Solar Path Lighting - Manual (Page 13)

13 MKTG-IM-GWY-03-EN-0513
Installation Manual | Greenway ® Solar LED Path and Trail Lighting System

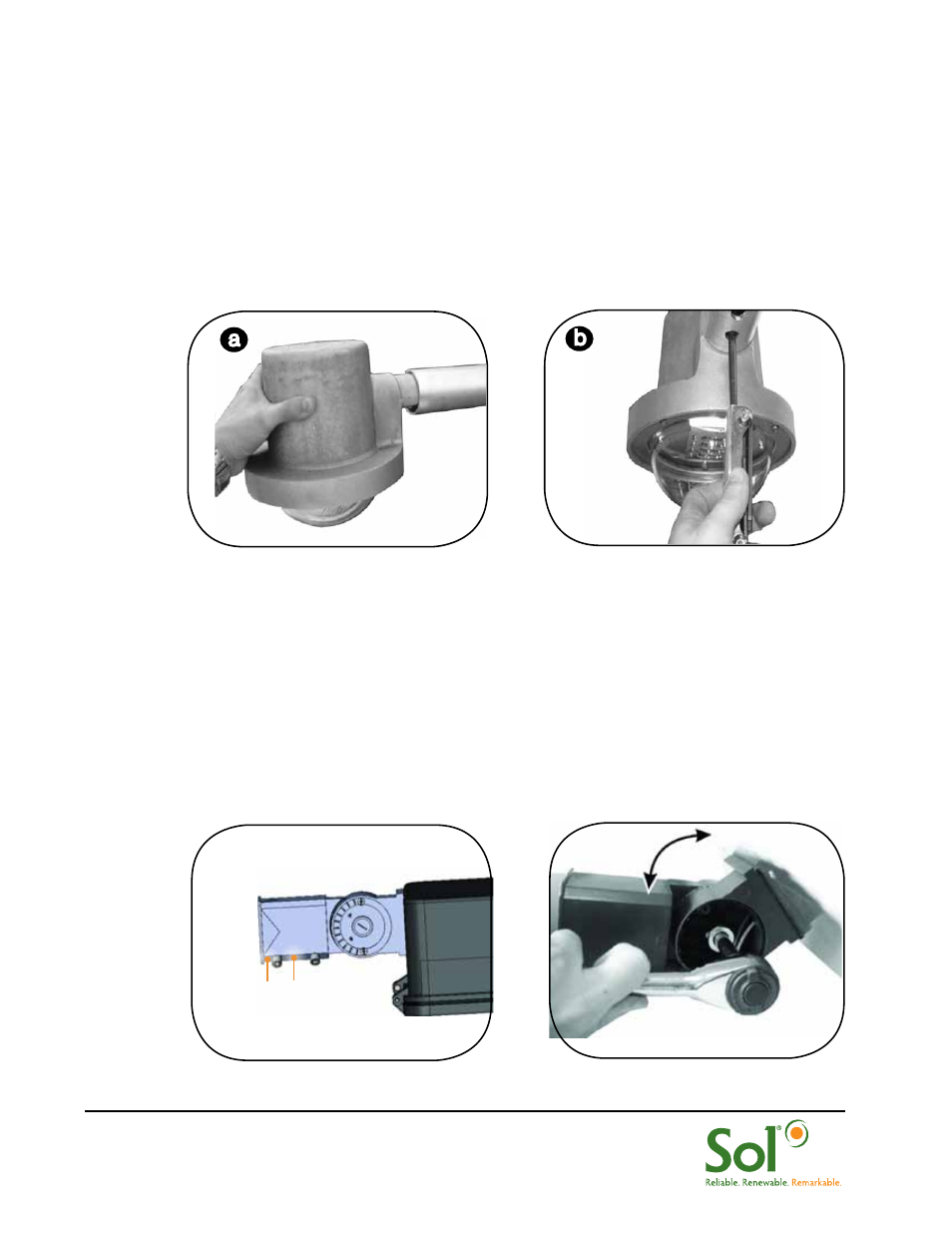

2.10 Attaching the LED Fixture to the Arm
Attaching the Ascot Fixture to the Arm
1. Plug the Ascot fixture connector into the harness connector.
2. Slide the Ascot fixture into the arm. Feed any excess cable back into the arm
while sliding the LED fixture onto the arm.
3. Adjust for the desired tilt and secure fixture to the arm using the socket head
bolts.
Attaching the Shoebox Fixture to the Arm
1. Loosen the two set screws on the Shoebox fixture.
2. Plug the Shoebox fixture connector into the harness connector.
3. Slide the Shoebox fixture over the arm. Feed any excess cable back into the arm
while sliding the fixture over the arm.
4. Remove the circular cover (using a Phillips screwdriver) and loosen the bolt
(using a socket wrench) to change the angle of the fixture. Tighten the bolt and
replace the cover when completed.
Set Screws
b a
