Installation Manual | Greenway

®

Solar LED Path and Trail Lighting System

2.8 Attaching Battery Box to the Solar Panel Mount

Standard Battery Box:

1.

Route ends of Fixture and PV Harness through hole in back of the battery box.

2.

Loosely fasten the brackets of the battery box to mount, using four 1/4”–20 x
1/2” hex head bolts and tighten each bolt to a torque of 15 ft-lbs (20 N-m).

Avoid stripping the threaded holes on the solar panel assembly. Do not
over-tighten the bolts.

Double Battery Box:

1.

Using Battery Box Channel as guide, drill three holes and mount channel.

2.

Loosely fasten the brackets of the battery box to mount, using four 1/4”–20 x
1/2” hex head bolts and tighten each bolt to a torque of 15 ft-lbs (20 N-m).

Battery Box
Channel location
when using
Double Battery
Box

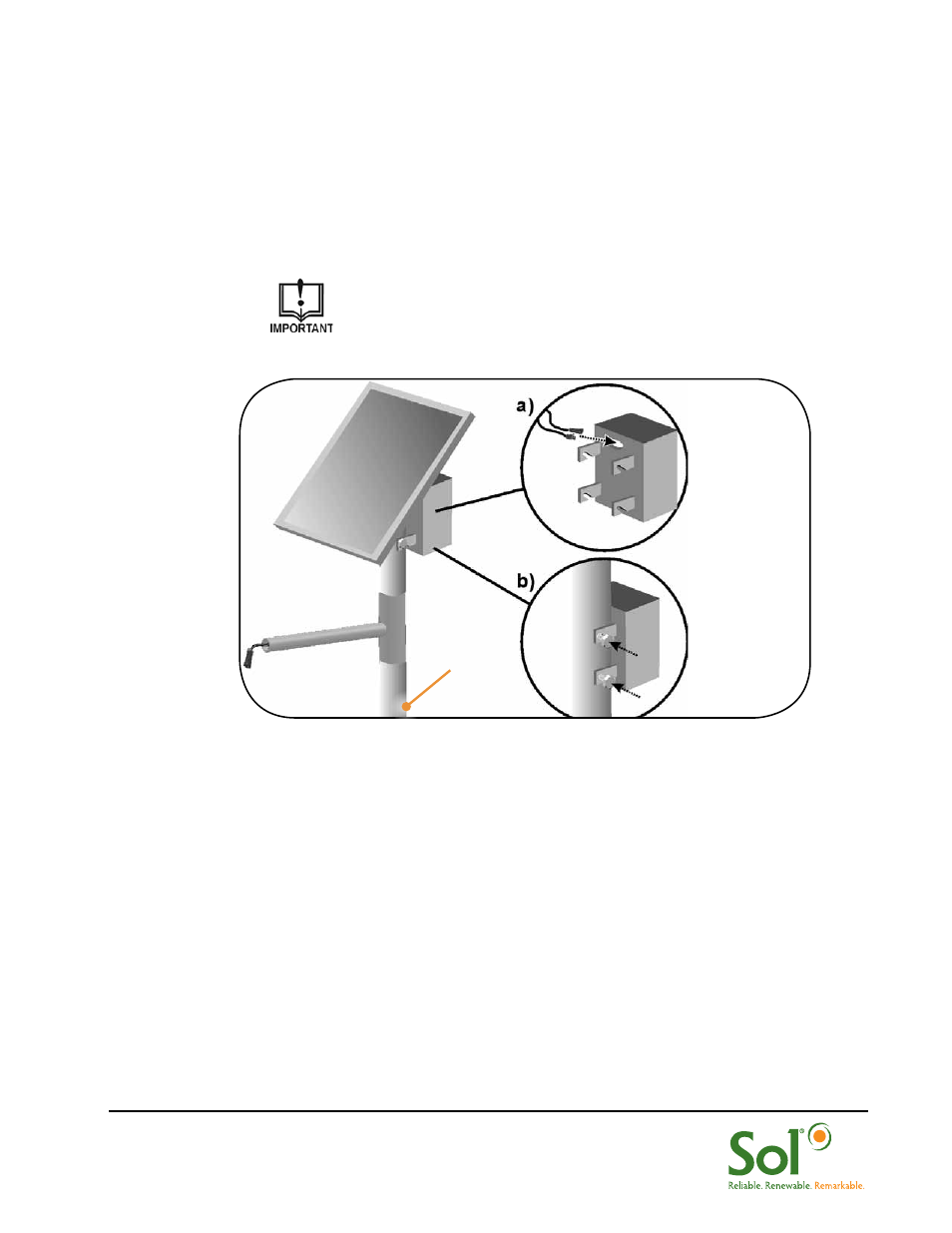

(a) Routing the Cables
Into the Battery Box

(b) Securing the Battery
Box to the PV Mount
