Installation Manual | Greenway

®

Solar LED Path and Trail Lighting System

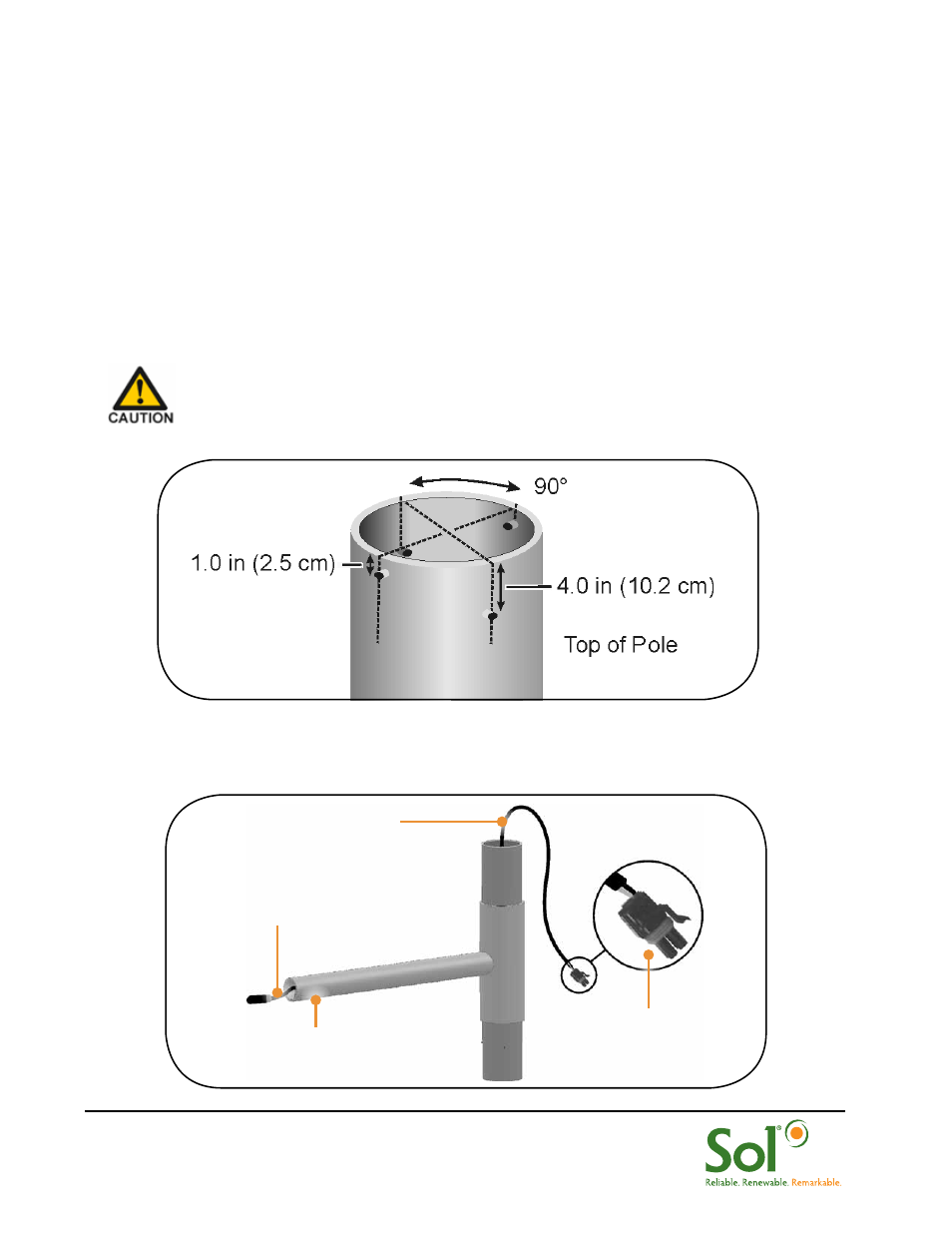

2.2 Routing the Load Cable Through the Arm Assembly

LED Fixture

Connector

Holes for Mounting LED
Fixture Must Face Down

Fixture Harness

Connector to

Controller

2.0 Assembling

2.1 Pole Preparation

Four holes must be drilled at the top of the pole. This should be done before the pole is set and
anchored.

1.

Drill two equally-spaced 0.125-inch (3.2 mm) pilot holes 1 inch (2.5 cm) below
the top of the pole, as shown in Figure 3.

2.

Drill two additional equally-spaced 0.125-inch (3.2 mm) pilot holes
4 inches (10.2 cm) below the top of the pole, as shown in Figure 3. Position the
holes 90 degrees from the holes drilled in Step 1.

It is imperative that the pole is properly anchored. Standard pole anchoring methods may
be used, providing they meet the engineering requirements for EPA and weight of the
system you have purchased.
