Installation

32

900-0111-01-00 Rev B

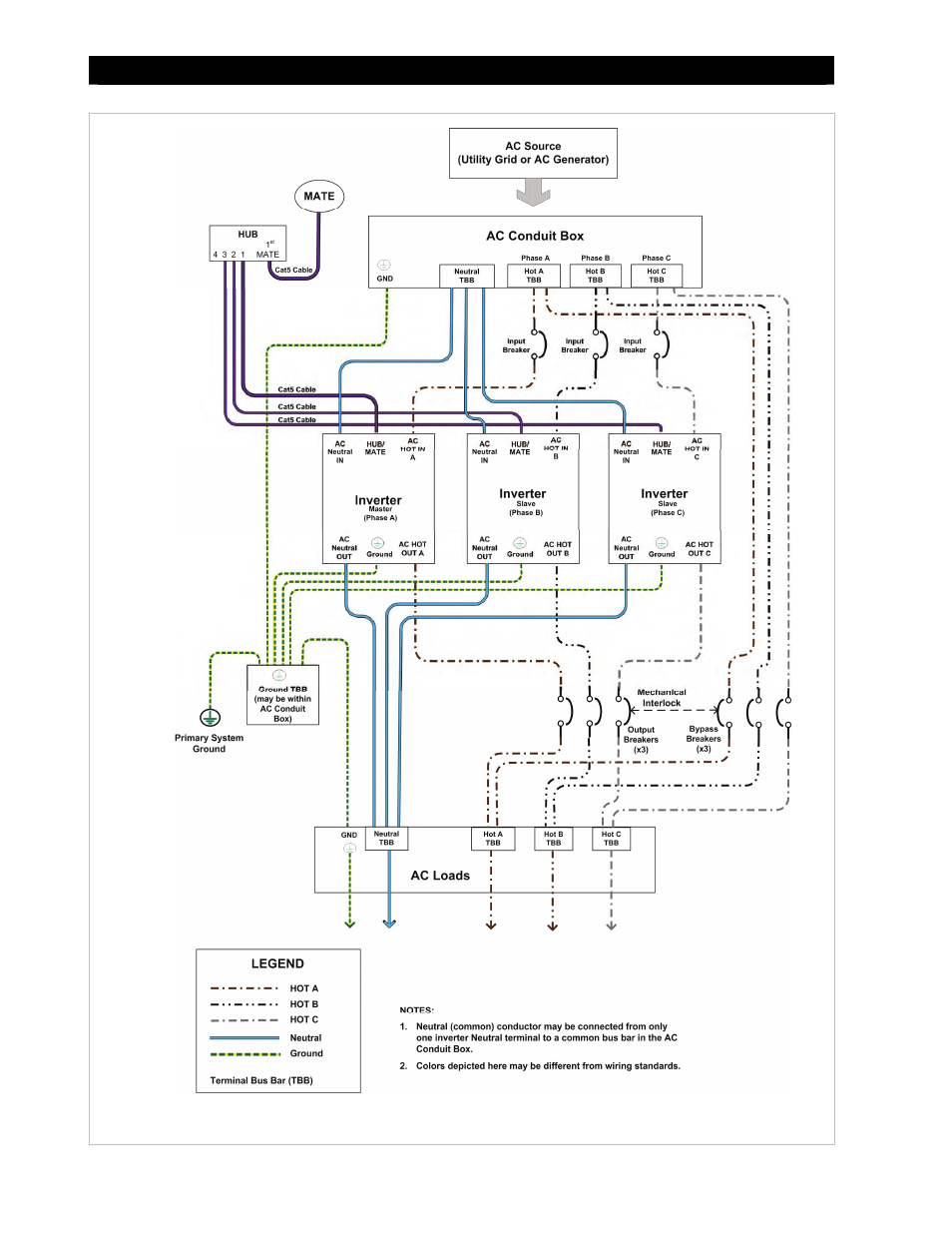

Figure 23

Three-Phase Wiring (Three Inverters)

NOTES:
1. Neutral (common) conductor may be connected from only one

inverter neutral terminal to a common bus bar in the AC conduit box.

2. Colors shown here may be different from wiring standards.
