AC Wiring
Table 5 AC Conductor Size and Torque Requirements
Conductor Size Recommendation Torque Requirements
Minimum 6 mm2 (#10 AWG) or 0.009 in2 4.0 Nm (35 in-lb)

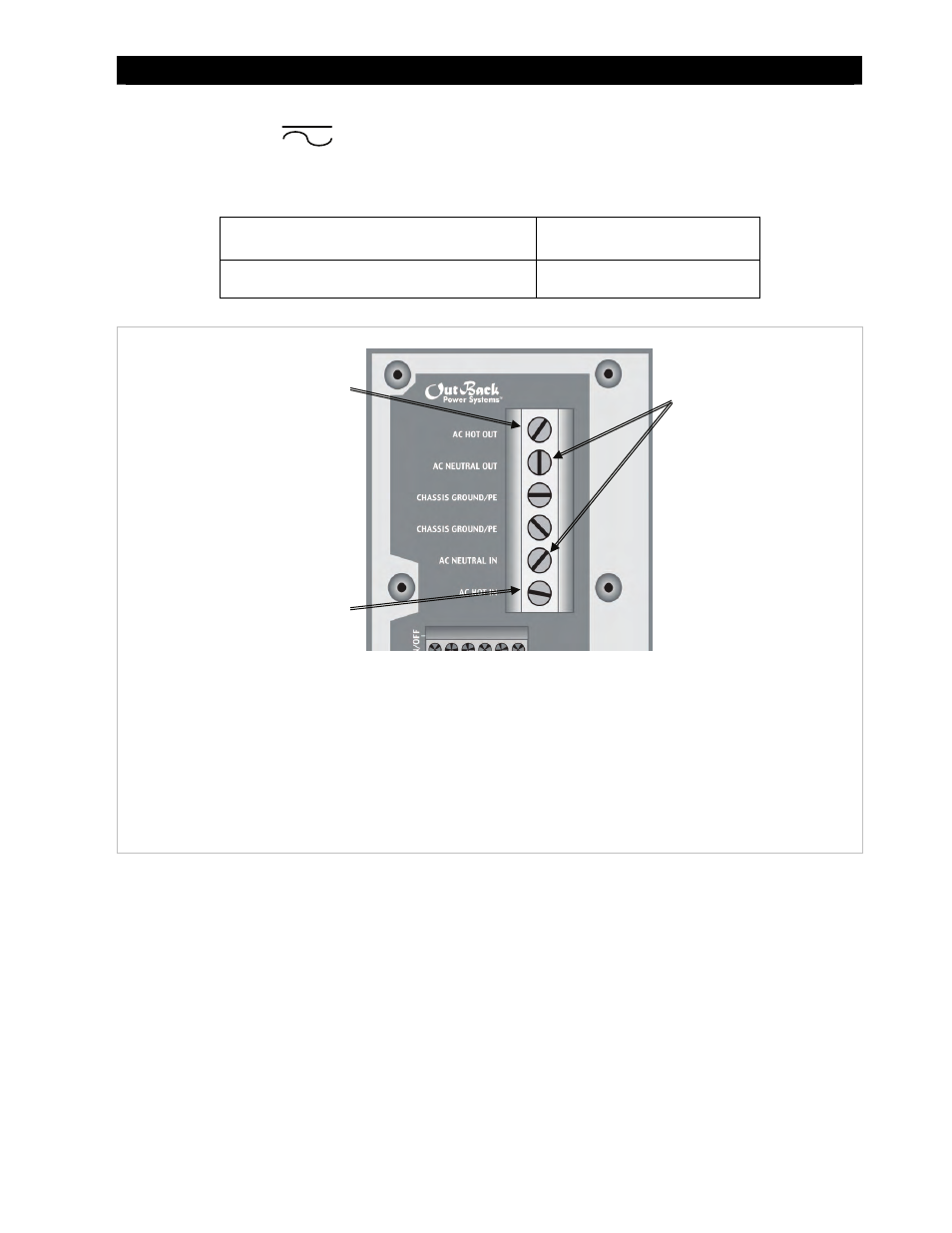

Figure 10 AC Terminals
All system wiring must comply with national and local codes and regulations.
The two Neutral
terminals are
electrically common.
If connecting to an
external ground bus,
only one terminal
needs to be used. (An
external bus is often
placed in the main
electrical panel, which
is the Loads panel
shown in Figure 11).
Use the other terminal
if connecting to a
device with its own
neutral wire, such as a
generator.
The AC Hot In terminal brings
power from the AC source. It
powers both battery charger
and loads. Use the source
amperage to determine actual
maximum draw. Size circuit
breakers accordingly.
The AC Hot Out terminal
connects to the load panel. It
can carry up to 30 amps using
the inverter’s transfer relay. Use
the inverter wattage to
determine actual maximum
load. Size the circuit breakers
accordingly.
