Dee Zee DZ16223 User Manual
Page 13

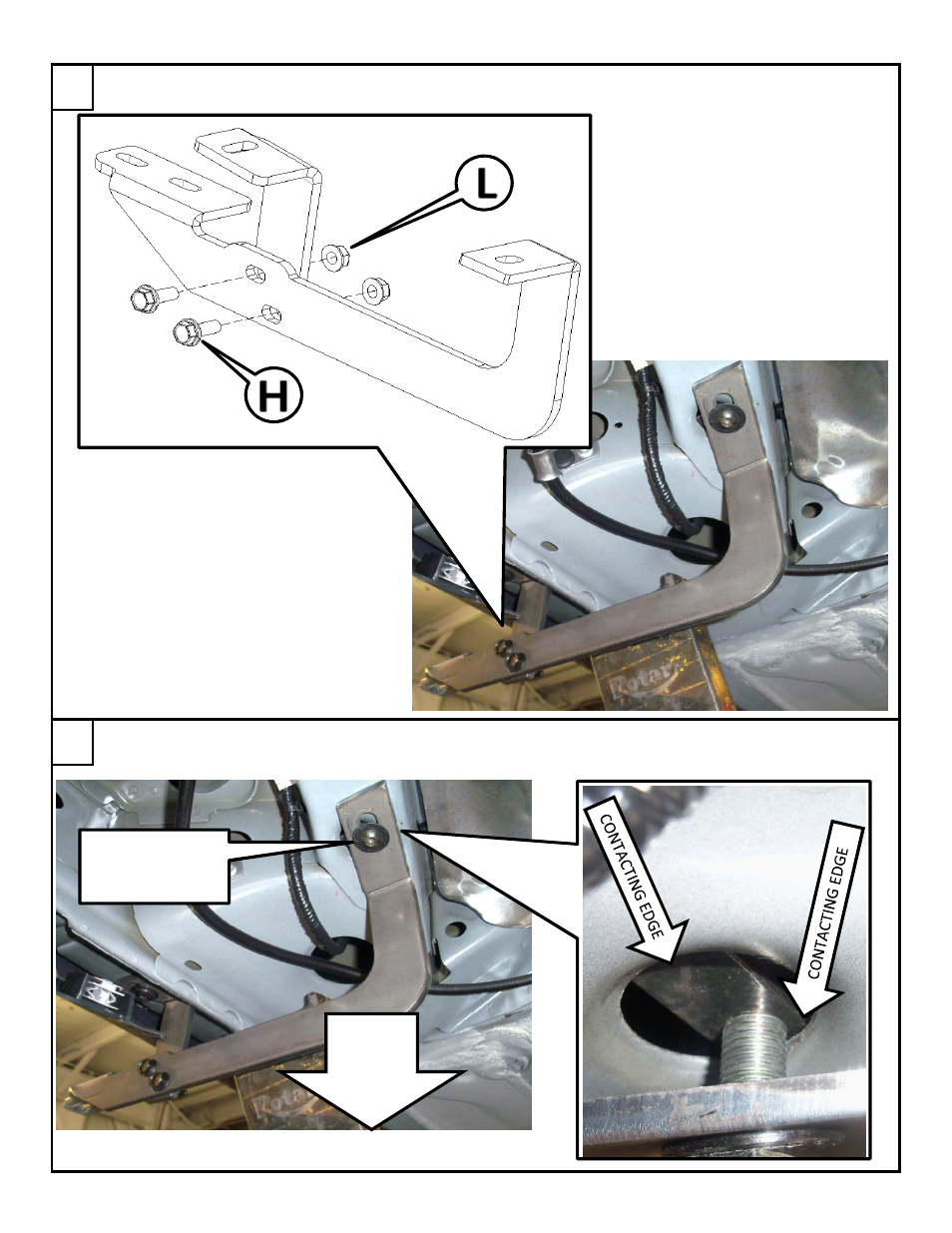

Using the 8mm bolt [H] and 8mm nut [L], attach the rear brace to the mounting bracket.
Do NOT completely tighten at this time.
Move the brace and the threaded plate so that the threaded plate is contacting the hole on both sides.
Pull down on the brace to put tension on the threaded plate and tighten with a 7/32" Allen.
17
16
PULL
BRACE
DOWN
TIGHTEN BOLT
HERE WITH 7/32"
DZ 16223
11 OF 15
8/9/2013
