Dee Zee DZ16223 User Manual
Page 9

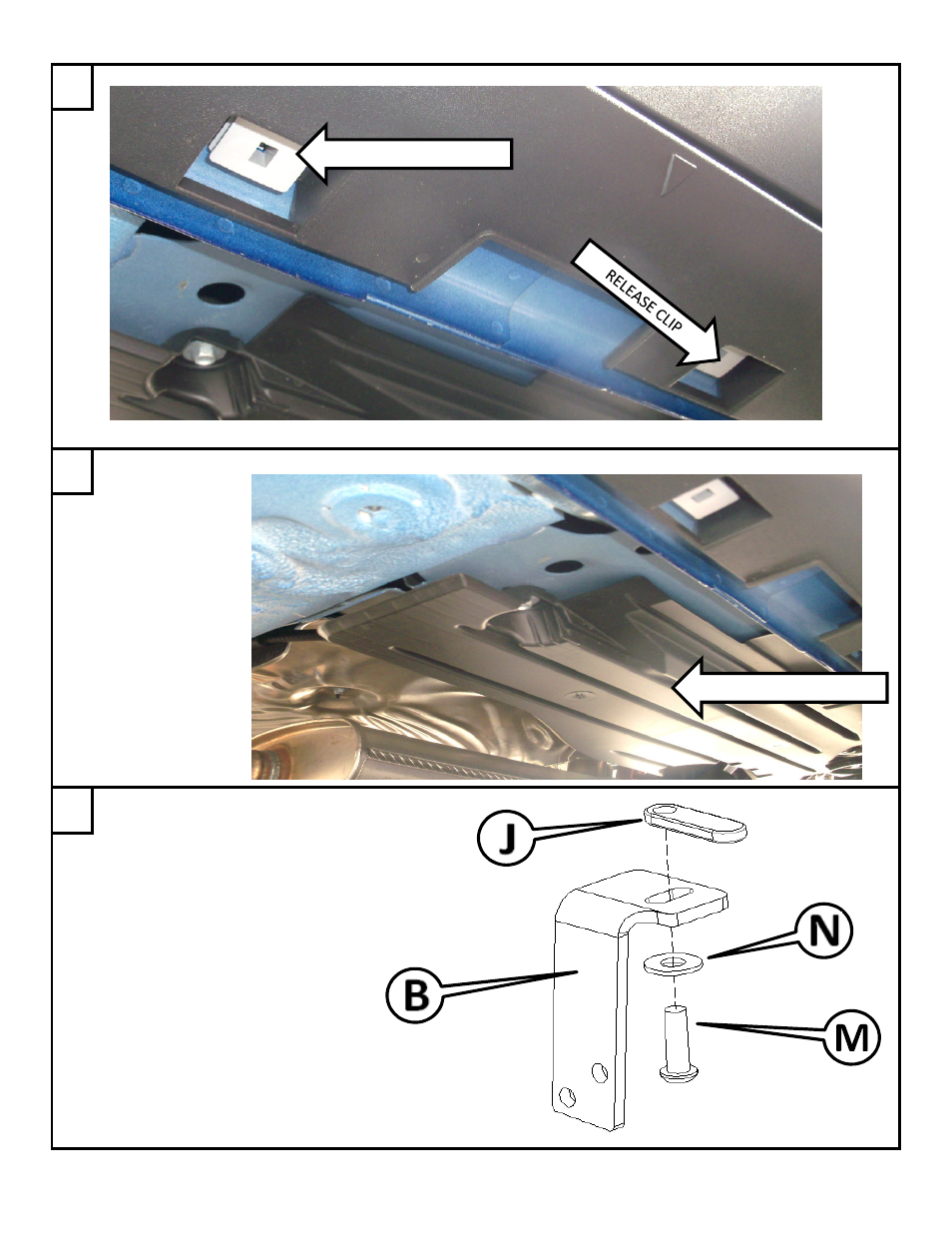

Once the hole has been drilled, release the 2 clips on either side of the cladding cut out.
Using a 10mm socket, remove the panel. One of the bolts is under the cladding.
NOTE:
SAVE THE BOLTS.
THEY WILL BE USED
TO REINSTALL
THE PANEL.
Using the 3/8" button head bolt [M],
3/8" washer [N], and offset threaded plate [J],
thread the bolt into the plate
through the slot in the mounting bracket [B].
8
9
10
RELEASE CLIP
REMOVE PANEL
DZ 16223
7 OF 15
8/9/2013
