Dee Zee DZ16223 User Manual
Page 6

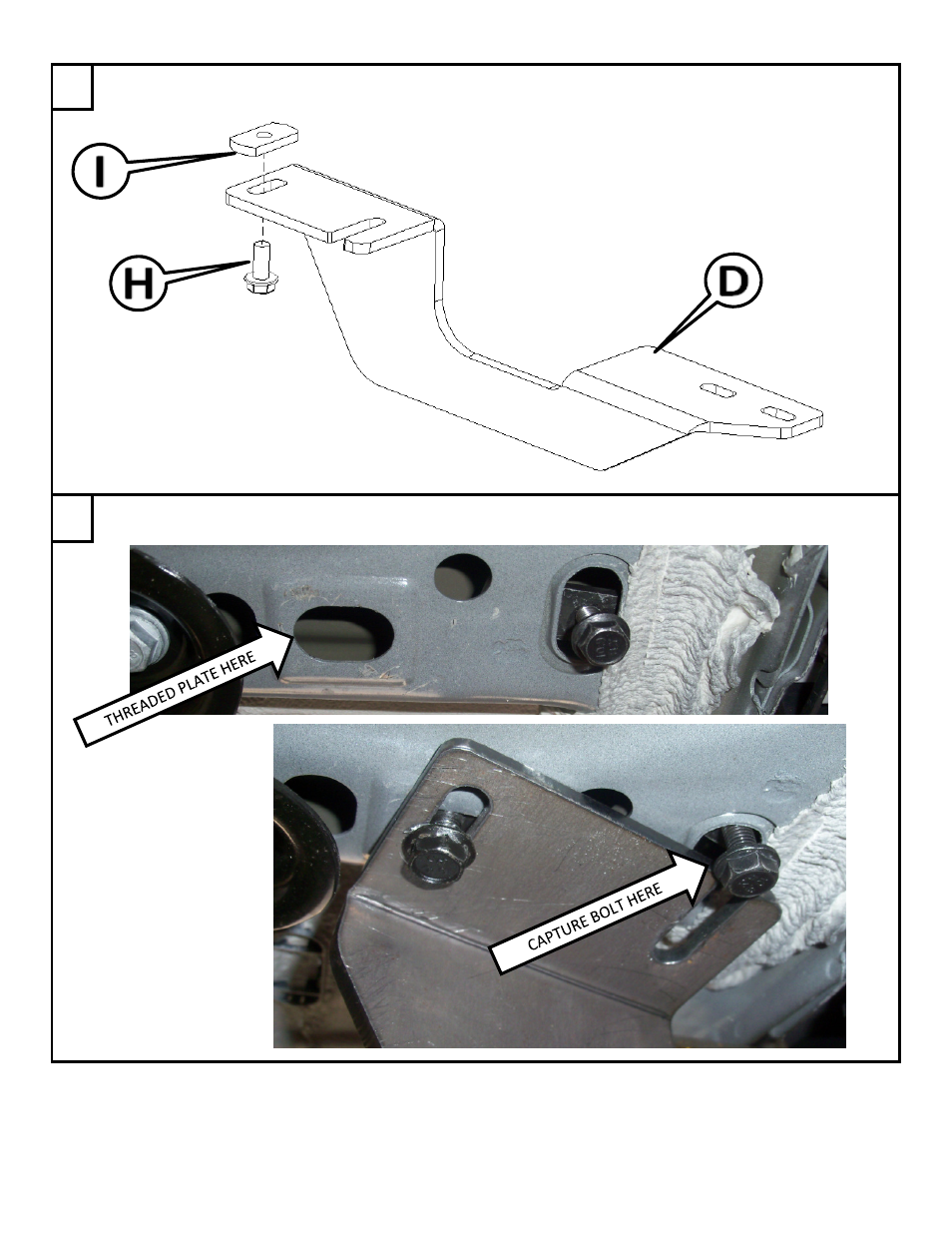

Using the 8mm bolt [H] and threaded plate [I], thread the bolt into the plate
through the slot shown below in the front driver side brace [D].
Once the bolt is threaded into the threaded plate, insert the threaded plate into the other slot in the
front mounting location. Rotate the brace to capture the bolt from Step 2 in the open ended slot.
3
4
DZ 16223
4 OF 15
8/9/2013
