Dee Zee DZ370403 - Manual

SIDEBAR
2011 SORENTO
Page 1 of 4 6/30/10 (DP)
PARTS LIST:
1 Driver Sidebar 6 12mm Lock Washers
1 Passenger Sidebar 6 12mm Hex Nuts
1 Driver/Left Front Mounting Bracket 4 10-1.25mm x 35mm Fine Thread Hex Bolts
1 Passenger/Right Front Mounting Bracket 4 10-1.50mm x 35mm Hex Bolts
1 Driver/Left Rear Mounting Bracket 12 10mm x 27mm x 3mm Flat Washers
1 Passenger/Right Rear Mounting Bracket 8 10mm Lock Washers
4 Support Brackets 4 10-1.50mm Hex Nuts
2 12mm Plastic Retainers 8 8-1.25mm x 25mm Hex Bolts
4 12-1.75mm X 40mm Special Short Bolt Plates 8 8mm x 24mm x 2mm Flat Washers
2 12-1.75mm X 40mm Special Long Bolt Plates 8 8mm Lock Washers
6 12mm x 32mm x 3mm Flat Washers
PROCEDURE:
1. REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE PRESENT. READ
INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION.
2. Starting at the front, passenger side of the vehicle, locate and remove the rubber plug in the
body well located next to the outer pinch weld, (Figure 1). Insert (1) 12mm x 40mm Short Bolt
Plate into the outer hole in the body and center it in the hole, (Figure 2). Select (1) Support
Bracket and hang the Bracket from the Bolt Plate with (1) 12mm Lock Washer, (1) 12mm Flat
Washer and (1) 12mm Hex Nut, (Figure 3). Do not tighten hardware at this time.
3. Remove the two 10-1.25mm fine thread factory hex bolts located on the bottom of the frame
rail, (Figure 4). Select the passenger side Front Mounting Bracket. Hang the Bracket from the
two threaded holes in the inner frame rail using the supplied (2) 10-1.25mm x 35mm Special
Fine Thread Hex Bolts, (2) 10mm Lock Washers and (2) 10mm Flat Washers, (Figure 5).
Line up the outer mounting hole in the Mounting Bracket with the Support Bracket and bolt
together with (1) 10-1.5mm x 35mm Coarse Thread Hex Bolt, (2) 10mm Flat Washers, (1)
10mm Lock Washer and (1) 10mm Hex Nut, (Figure 6). Snug but do not tighten hardware at
this time.

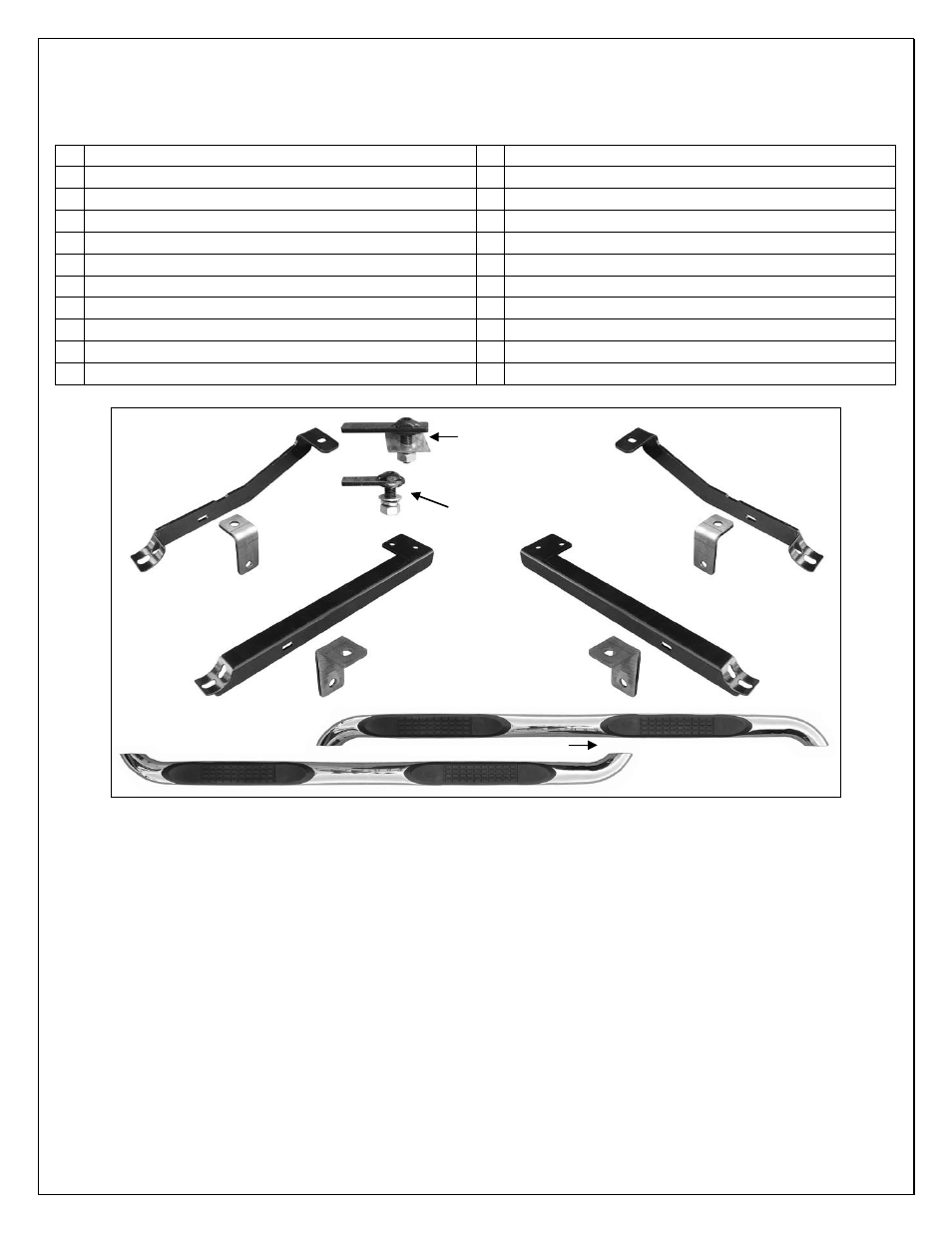

Passenger
Side Front
Mounting
Bracket Driver Side
Front
Mounting
Bracket
Passenger
Side Rear
Mounting
Bracket Driver Side
Rear
Mounting
Bracket (2) 12mm x 40mm Bolt
Plate (long) pictured
w/plastic retainer
(4) 12mm x 45mm
Bolt Plate (short)
Support Bracket
Support Bracket
Support
Bracket Support
Bracket
Driver Sidebar
Passenger Sidebar
Front
