6

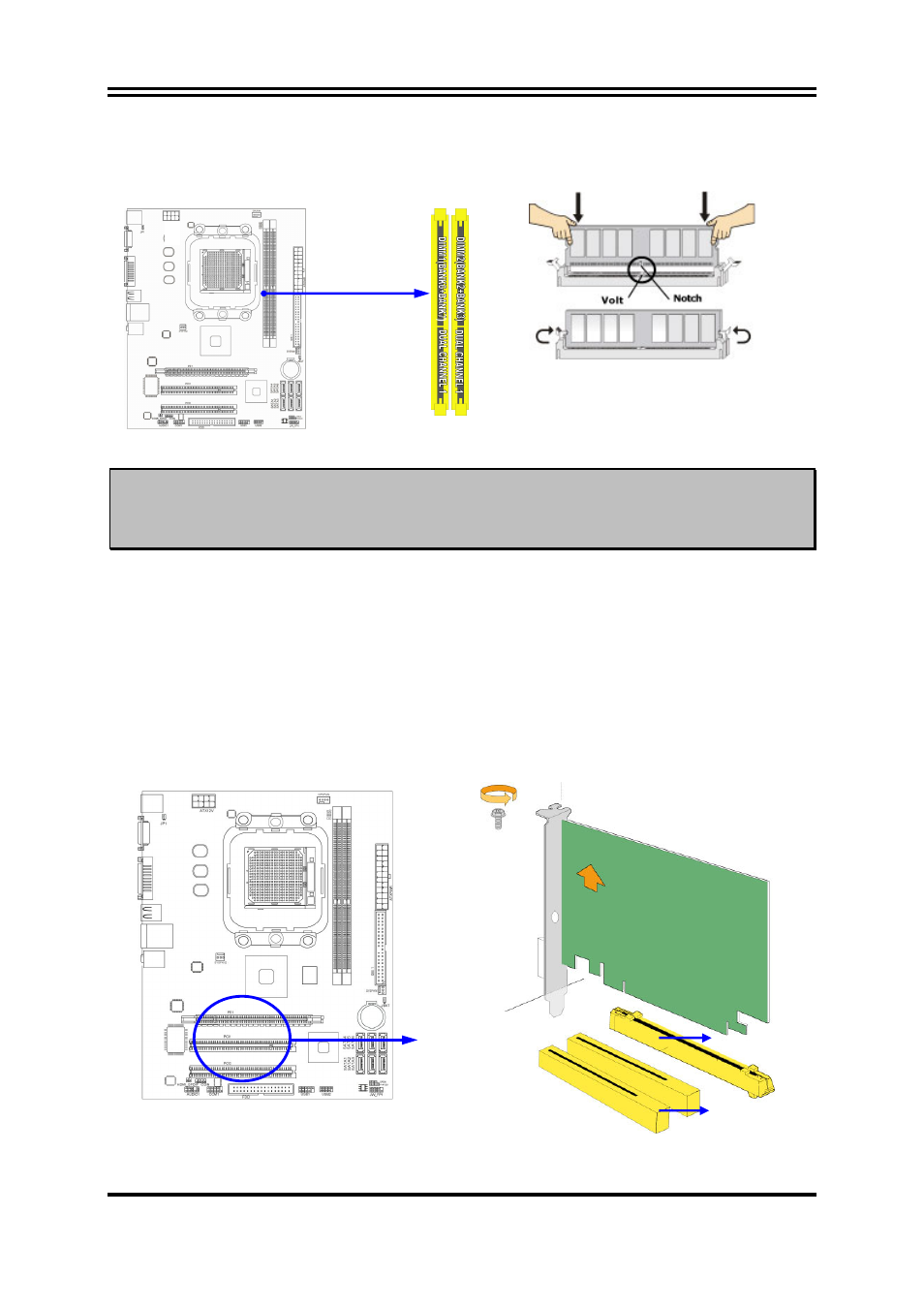

Generally, installing DDRII SDRAM modules to your motherboard is very easy, you can
refer to figure 2-4 to see what a 240-Pin DDR2 1066/800/667 SDRAM module looks like.
NOTE! When you install DIMM module fully into the DIMM socket the eject
tab should be locked into the DIMM module very firmly and fit into its
indention on both sides
2-3 Expansion Cards
The motherboards offer one PCI-Express x16 by 16lane graphics slot of 8Gbyte/sec data
transfer rate at each relative direction which gets 7 times of bandwidth more than AGP 8X
and it’s up to a peak concurrent bandwidth of 16Gbyte/sec at full speed to guarantee the
ultimate GPU computing performance. Two32-bit PCI slots guarantee the rich connectivity
for the I/O of peripherals; the motherboards are designed of tackling the profuse multimedia
requirements nowadays.
PE1 / PCI-E x16 Slot
32-bit PCI Slot
Figure 2-4
