9

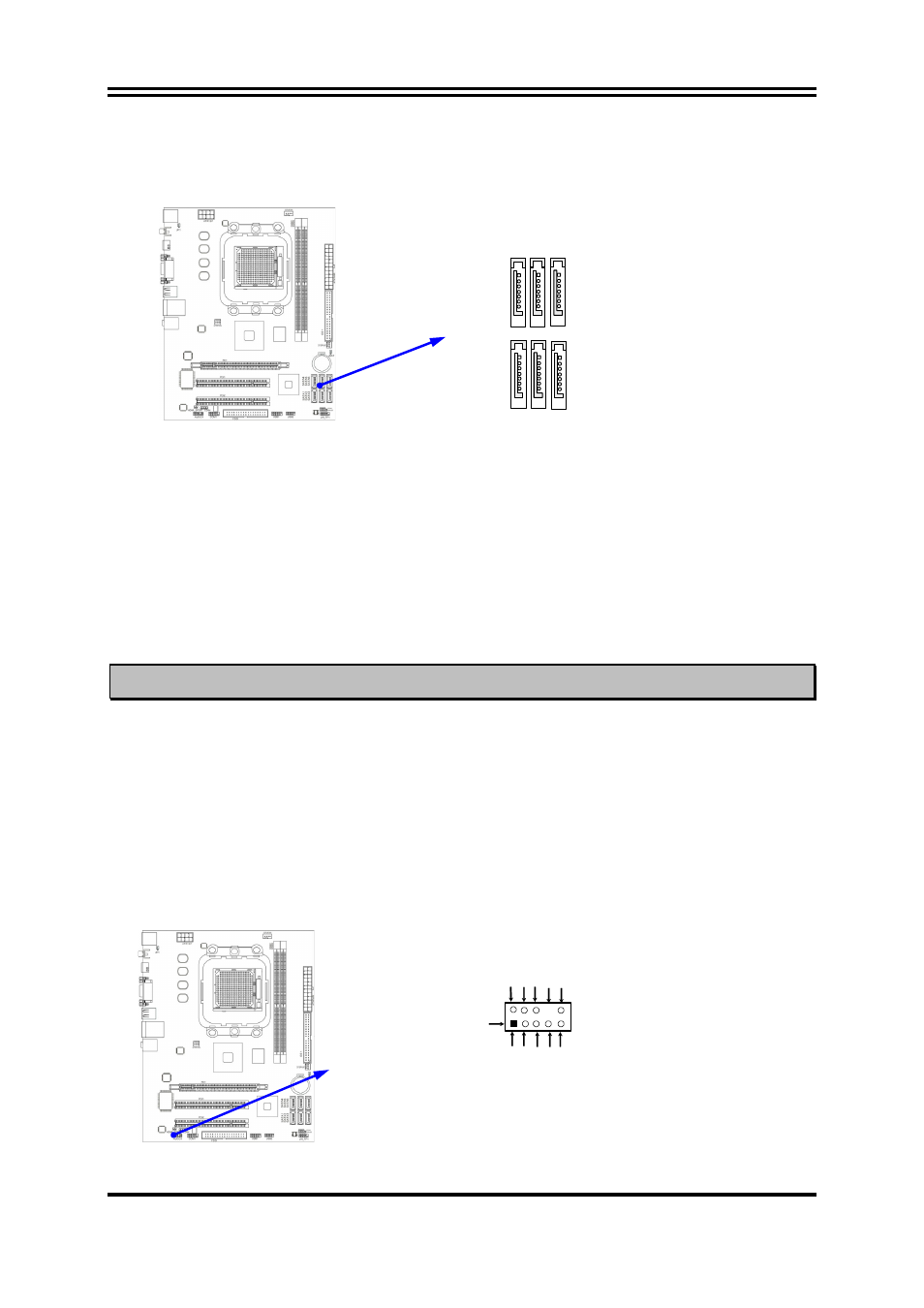

(9) Serial-ATAII Port connector: SATA1~SATA6
These connectors support the provided Serial ATA and Serial ATA2 IDE hard disk cable to
connecting the motherboard and serial ATA hard disk.
(10) D-Sub 15-pin Connector: VGA
VGA is the 15-pin D-Subminiature female connector; it is for the display devices, such
as the CRT monitor, LCD monitor and so on.
(11) Digital Visual Interface: DVI
This interface standard designed to maximize the visual quality of digital display
devices such as flat panel LCD computer displays and digital projectors.
(12) High-Definition Multimedia Interface: HDMI
This point-to-point interface is for audio and video signals designed as a single-cable
solution for home theater and consumer electronics equipment.
NOTE! DVI and HDMI Connector can not be used at the same time.
(13) Coaxial SPDIF_OUT connectors: SPDIF_OUT1
The SPDIF output is capable of providing digital audio to external speakers or
compressed AC3 data to an external Dolby digital decoder. Use this feature only when
your stereo system has digital input function. The board has coaxial and optical
SPDIF_OUT connectors.
3-2 Headers
(1) Line-Out/MIC Header for Front Panel (9-pin): AUDIO
These headers connect to Front Panel Line-out, MIC connector with cable.
Serial-ATA1 & 2 Compatible Connectors
SATA1
SATA2
SATA3
SATA4
SATA5
SATA6
Line-Out, MIC Headers
AUDIO
Pin 1
Li
ne
ou
t2-
L
Li
ne
ou
t2-
R
Se
ns
e-F
B
Aud
io
-G
ND
LI
NE
2-
JD
Au
di
o-J
D
2
9
10
KEY
MI
C2-
L
MI
C2
-J
D
MI
C2-
R
