Wireless HD AV Transmitter & Receiver Kit

1 HDMI OUT: Connect with a Display Device (e.g. LCD, Plasma or LED TV) via HDMI cable.

Note: The display device should have an HDMI IN port.

2 DC IN: Connect with the power supply (enclosed DC 5V Power Adapter).

3 ON/OFF Switch: Power on/off the Wireless Receiver unit.

4 Video Signal Indicator: Indicate that the video signal connection is linked up.

5 Wireless Link Indicator: Indicate that the wireless connection is linked up.

6 Power Indicator: Indicate when the Wireless Receiver Unit is powered on.

7 IR Sensor: IR sensor for receiving IR signal from the Remote Control of your HD media device.

8 Future use.

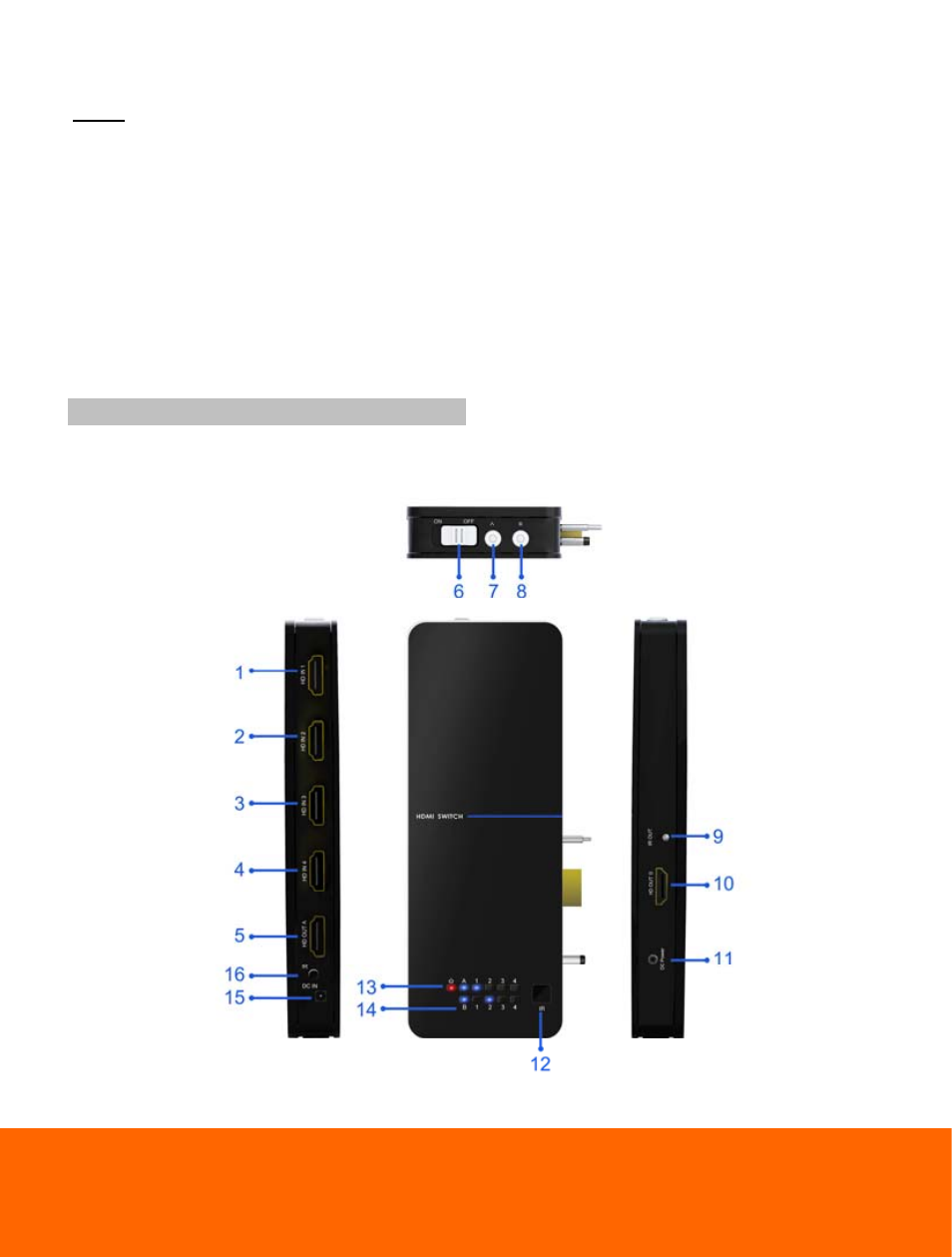

5.3.1 Matrix 4 In 2 Out HDMI Switch

Image 3
