Wireless HD AV Transmitter & Receiver Kit

5. Product Overview

5.1 Wireless HD AV Transmitter Unit

1. IR:

Connect with IR Out port (9 in Image 3) of the HDMI Switch.

Note: If you are not using enclosed HDMI Switch, you can only connect one HD Media Device

with the Transmitter unit: Please connect the IR port with enclosed Infrared Eye Cable and

place the IR flasher close to the IR sensor of the Media Device. Then you can control the

Media Device by using its remote control at the Wireless Receiver side.

2. HDMI

IN:

Connect with HDMI Out B port (10 in Image 3) of the HDMI Switch.

Note: If you are not using enclosed HDMI Switch, please connect this port with your HD Media

Device by HDMI Cable directly.

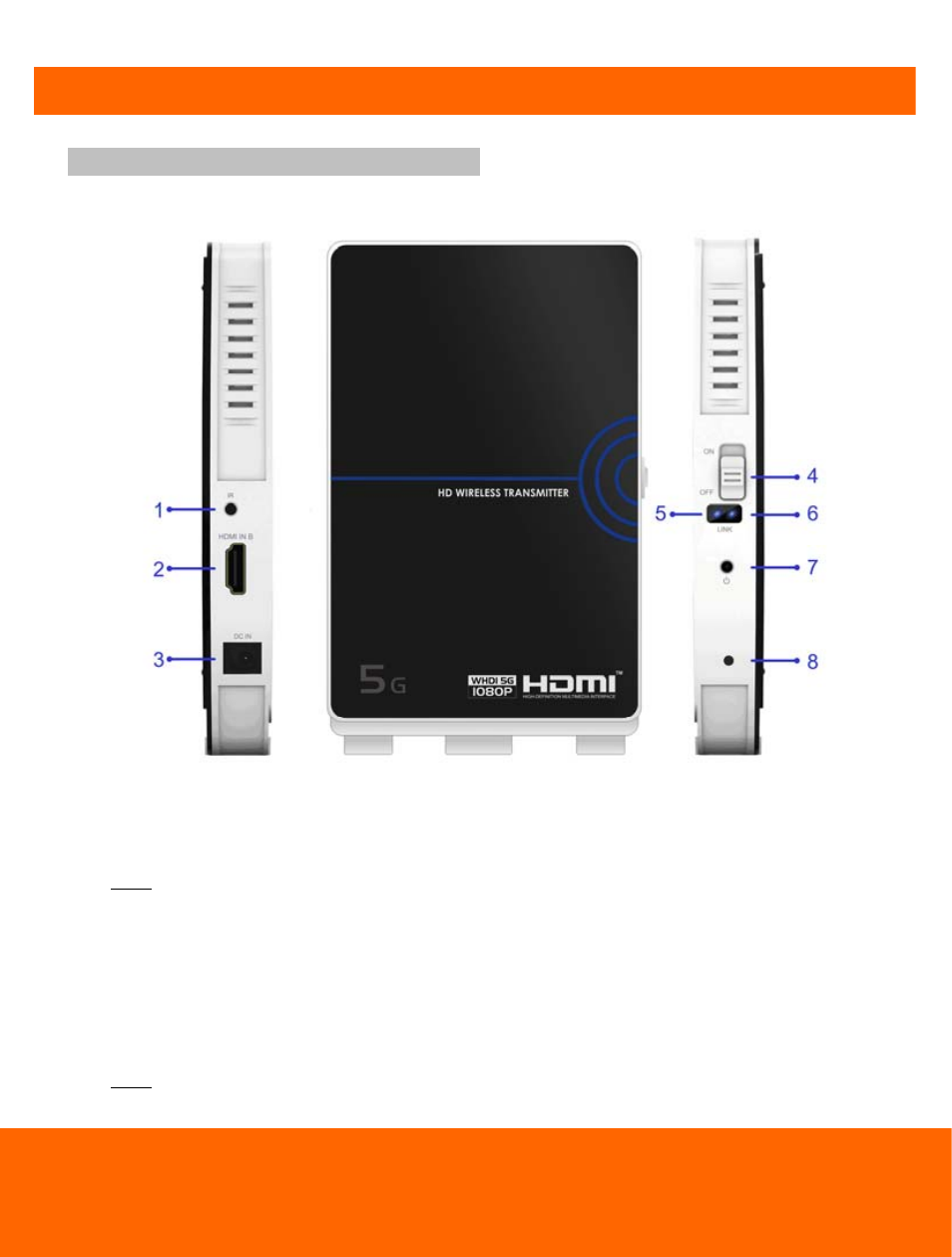

Image 1
