Wireless HD AV Transmitter & Receiver Kit
11

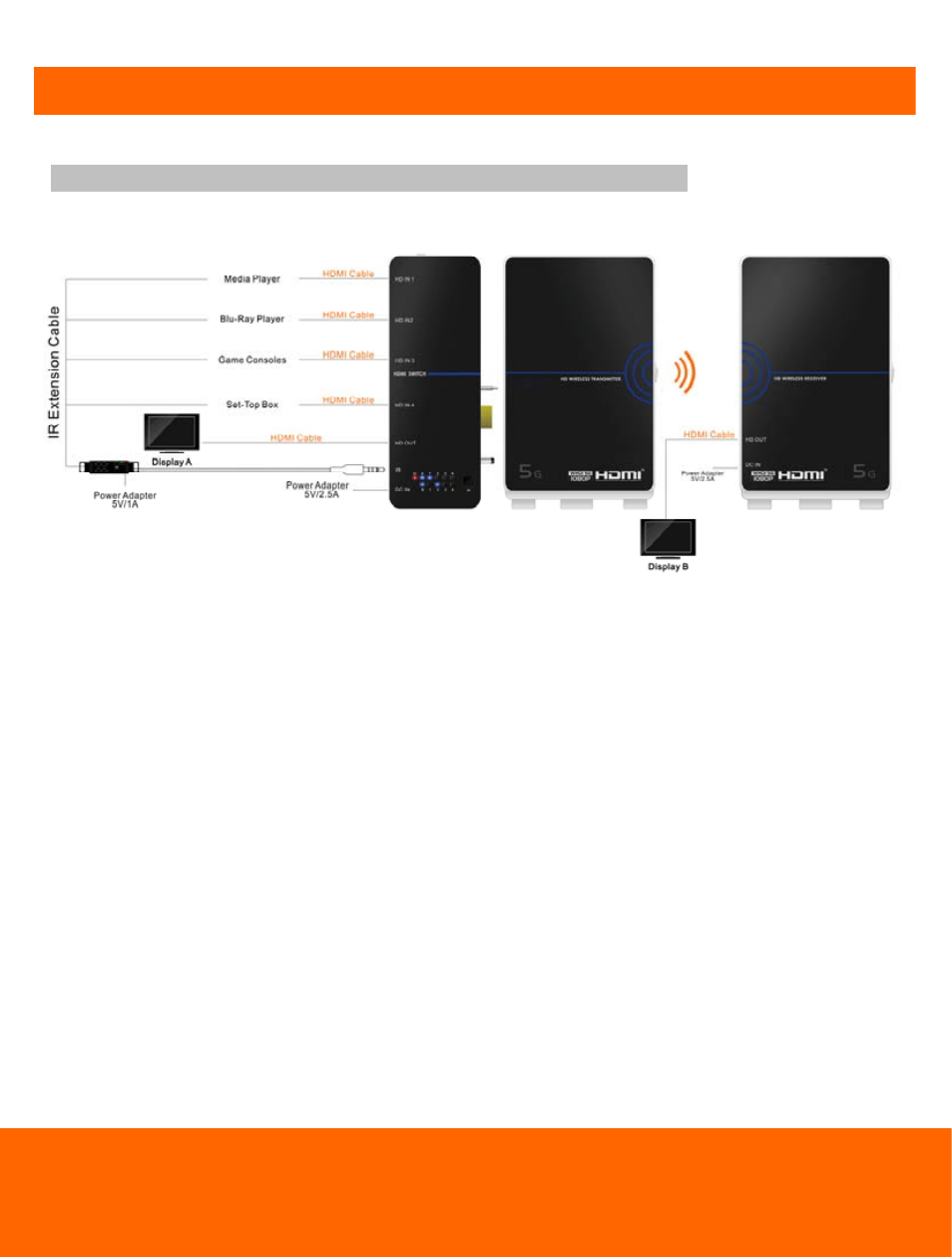

6. Installation Diagram
6.1 Full Package with HDMI Switch and IR Extender Box
Image 6
Installation Diagram for Matrix Display
How to install the Transmitter unit:
 You can connect up to 4 HD media devices with the Wireless Transmitter unit via the
HDMI Switch.
 Plug the HDMI Switch to the Transmitter unit and place them near your HD media devices.
 Connect your HD media devices with the HDMI Switch via HDMI Cables.
 Connect IR Extender Box with your HD media devices via enclosed IR Extension Cables. Please
place the IR flasher on the extension cables close to the IR receivers of your HD media devices.
 Connect the IR Extender Box with the IR port on the Switch.
 You can connect one display device (Display A) with the Switch via the HD OUT port. It can
show video source from HD IN 1 to HD IN 4.
