33
Installation and user manual

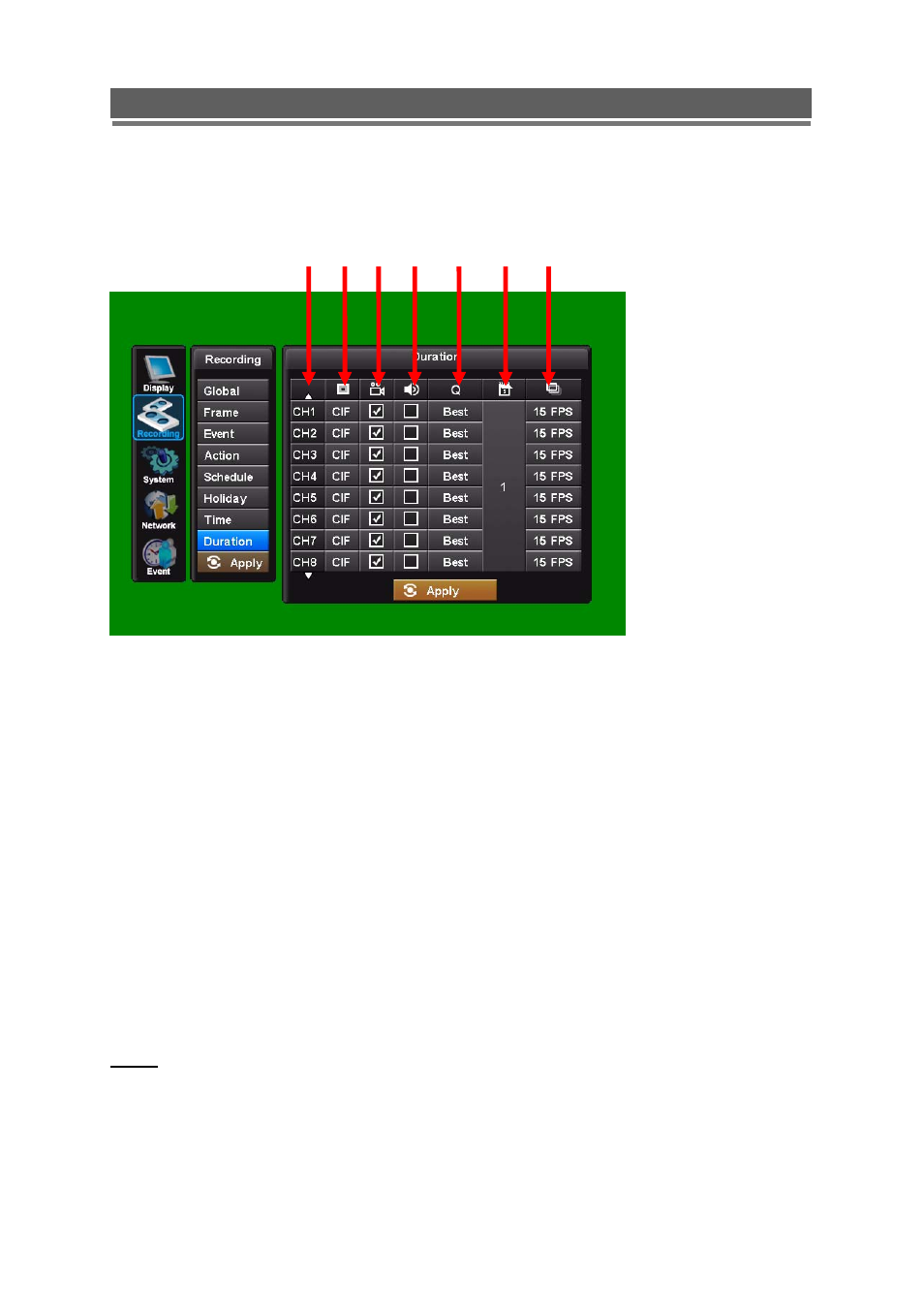

The resolution; whether cameras are active or not and whether audio is being recorded can
each be set per channel. The user then sets the number of days of recording required, then
the E4000 will automatically calculate best record rate to achieve these settings
① Channel
▲ Channel 1~8 ▼ Channel 9~16
② Resolution
Each channel can be individually configured for record rate. (CIF/2CIF/D1)
③ Recording On/Off
Specify whether to record a video or not for each camera.
④ Audio recording On/Off
Specify whether to record an audio or not for each camera.
⑤ Quality
Specify the record quality for each camera. (Good/Standard/Best)
⑥ Duration
Specify how many days DVR will record on the HDD.
⑦ Recording FPS
It is changed automatically by the duration value.
NOTE:
If the duration recording is in set, all the frame menu settings will be returned to the factory
default.
① ② ③ ④ ⑤ ⑥ ⑦
