27
Installation and user manual
be set to 0, 5, 10, 15 or 20 seconds

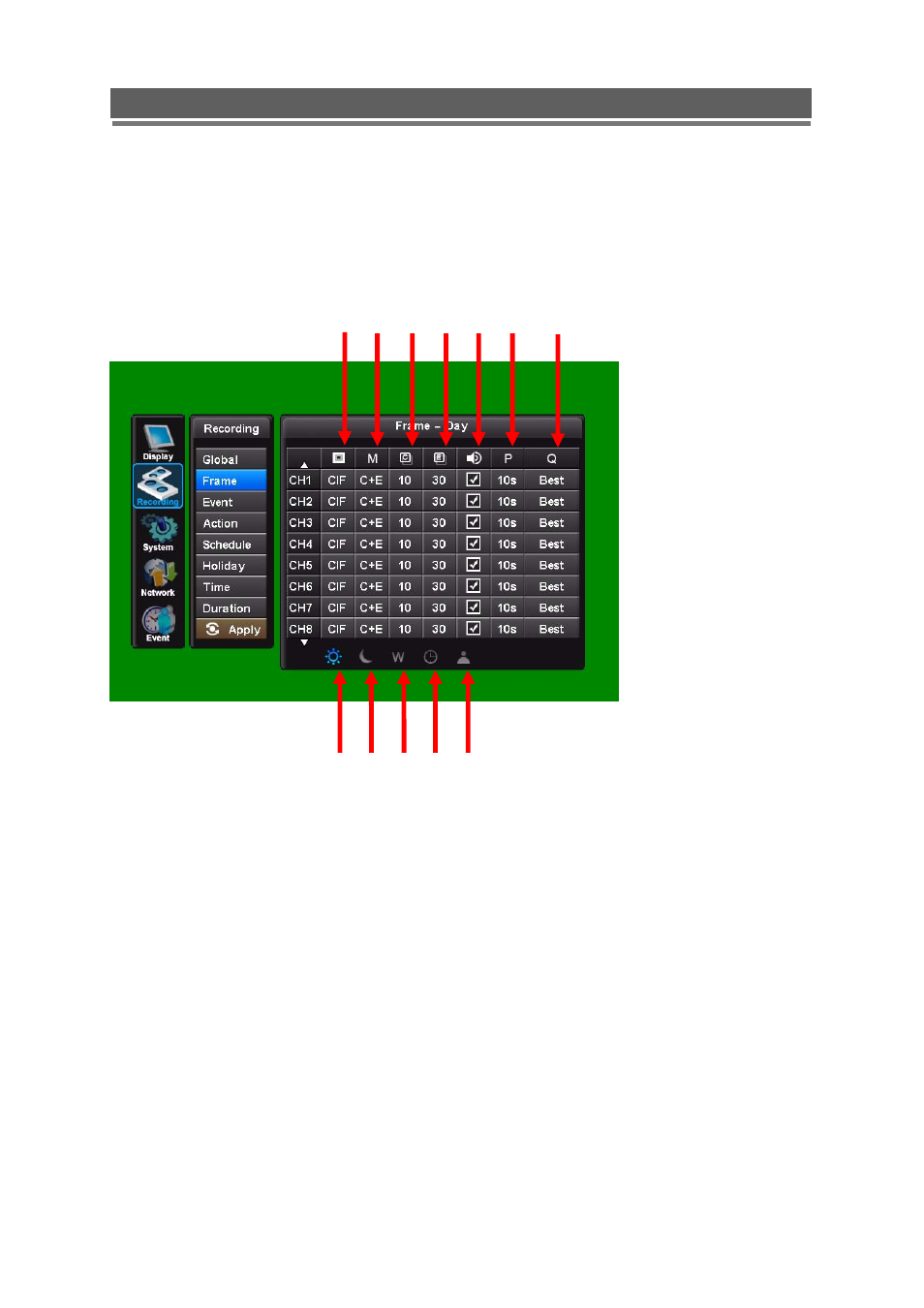

[ Frame ]
This configures the FPS for each schedule – Day/ Night/ Weekend & Holiday/ Time/ Instant
recording.
In Schedule Setup, users can define the recording schedule :
① Day
② Night
③ Weekend/Holiday
④ Time
⑤ Instant Recording
Configure the FPS for each schedule – Day / Night / Week(Holiday) / Time / Instant
⑥ Resolution
Each channel can be individually configured for record rate.
In CIF (360x288), 25 fps is available to each channel (total 400fps).
In 2CIF (720x288), 12.5 fps is available to each channel (Total 200fps).
In D1 (720x576), 6.25 fps is available to each channel (Total 100fps).
⑥ ⑦ ⑧ ⑨ ⑩ ⑪ ⑫
① ② ③ ④ ⑤
