Installation and user manual

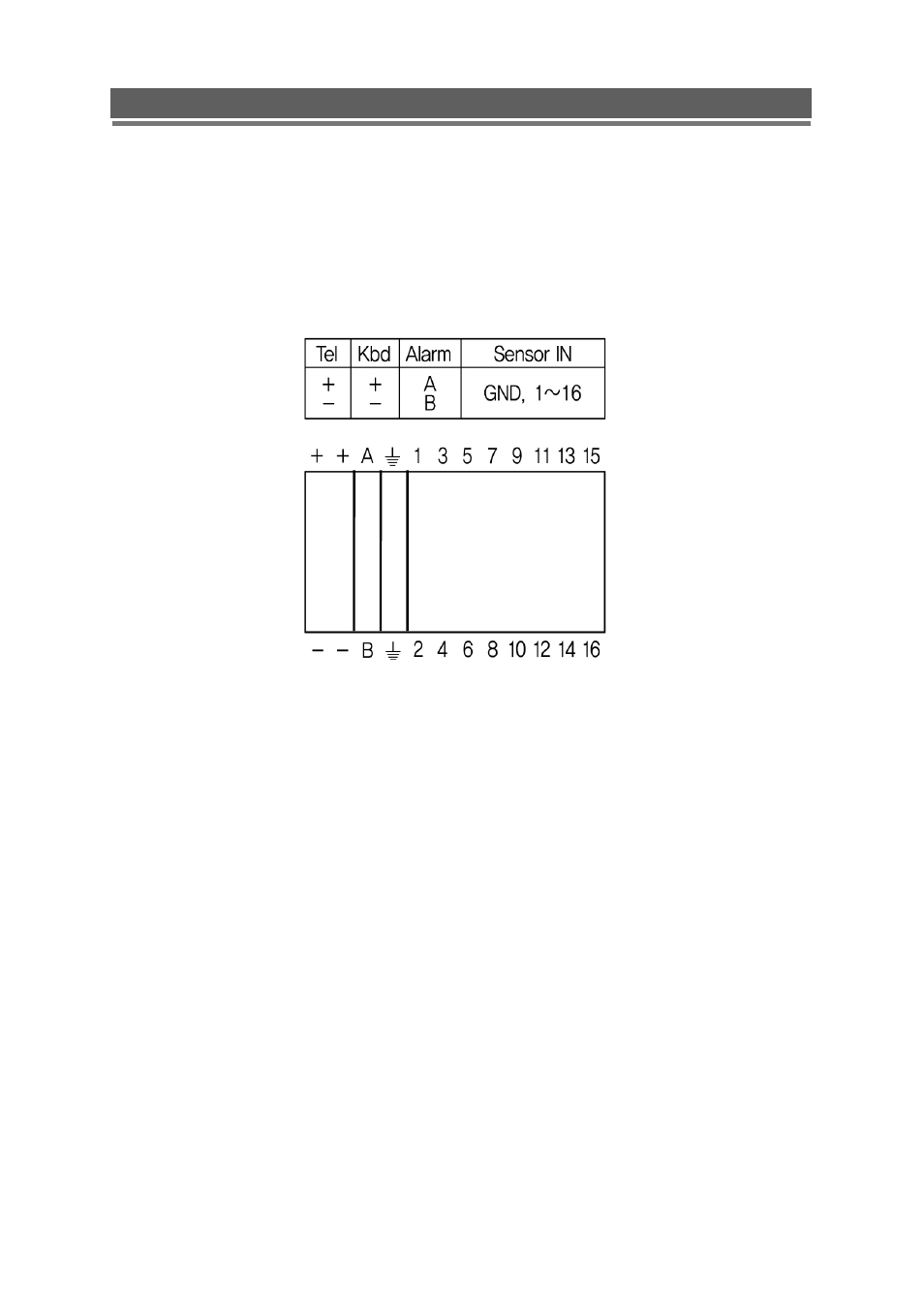

Alarm Connections
The Alarm connections are made via the push in connectors on the rear on the unit. There are 16
individual alarm inputs marked as Sensor In (1-16) and 2 Outputs marked as Alarm, plus 2 ground
connections. As shown below:
