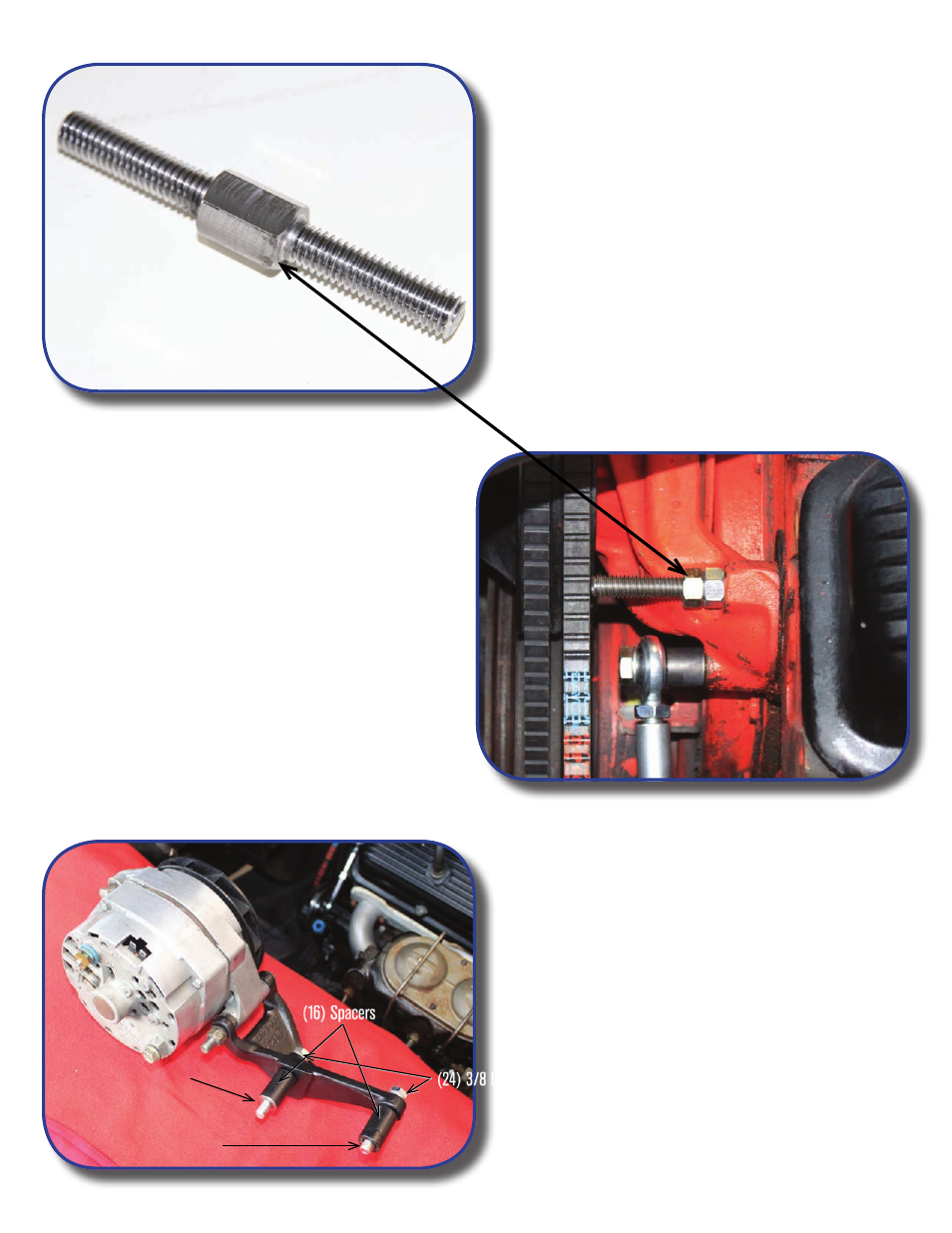

7) Install the double water pump stud (22) (shown left) into the
top mounting hole on the water pump.

8) Install the alternator onto the alternator mounting bracket.
Place the bolts and new mounting spacers onto the alternator
mounting bracket as shown.

(14) 3/8-16x2.75

(13) 3/8-16x2.25

(16) Spacers

(24) 3/8 Lock washers
