Flaming River FR312PK Corvette Power Steering Pump Kit User Manual
Page 4
4) Mount the power steering pump to the bracket using two
M8x1.5 (7) bolts and washers (8).

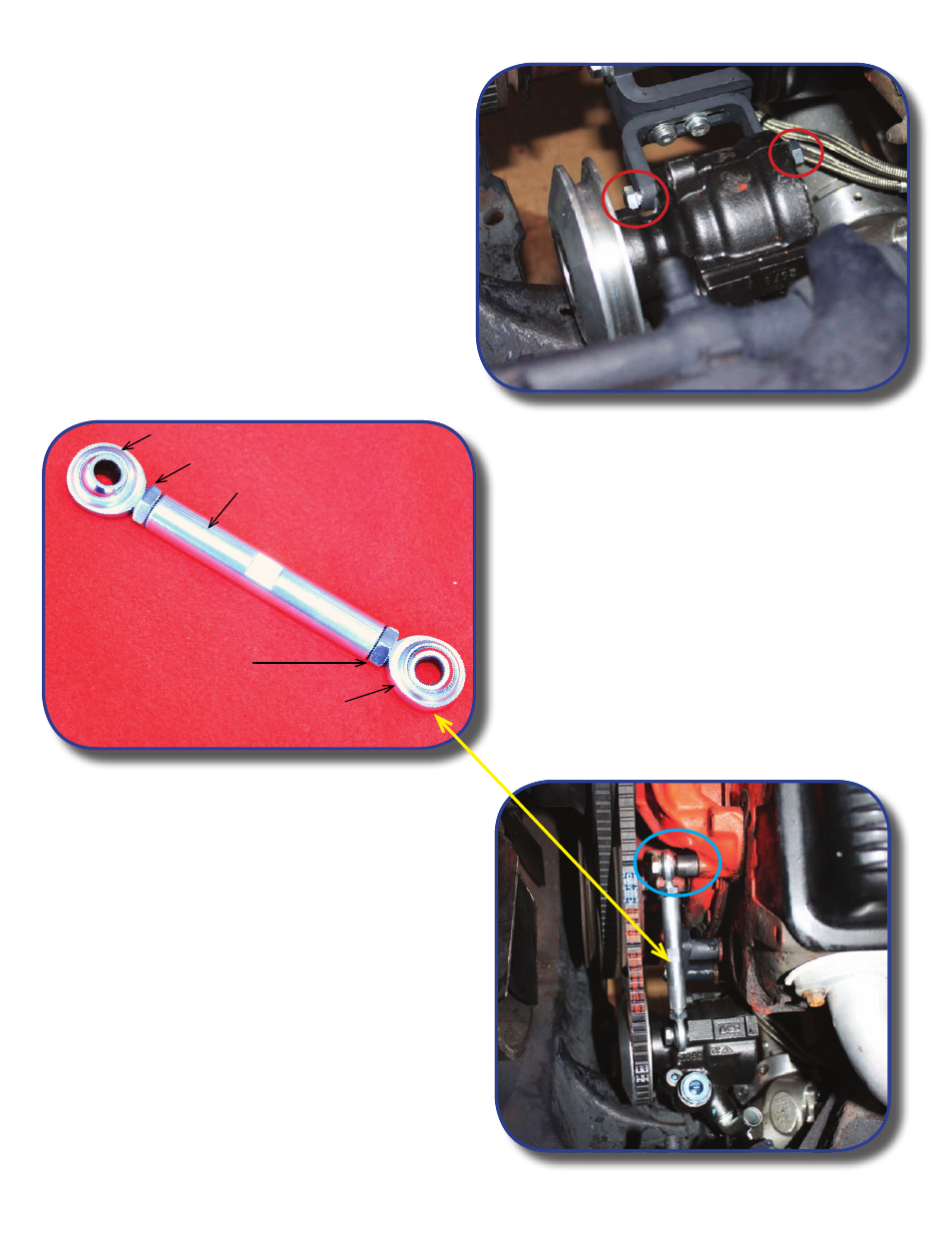

5) Assemble the power steering pump adjuster as shown.
6) Mount the power steering pump adjuster to the top of the
power steering pump and then using the 3/8-16x2.5 (13) bolt,
washer (26) and spacer (18) provided to the lower water pump
mounting bolt.
(5) Heim Joint 3/8-24 RH
(10) Jam Nut 3/8-24 RH
(20) Adjuster
(9) Jam Nut 3/8-24 LH
(6) Heim Joint 3/8-24 LH
