Thunderbird Rack & Pinion System
Page 10 of 13
Flaming River Ind. 800-648-8022
Modified on 02/06/08
JJ/RD/BC
Connecting Electrical System

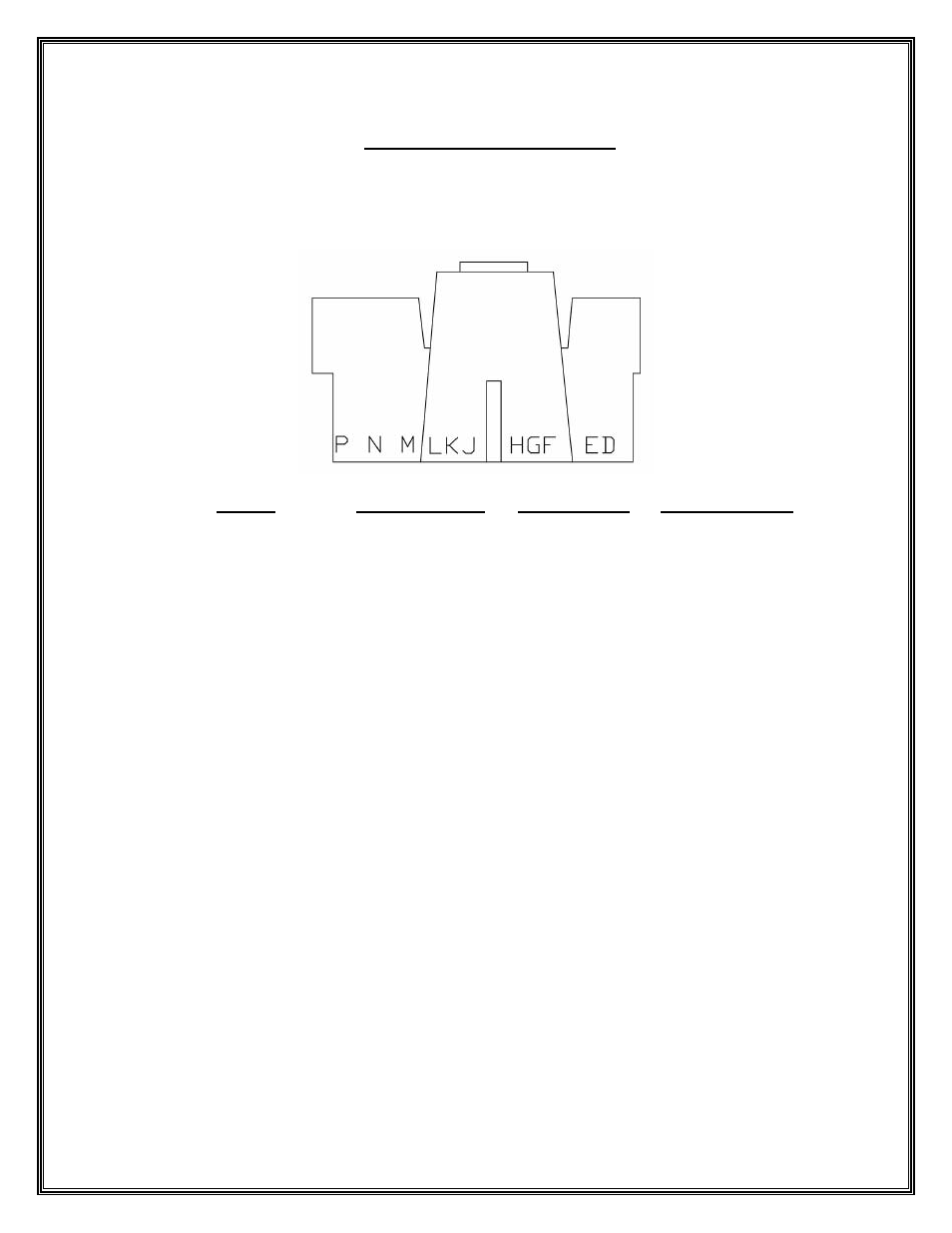

1) Install the wiring adapter that is included in the kit following the diagram below or refer to the wring
verification chart that was done before disassembly.
Circuit Vehicle
Wiring Pin
Location Column
Wiring
Brake Light Switch
Green
P
White
R/R Turn Sign Signal
Orange - Blue
N
DK Green
L/R Turn Signal
Green - Orange
M
Yellow
Turn Signal Power
Blue
L
Purple
Hazard Power
N/A
K
Brown
R/F Turn Signal
White- Blue
J
DK Blue
L/F Turn Signal
Green - White
H
LT Blue
Horn
Yellow - Green
G
Black
