Flaming River FR312KT 63-82 Corvette Rack User Manual
Page 7
- 6 –
11/28/2005
Universal Joint System Con’t

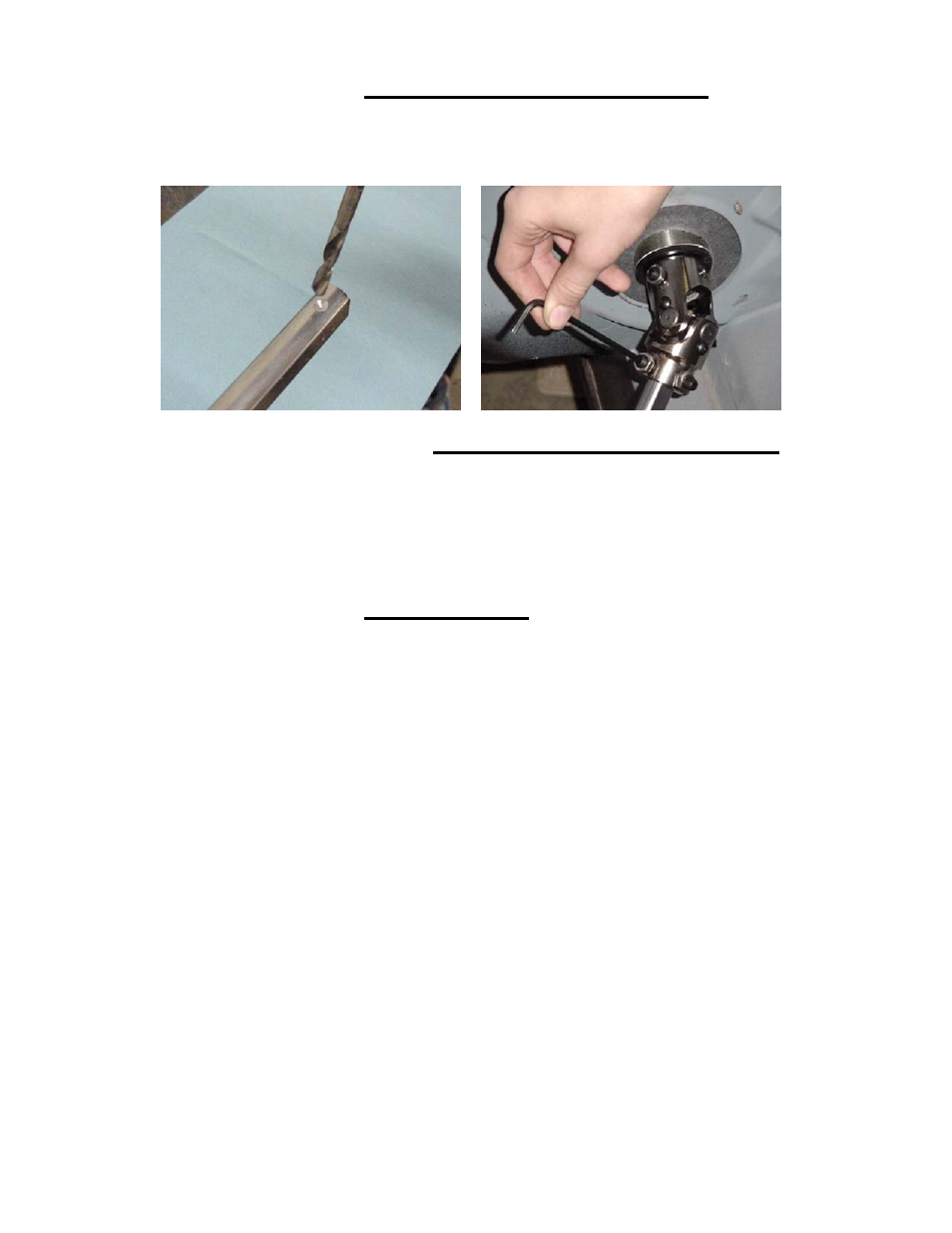

8) Remove shaft and dimple each setscrew mark using a ¼” drill bit.
(As shown below.)
9) Re-install the shafts using high strength (red) thread locker on
the set screw threads. Tighten each setscrew to 25 ft.-lbs. tighten
all lock nuts securely. We recommend that you Inspect setscrews
periodically for tightness.
Torque Specs
Cradle to Frame Mounting Bolts
45-50 ft lbs
Outer Tie Rod Ends to Spindle
30-40 ft lbs
Universal Joint Set Screws
25 ft-lbs
