- 5 –
11/28/2005
Universal Joint System

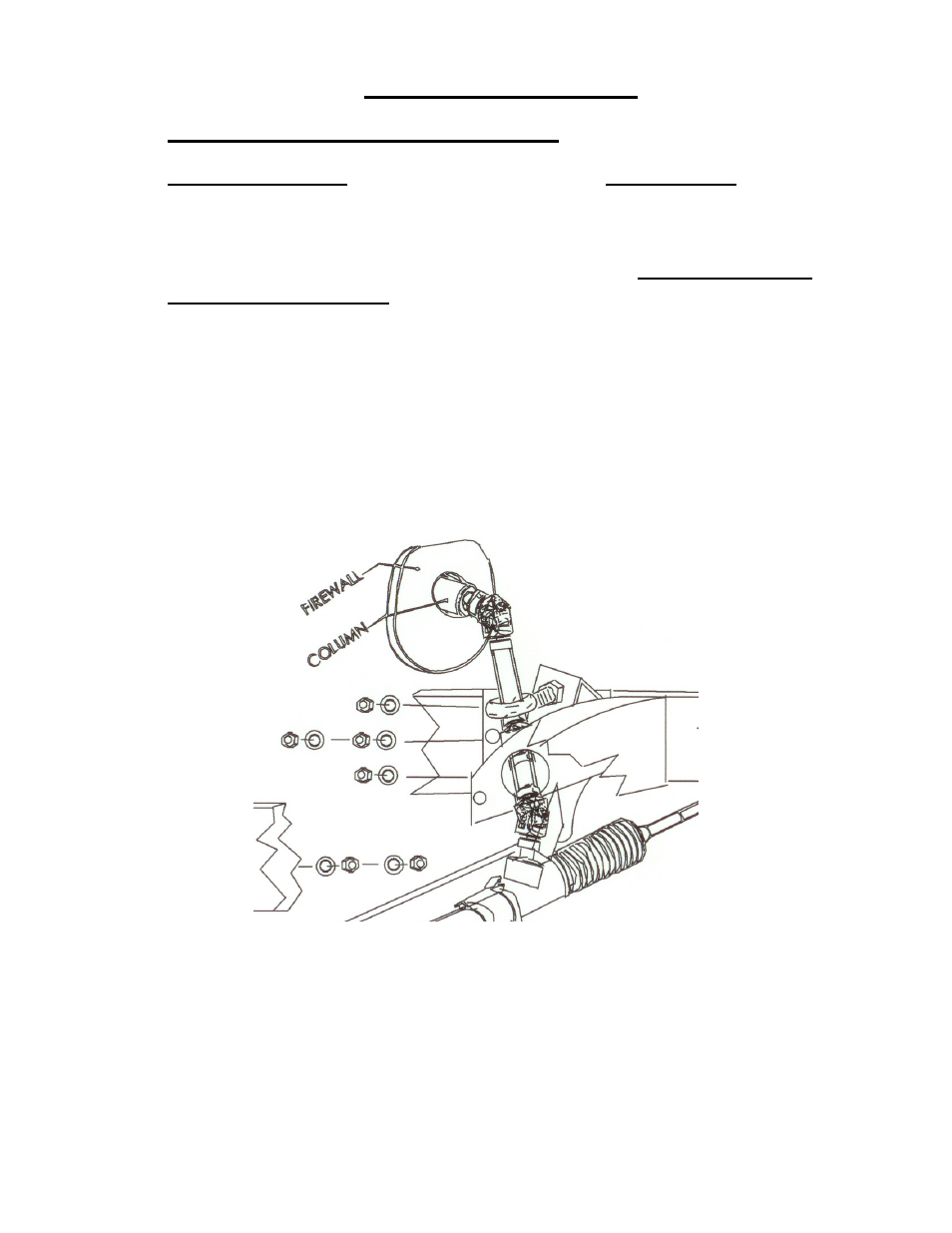

1) Remove the template on the last page.
2) Cut out template along the solid line and cut out hole for the
motor mount bolt.
3) Place cut out template on the engine support bracket aligning the
motor mount bolt hole on the motor mount bolt. Template should
be facing the firewall.
4) Center punch the “X” in the large hole on the template and then
cut out the hole using the hole saw in the kit.
5) Install support-bearing mount onto a cradle mounting bolt. Note:
The angle of this mount is set for most applications. Some
adjustment may be necessary for the correct angle and u-joint
alignment.
6) We recommend the use of ¾” dowel rod to mock up the steering
shaft to obtain the correct length before you cut the steel DD shaft.
7) Install your shaft kit and snug each set screw so that it will leave a
mark in the shafts.
