Assembly instructions – Yetter 2984 Series Generation II Maverick Opener User Manual
Page 9
9
ASSEMBLY INSTRUCTIONS

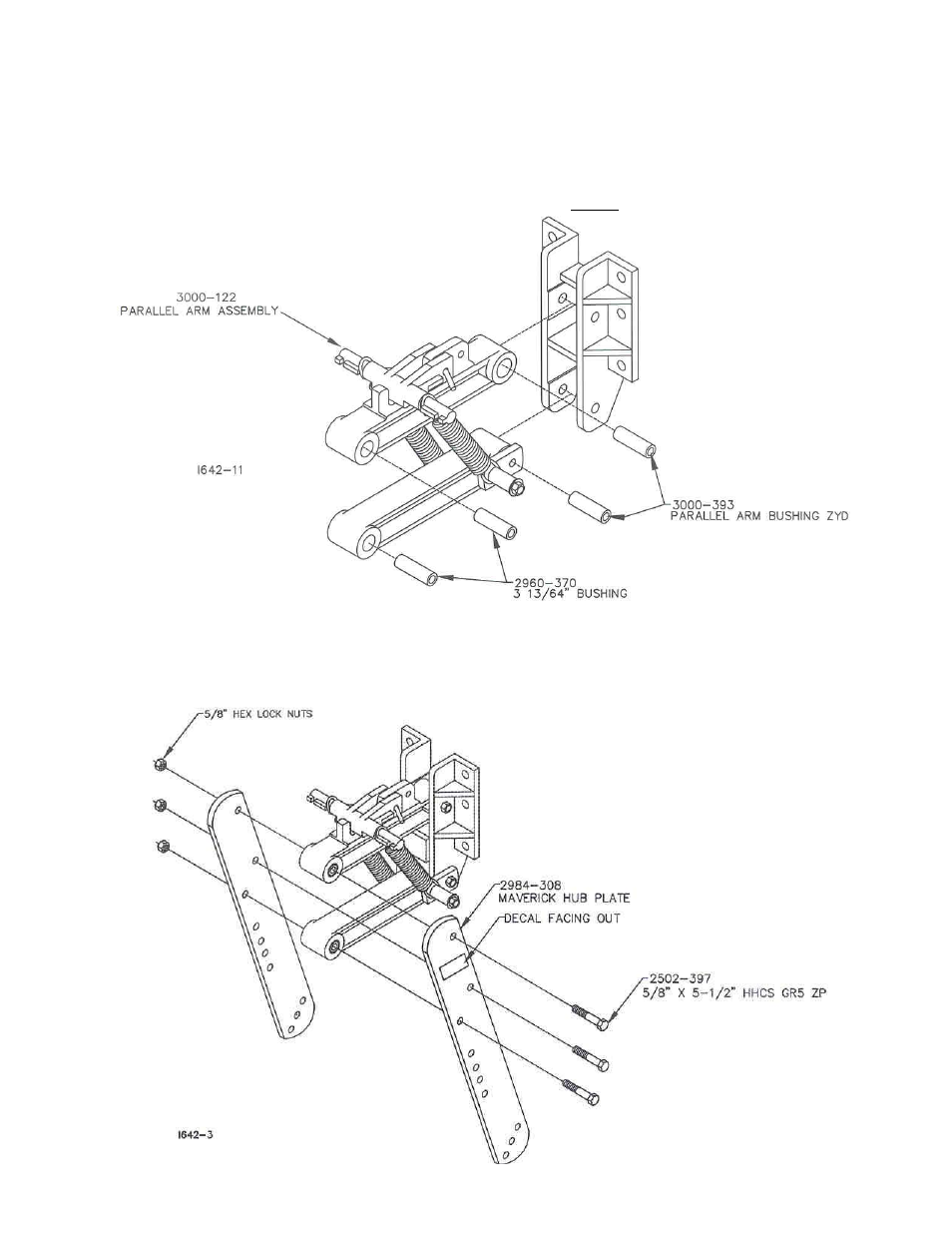

STEP 3. Insert the 2960-370 - 3 13/64” spacer bushings into the parallel arms of 3000-122 parallel arm
assembly.
IMPORTANT!!!!!! Apply never-seize lubricant to the bushings before using the Maverick Opener
.
STEP 4. Insert 3) 2502-397 – 5/8” X 5 ½” bolts through the hub plate 2984-308 (decal should face out from
center of the row) and attach to the parallel arm assembly. Place the second hub plate 2984-308 onto the
5/8” bolts. Install the 5/8” lock nuts, do not fully tighten at this time.
