Yetter 2984 Series Generation II Maverick Opener - Manual (Page 13)

13

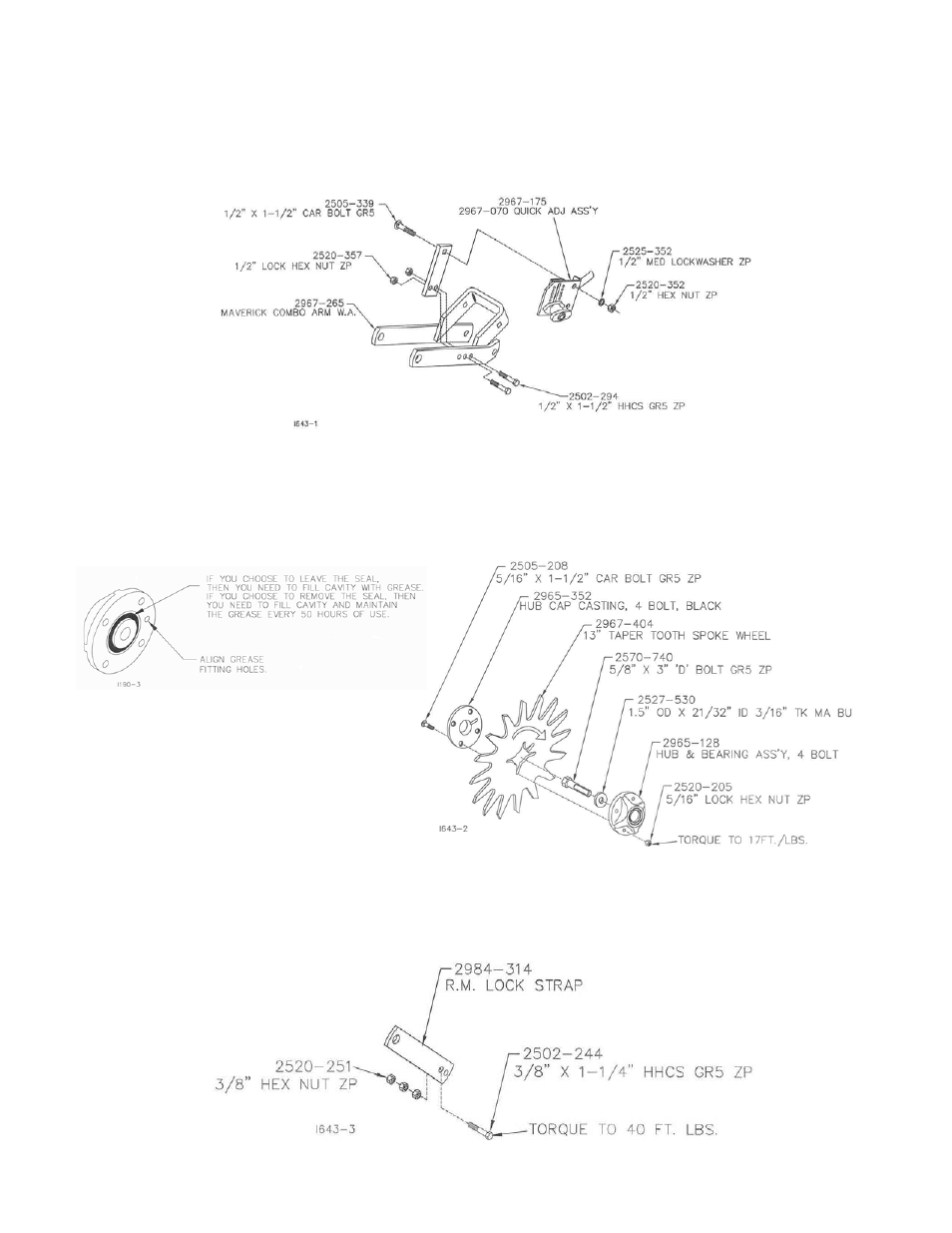

ASSEMBLY INSTRUCTIONS
2984-003 – RESIDUE MANAGER
STEP 1. Mount the 2984-313 quick adjust mount plate to the 2967-265 combo arm using 2) ½” x 1 ½” bolts
and lock nuts. Mount the 2967-175 quick adjust assembly to the 2984-313 mount plate using 1) ½” x 1 ½”
carriage bolt , ½” lock washers and ½” lock nuts.
STEP 2. Assemble the residue manager spoke wheel (2967-404) to the 2965-352 hub cap and the 2965-
128 hub/bearing assembly. Insert the 3” D-bolt through the 1.50 O.D. x 21/32” I.D. x 3/16” thick flat washer,
then through the hub/bearing assembly. Use 4) 5/16 x 1 ½ carriage bolts and 5/16-18 lock nuts per wheel.
NOTE: Assemble one spoke wheel as a right hand wheel rotation and one spoke wheel as a left hand
wheel rotation.
IMPORTANT. The 2527-530 washer must be installed or the wheel and hub assembly will fall off
during use.
NOTE: Be certain to align the grease zerk with the slot in the wheel and the hub cap so that the grease can
flow freely.
STEP 3. Assemble the 3/8” x 1 ¼” bolt to the 2984-314 lock strap using 3) 3/8 hex nuts. Torque to 40
ft./lbs.
