ASSEMBLY INSTRUCTIONS

2984-003 – RESIDUE MANAGER

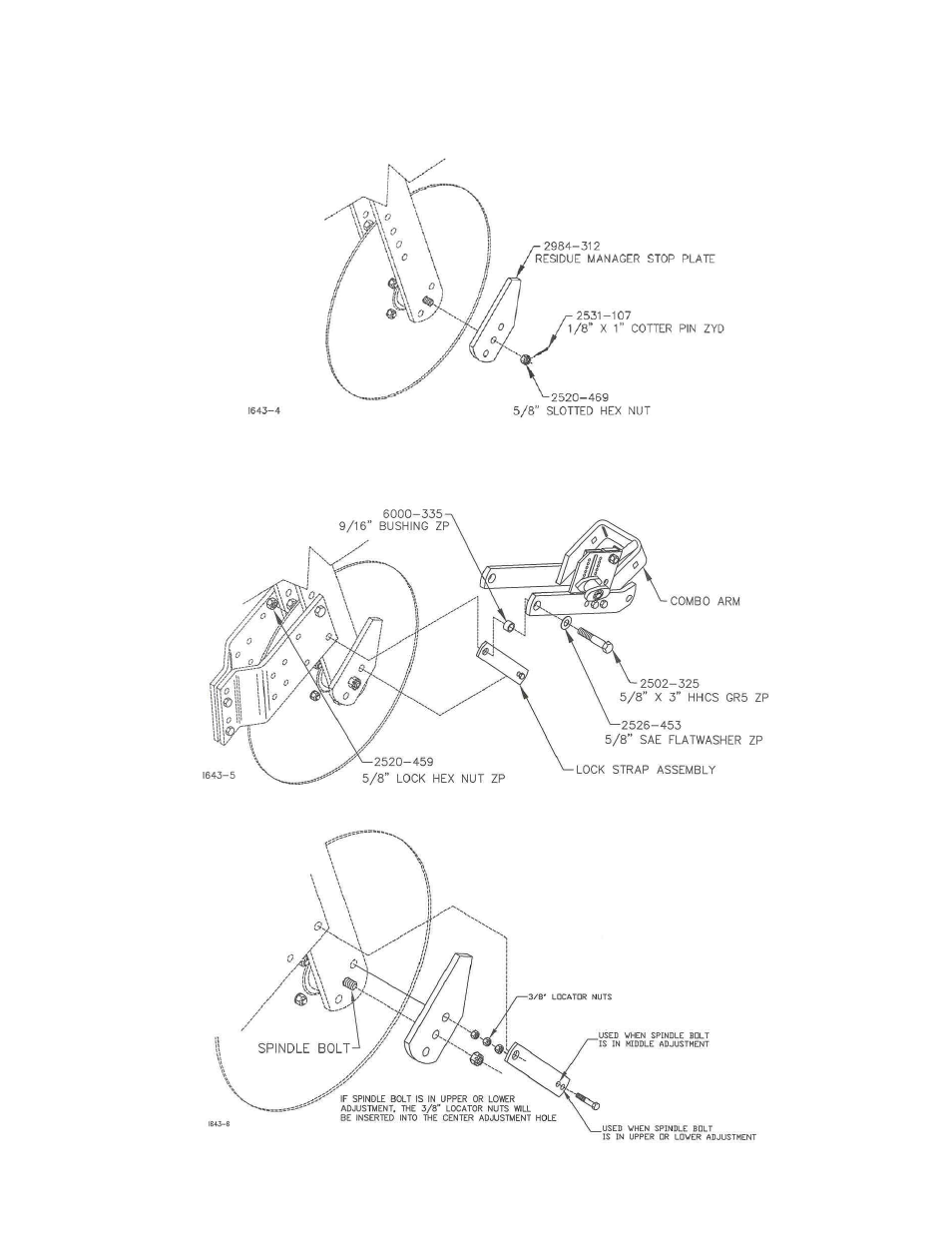

STEP 4. Assemble the 2984-312 stop plate onto the spindle bolt. The stop plate replaces the ¼” thick flat
washers. Install the castle nut, torque to 13-15 ft. lbs. and install the 1/8” x 1” cotter pin.

STEP 5. Attach the 2967-265 combo arm to the opener. On the right hand side, insert a 5/8” x 3” bolt
through 5/8” flat washer, 9/16” bushing, combo arm, lock strap assembly and the lower hole of the R.H.
knife mount and secure with 5/8” lock nut.

NOTE: The position of the 3/8” locator nuts of the lock strap assembly into the hole of the stop plate will
depend on which hole the spindle bolt is in. SEE BELOW.
