Assembly instructions – Yetter 2984 Series Generation II Maverick Opener User Manual
Page 17
17
ASSEMBLY INSTRUCTIONS
2984-004 – DEPTH CONTROL KIT

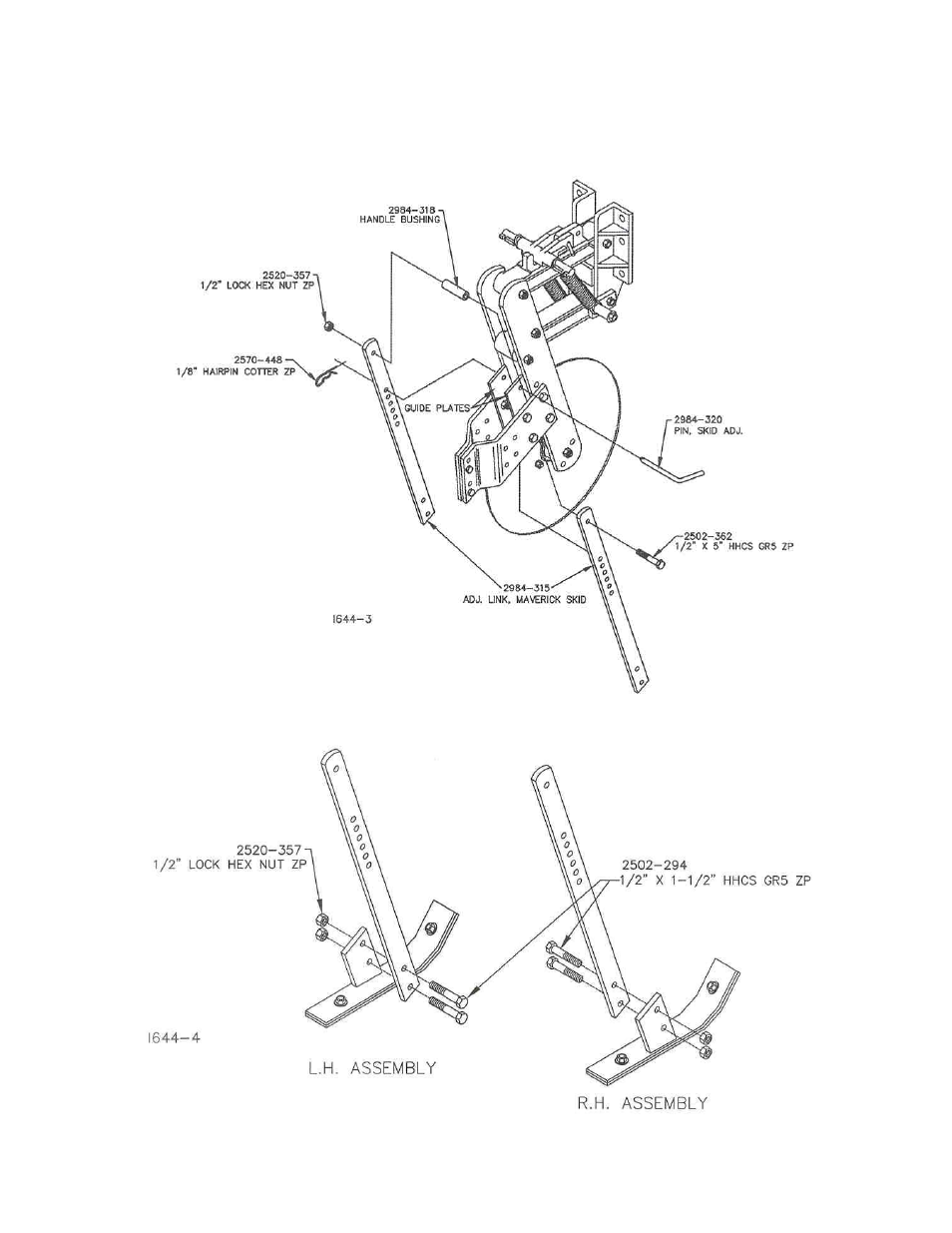

STEP 3. Slide the 2984-315 adjustment links between the knife mount plate and the guide plates. Insert
the 2984-320 adjustment pin and the 1/8” hairpin. Bolt the adjustment links together using 1) ½” x 5” bolt,
2984-318 handle bushing and ½” lock nut.
STEP 4. Attach the skid shoe assemblies to the adjustment links using 4) ½” x 1 ½” bolts and lock nuts.
NOTE: Assemble with the head of the ½” bolt to the inside.
