ASSEMBLY INSTRUCTIONS
2984-009 – SEALING WHEEL KIT

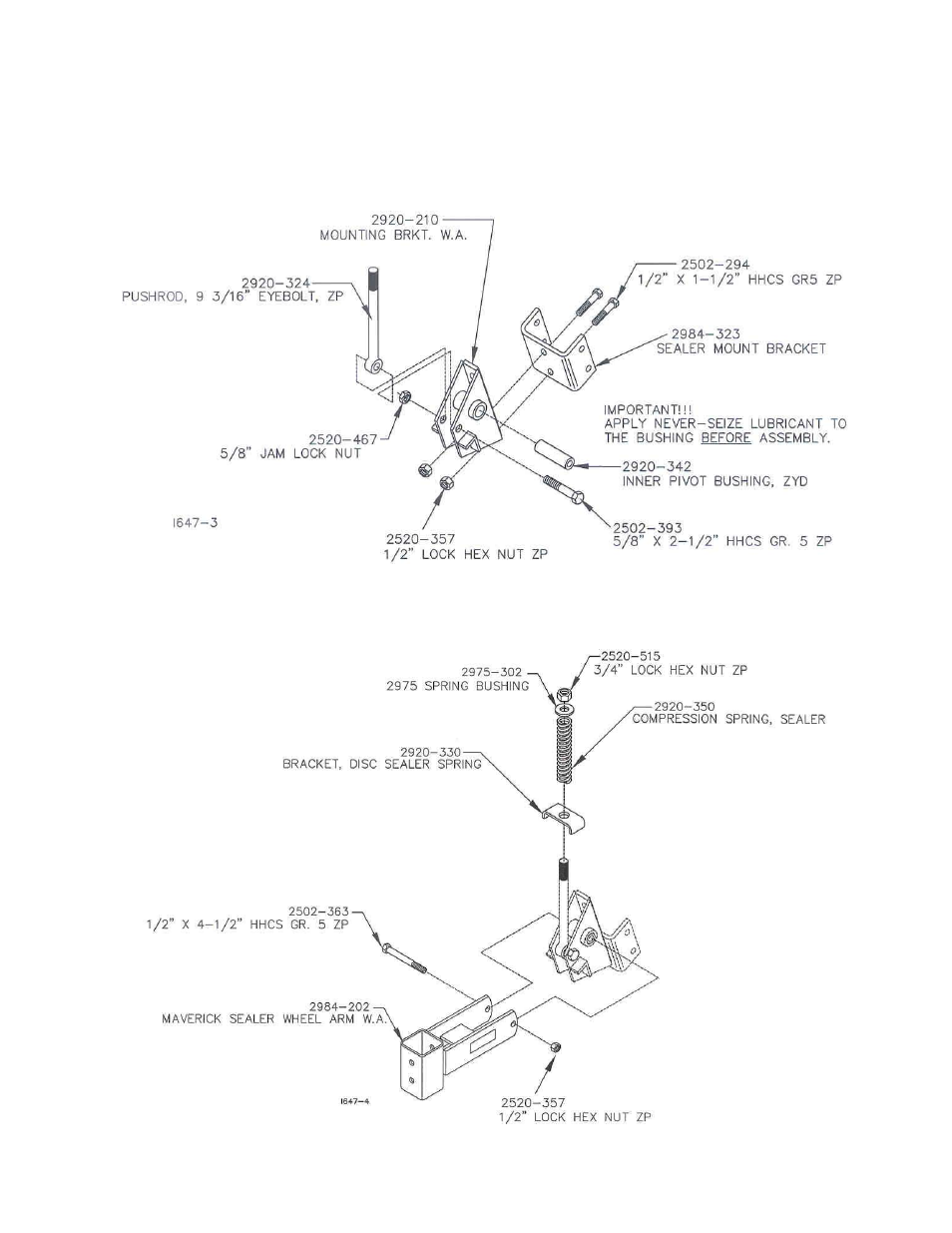

STEP 3. Attach 2920-210 mounting bracket to the 2984-323 sealer mount bracket using 2) ½” x 1 ¼” bolts
and ½” lock nuts. Attach the 2920-324 pushrod to the 2920-210 mounting bracket using 1) 5/8” x 2 ½” bolt
and 5/8” jam lock nut. Insert 2920-342 pivot bushing into the 2920-210 mounting bracket – lubricate with
anti-seize.
STEP 4. Attach the 2984-202 sealer wheel arm to the mounting bracket using 1) ½” x 4 ½” bolt and ½”
lock nut. Next, assemble the 2920-330 pushrod bracket , 2920-350 spring, 2975-302 spring bushing and
¾” lock nut onto the pushrod.
