Caution, Intermediate front servo fig. #2, Fig. #1 – Turbo Action 24141 Turbo Hydro 400 Manual Valve Body (PRN123) User Manual
Page 3: Selector lever, Rear servo fig. #3, 1971-up
Part #24141
3
1/78,6/99,3/03,3/06

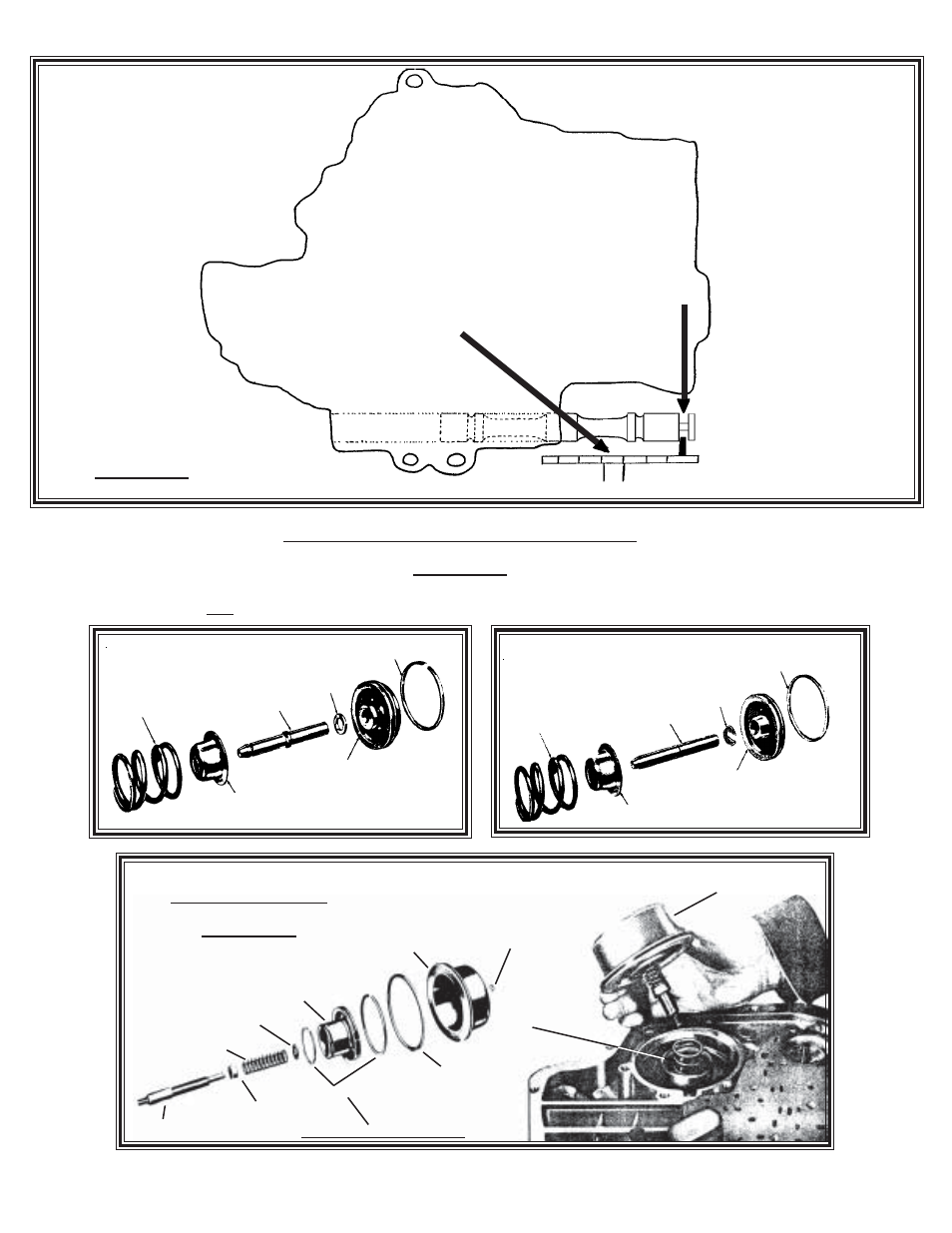

Intermediate Front Servo
Fig. #2
Sometimes the Intermediate Front Servo will fall out when lowering the spacer plate. NOTE: Intermediate
Front Servo parts will not be reinstalled.
Fig. #1
CAUTION
Be sure that Manual Control Valve
lines up with selector lever pin.
Selector Lever
Servo Spring
Washer
Retaining
“E” Ring
Servo Piston
Accumulator Piston
Servo Pin
Spring Retainer
Oil Seal Rings (Remove)
Servo Oil Seal
Remove these items
Rear Servo Assembly
Reinstall
Rear Servo
Spring
Rear Servo
Fig. #3
Teflon Oil Seal Ring
Servo Piston
1971-Up
Servo Spring Servo Pin
Retainer Ring
Spring Retainer
1965-70
Servo Spring
Servo Pin
Washer
Oil Seal Ring
Spring Retainer
Servo Piston
