ASSEMBLY

INTERSTATER 03/09

Assembly Section 3-23

© 2009 Alamo Group Inc.

ASSEMBL

Y

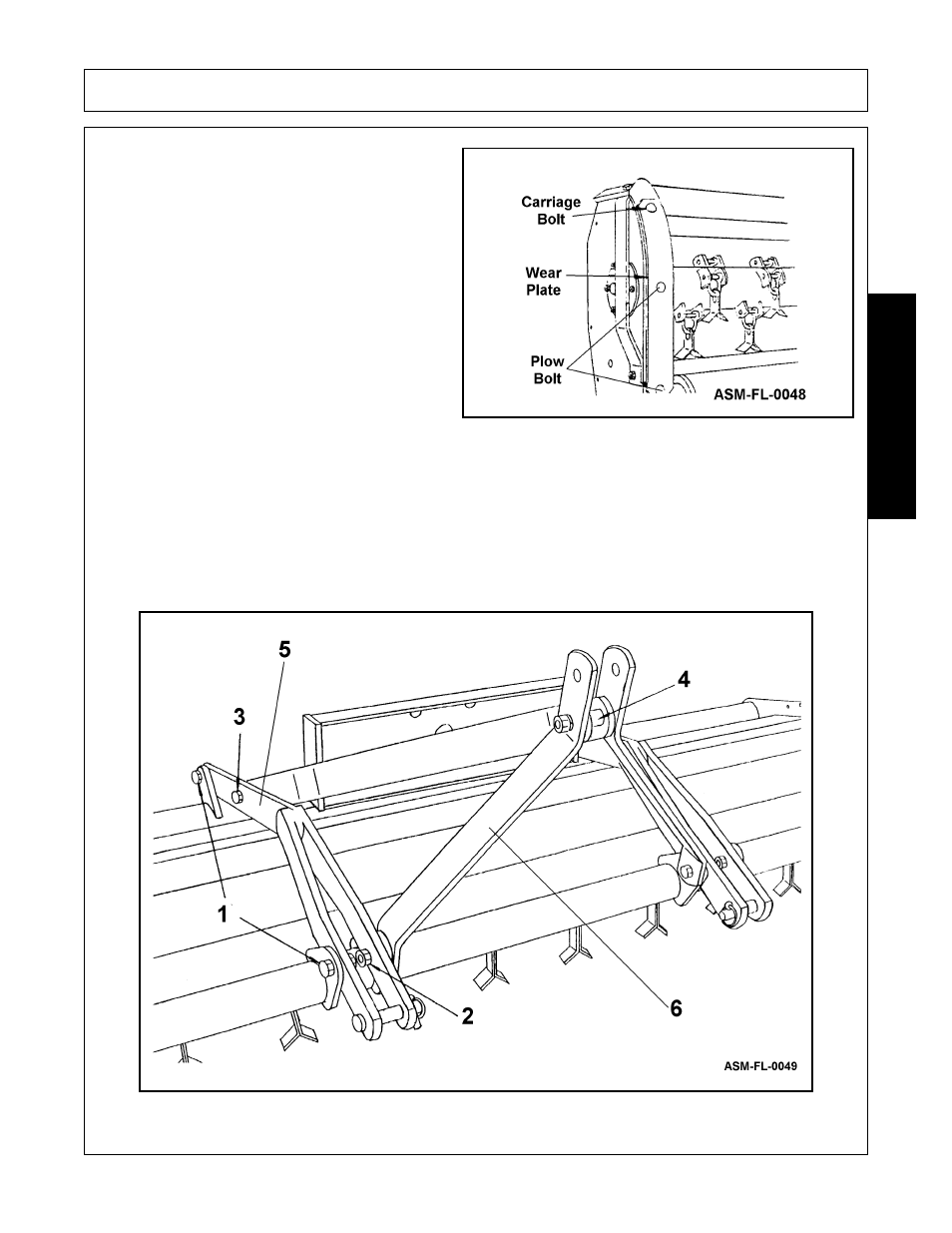

With the cutterhousing tipped up, attach housing
shoes/wearplate. Carriage bolt attaches to front
mounting hole; plow bolts attach to middle and rear
holes.

1.

Attach overarms to cutterhousing. Secure each in 2 places with 5/8 NC x 1-3/4 Hex Head Capscrew(#1),
and nut.

2.

Attach “A” frame arms to front of cutterhousing. Secure each, plus overarms in place with 5/8 NC x 2-1/2"
HHCS, and nut(#2).

3.

Attach gearbox mounting frame to overarms and A- frame arms. ASM-FL-0049

a. Secure with 5/8 NC x 1-3/4 HHCS and nut (#3). Torque to 170 ft-lbs.

b. Secure with 3/4 NC x 3-3/4 HHCS, A- frame spacer and nut(#4). Torque to 300 ft-lbs.
