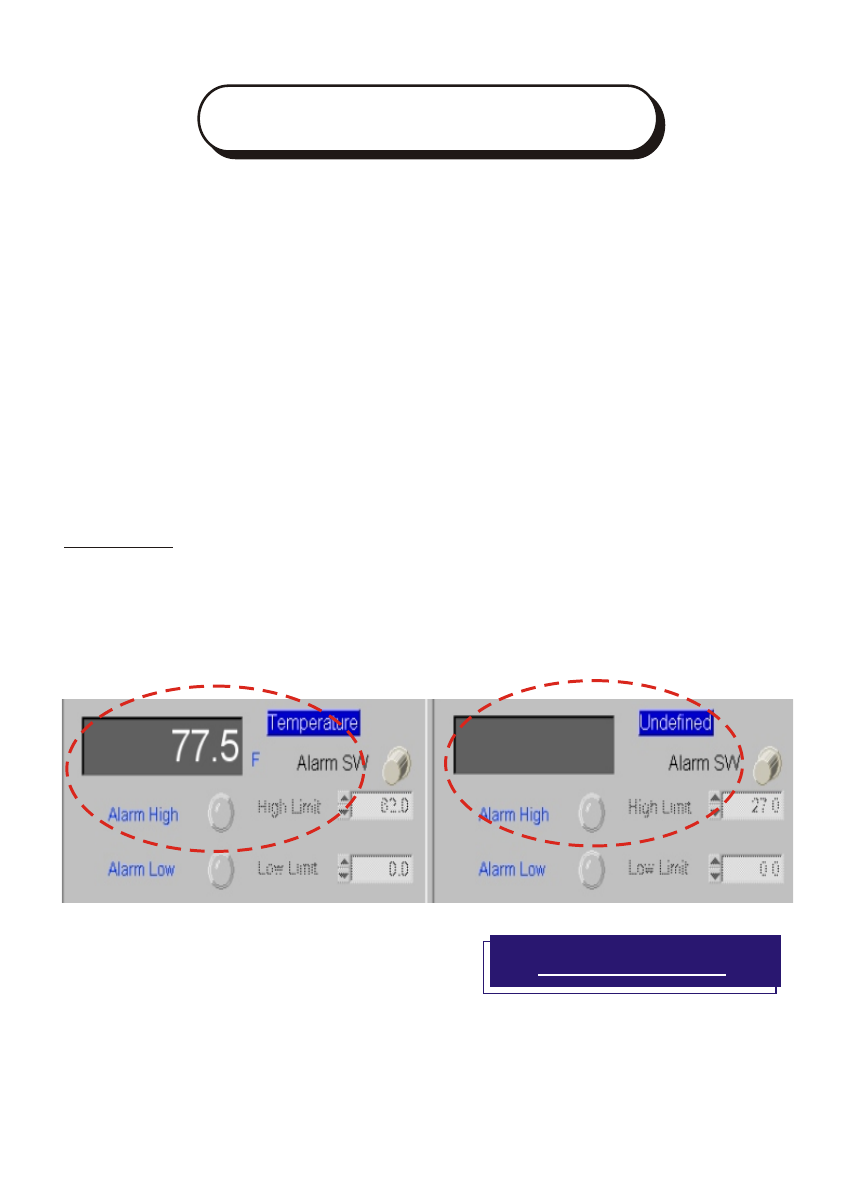

T1 Temperature value is shown in the left block. No reading is
shown in the right block.

The meter unit can be easily changed at your disposal, If the meter

o

o

unit is set in C , the reading will show in C. Once you change the

o

o

meter unit to F ,the screen unit will be changed to F simultaneouly.

Recommend to reset the Display Control range at the same time, or
you will see a minor chart change on the screen.(See Diagram U)

17

K.J.T. & K.J.T.R.S.E. TYPE

SINGLE INPUT THERMOMETER

FORMAT:

Baud Rate :2,400 bit /sec.
Data Bits : 8
Stop Bit : 1
TXXX.XC(F)

Diagram U
