TGR10003 Installation Instructions
• Use Anti-Seize on all fasteners that are threaded into stainless clamps or brackets.
• Install all bars before final tightening.
• Always tighten the tab side of the clamp first.
• Torque all 3/8” fasteners to 45 ft-lbs and all 1/2” fasteners to 75 ft-lbs.
• Make sure the clamp is exactly where you want it before tightening as the clamp may scratch
the tubing.
3. Assemble the clamps to the main
hoop. Use clamp D on the driver
side and clamp P on the passenger
side.
4. Use the ½” x 1 ½” 12 point bolt &
flange nut to fasten the harness bar
to the clamps.
1. In order to keep the “T” in the
casting facing up, and the bolts
facing the correct direction, there are
two different direction clamps. Be
very careful as to which clamp halves
you are bolting together.

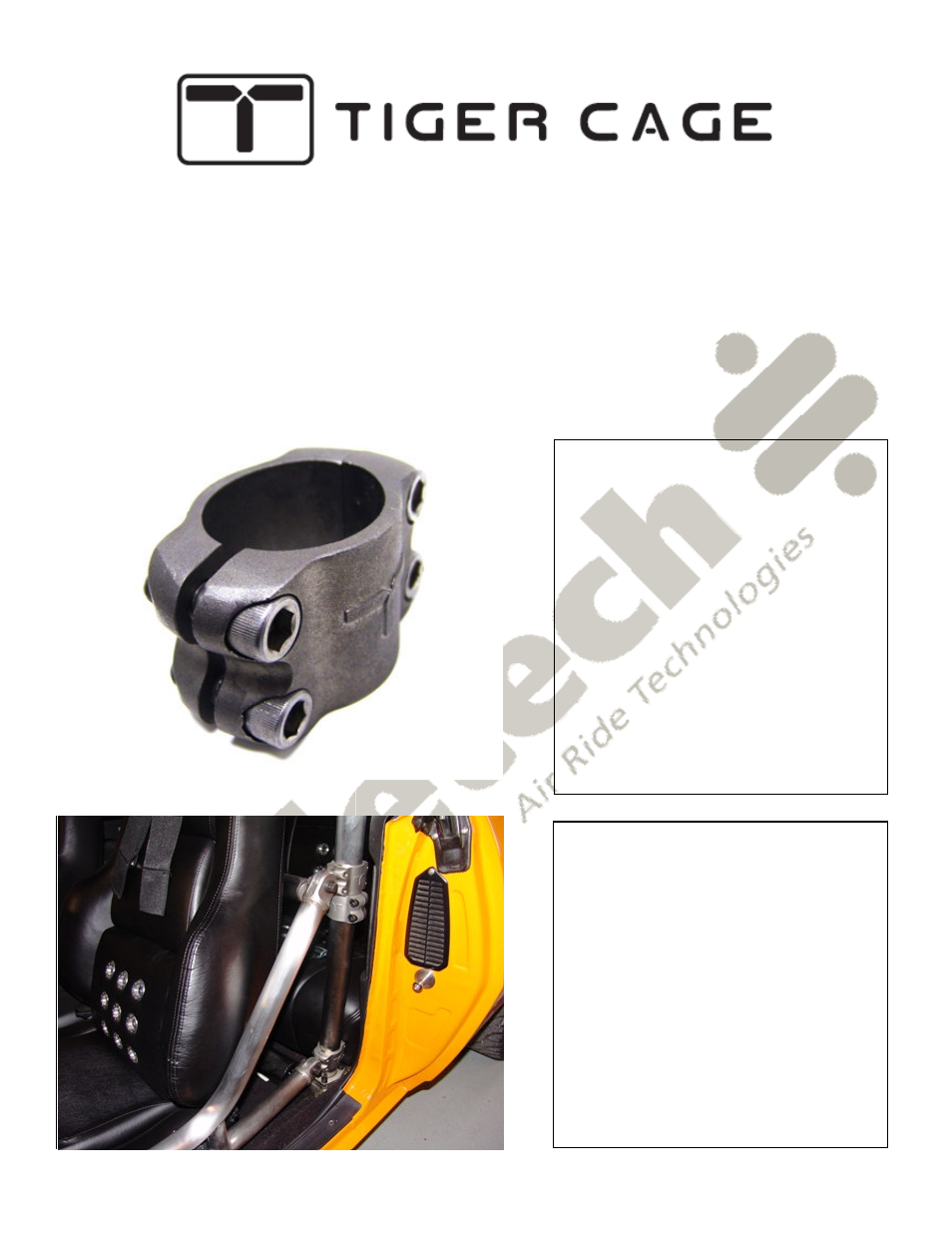

2. A correctly assembled clamp
should look like the one in the picture
shown to the left; there should be a
gap on one side for the tab to slide
into.
