Ridetech 41230000 User Manual
Page 5

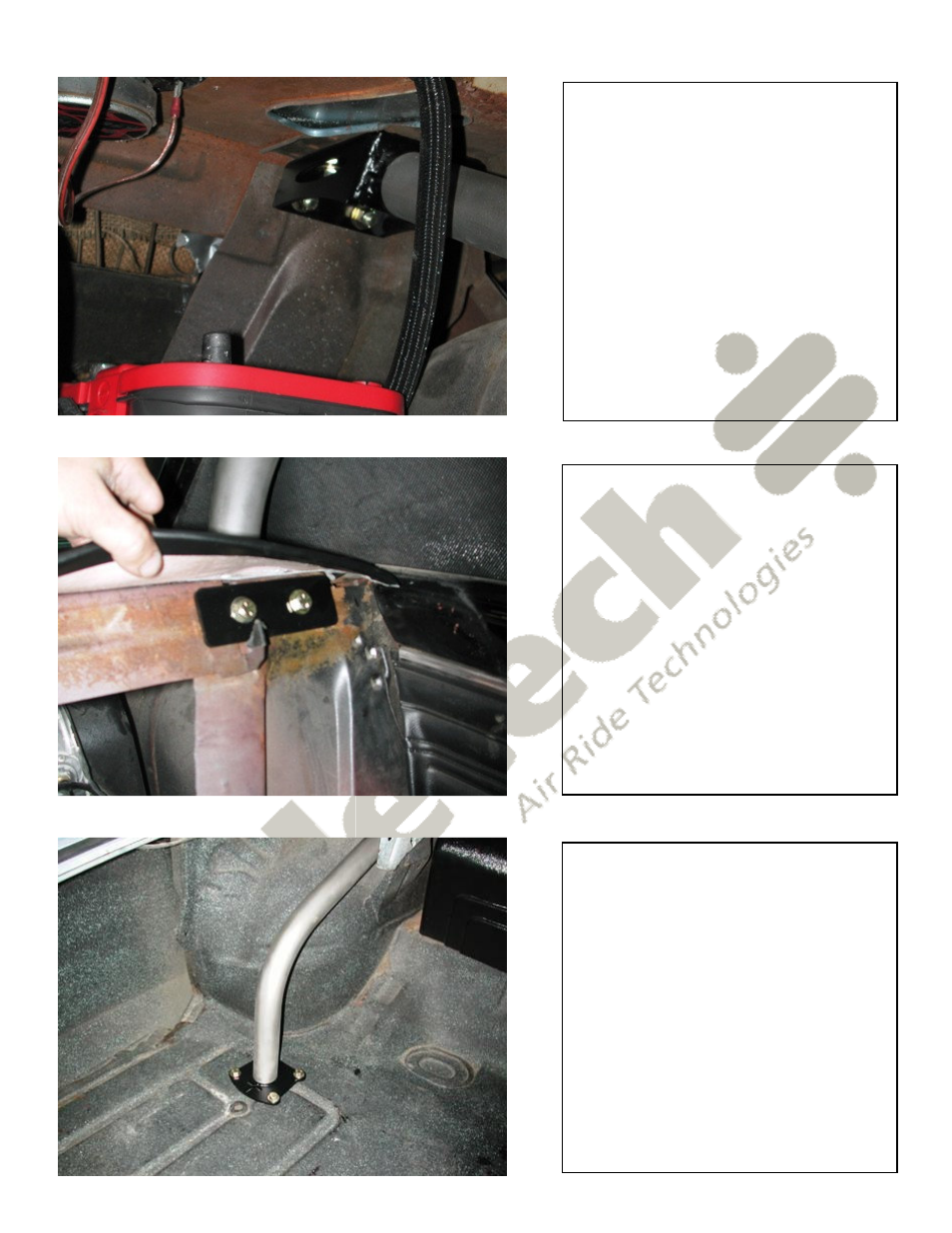

16. Using the trunk bar as a
template drill two 3/8” holes through
the vertical surface of the package
tray.
17. Place the reinforcement plate on
the inside of the package tray and
secure with assembly with two 3/8” x
1 ¼” bolts, flat washers and Nylok
nuts. Nuts should face the trunk.
18. Using the trunk bar as a
template; mark the 4 holes in the
floor pan with a center punch. First
drill the hole with a 1/8” bit. Before
drilling the holes to 3/8”, hold the
bottom frame bracket up against the
frame rail to ensure that the bolt
holes will align. Re-drill 1/8” holes if
necessary.
19. Drop four 3/8” x 1 ¼” bolts with
flat washers down through the floor
pan.
15. Fasten the trunk bar to the
package tray bar with four 3/8” Nylok
nuts and flat washers.
