TIGER CLAMP
•
In order to keep the “T” in the casting facing up, and the bolts facing the correct direction, there are
two different direction clamps. Clamp half “A” will be mated to clamp half “B”, Clamp half “C” will be
mated to clamp half “D”. Be very careful as to which clamp halves you are bolting together.
•
In order to keep the “T” in the casting facing up, and the bolts facing the correct direction, there are
two different direction clamps. Be very careful as to which clamp halves you are bolting together.
•

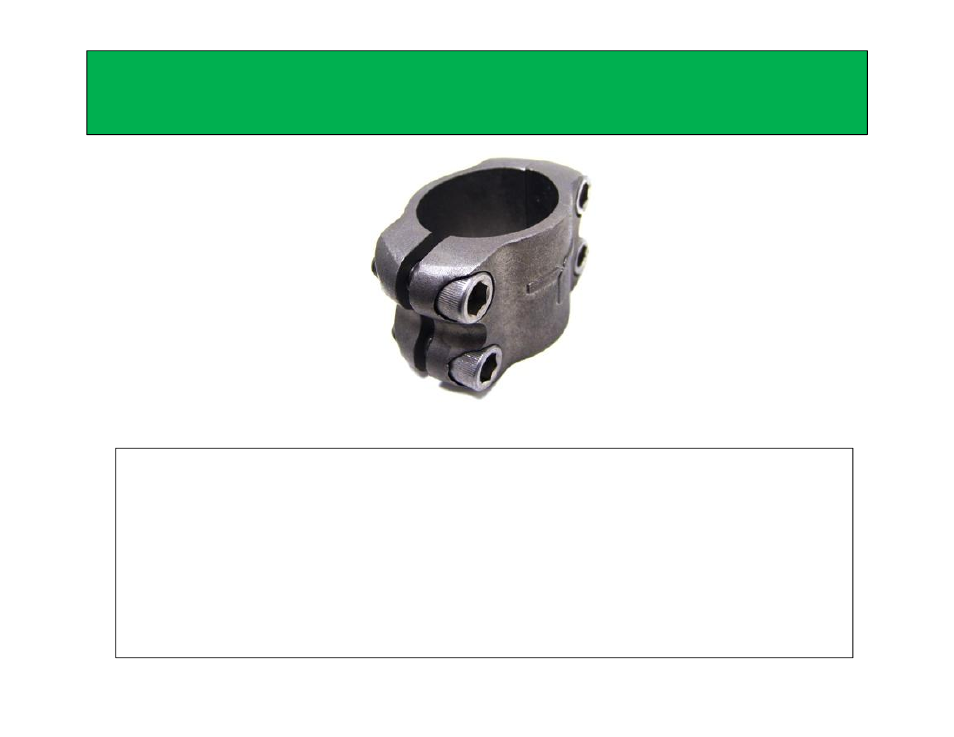

A correctly assembled clamp should look like the one in the picture shown above; there should be a
gap on one side for the tab to slide into.
•
Assemble the clamps to the main hoop. Use clamp D on the driver side and clamp P on the passenger
side.
