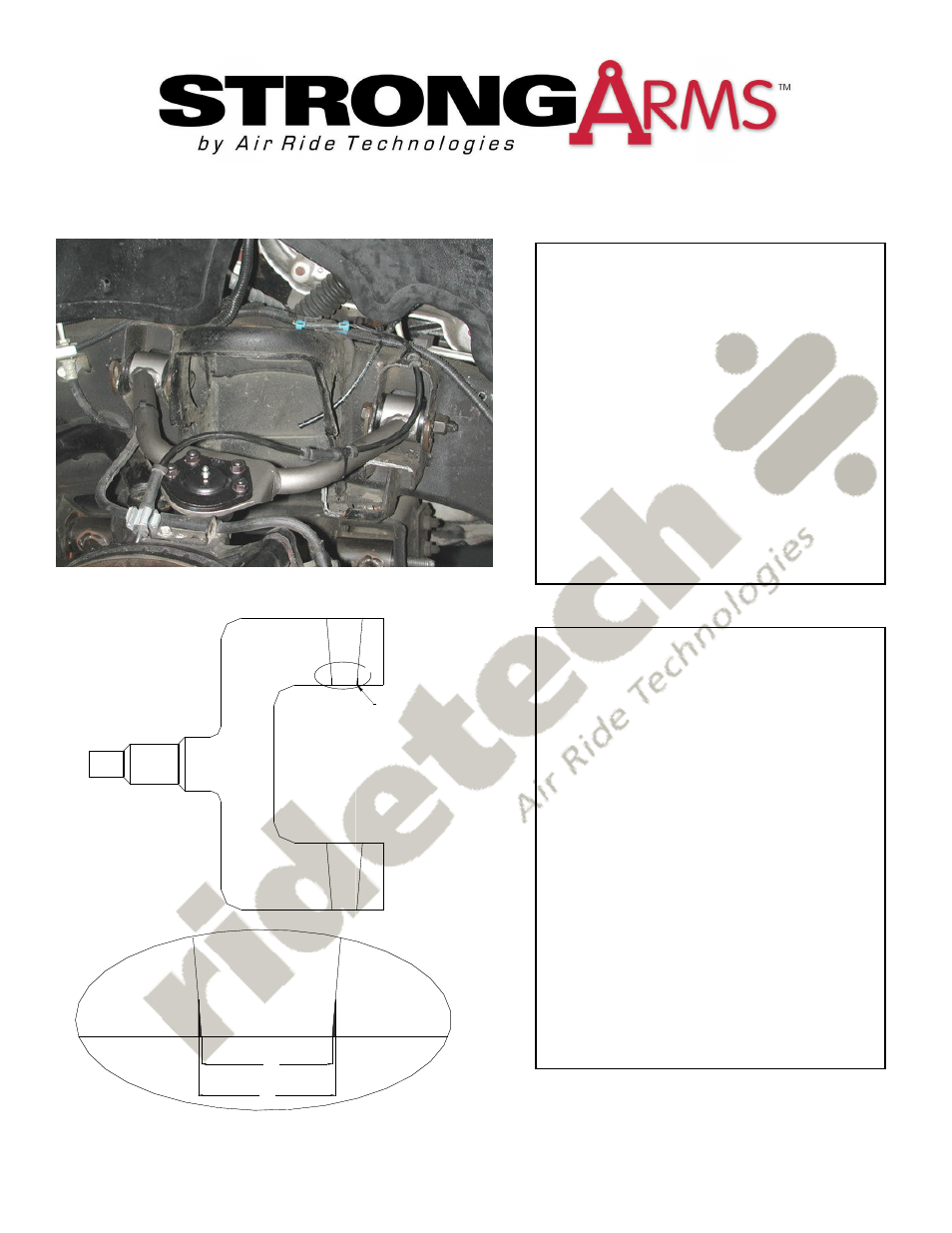

SPINDLE
TOP
SILVERADO
DRILL OUT HOLE
WITH 1/2" DRILL BIT
DETAIL A
A
BOTTOM OF H0LE WITH 1/2" DRILL BIT.
SHADED AREA REMOVED BY DRILLING
.477
.500
1. After removing the factory upper
control arm, clean the bushing
mounting surfaces on the frame and
lubricate with lithium grease.
2. Drop ball joint down through upper
arm. Install boot and fasten w/ the
hardware supplied.
3. Bolt the arm to the frame using the
factory camber bolts.
Note: The truck must be realigned
before driving.
4. Push the stud through the spindle,
secure w/ the new castle nut and cotter
pin.
5. Secure the brake line and ABS
harness to the upper control arm.
Allow enough slack for full suspension
travel.
6. Screw Zerk fitting into ball joint and
grease.
7. Lubricate the frame bushings w/
Lithium grease.
