11169102 Installation Instructions
Note: This sway bar was designed for use with our AirBar 4 link system. Installation with
other suspension systems will require modification. Newer AirBars will already have
the mounting brackets welded to the cradle. If installing on an older system the
mounting brackets (Part # 11169192) will need to be purchased and welded on.
4. Position the axle to ride height,
14.5” from eye to eye on the
Shockwaves/Coilovers. Then
position the sway bar so that the
arms are level to the ground.
5. Bolt one end of the PosiLink to the
sway bar arm using a 3/8” washer
and 10mm Nylok nut. Bolt the other
end to the weld-on axle tab.
6. Swing the axle tab up to the axle
and position it laterally until the
PosiLink is vertical to the ground.
Temporarily tack-weld the tab to the
tube.

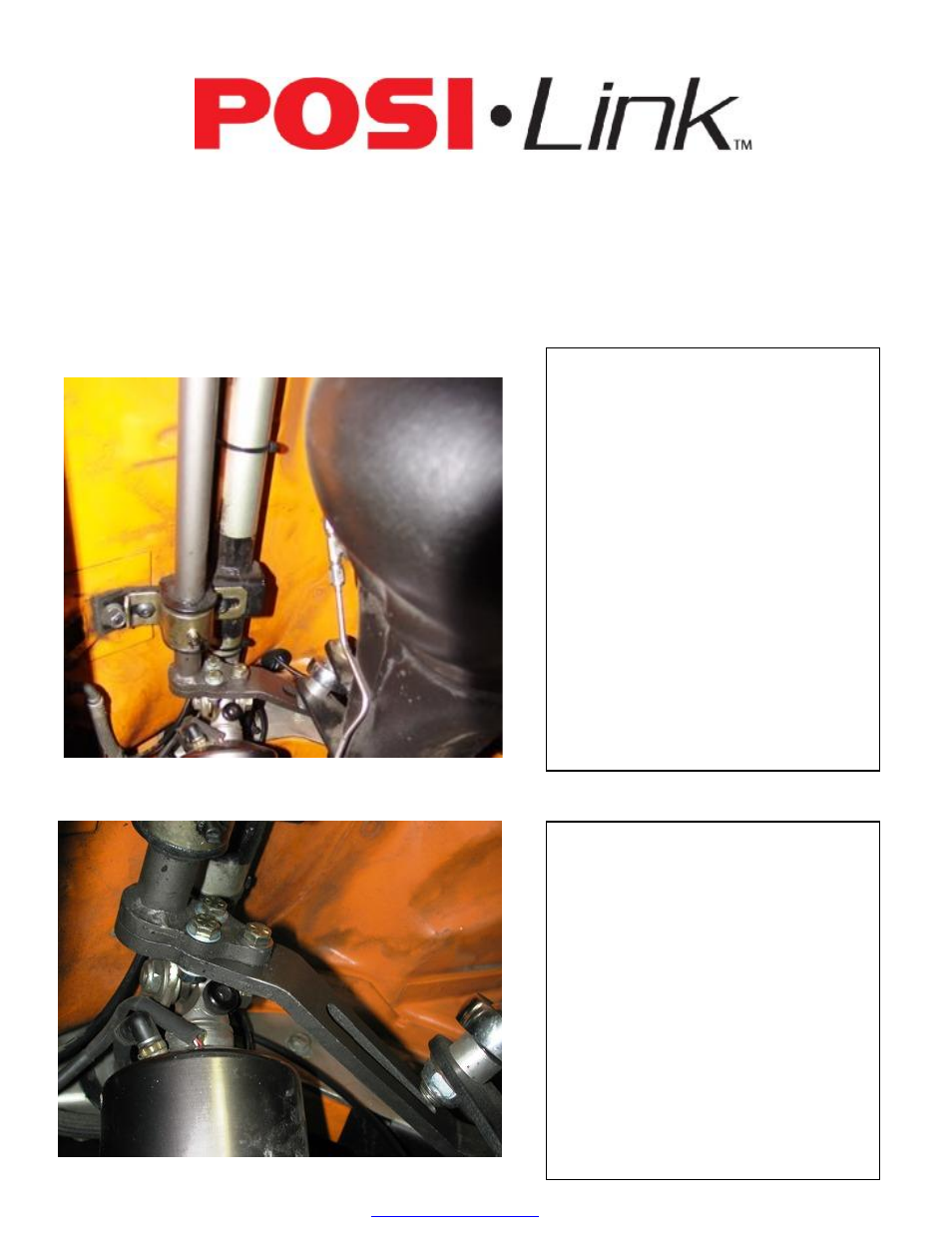

1. Bolt the sway bar arms to the bar
using three 5/16” x 1 ¼” bolts, Nylok
nuts and flat washers per side.
Note: The arms are ambidextrous,
but should be mounted point outward
toward the frame rail.
2. Lubricate the polyurethane
bushing with the Lithium grease
supplied and slide it over the bar.
Then place the mounting bracket
over the bushing.
3. Bolt the sway bar to the AirBar
bridge. Use 3/8” x 1” Button heads
on the front and 3/8” x ½” Button
heads on the rear mounting holes
with lock washers.
