Note: The upper shock bracket must be installed before installing the air spring.
1. Remove the bolt holding the brake
line bracket to the frame.

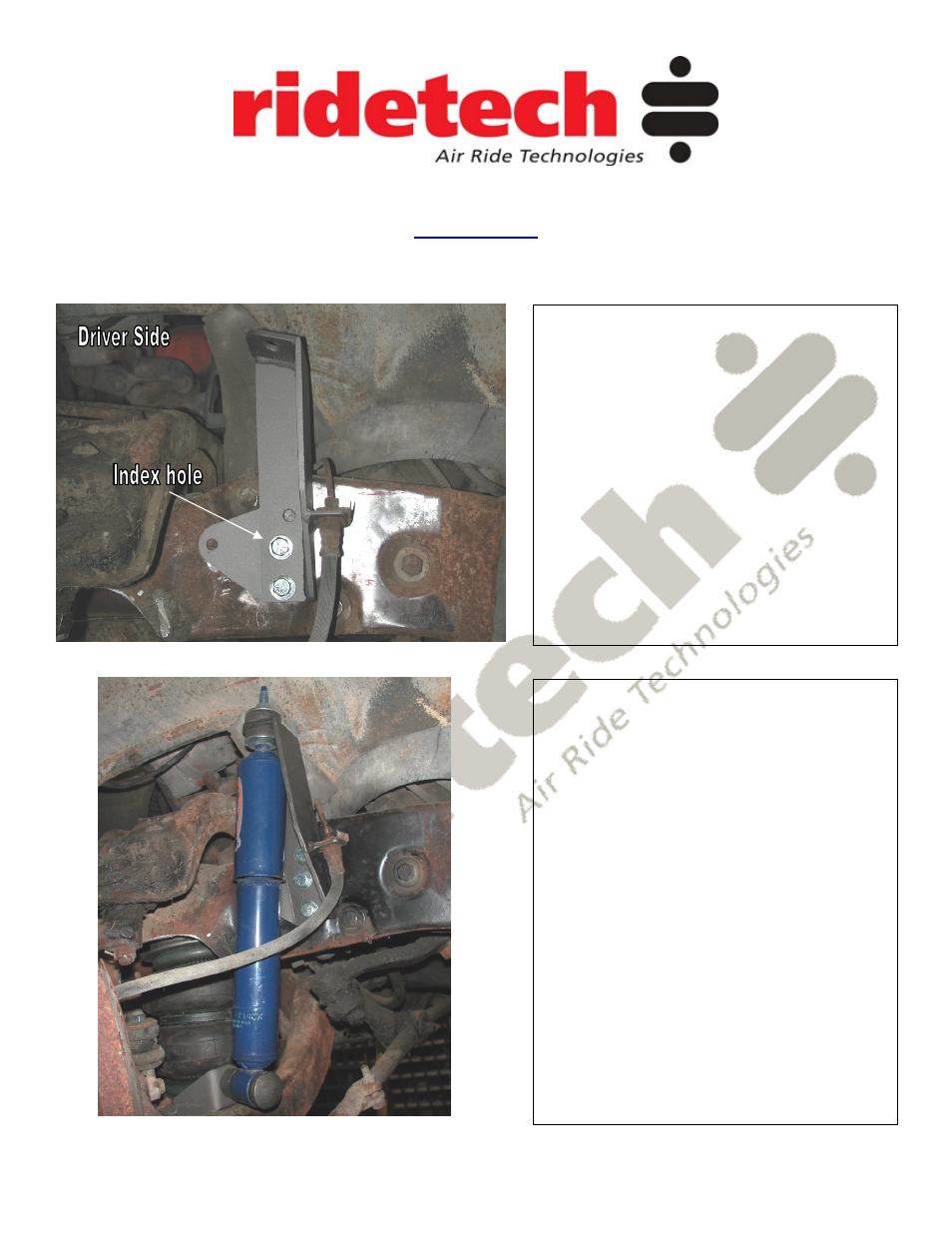

2. Place the upper shock bracket
against the frame behind the upper arm,
it will index off of the factory brake line
bracket hole. Use the factory bolt to
hold the bracket in place. Proceed to
drill the remaining holes while inserting a
3/8” x 1 ¼” bolt after drilling each hole.
3. Reattach the brake line to the new
tab on the shock bracket.
4. Insert the cantilever pin through the
lower shock eye, shock spacer and
shock bracket and tighten with supplied
hardware.
Insert the upper stud through the shock
bracket using the supplied bushing,
washers and nut.
