Drawer Warmer Installation/Operation/Service Manual • 5

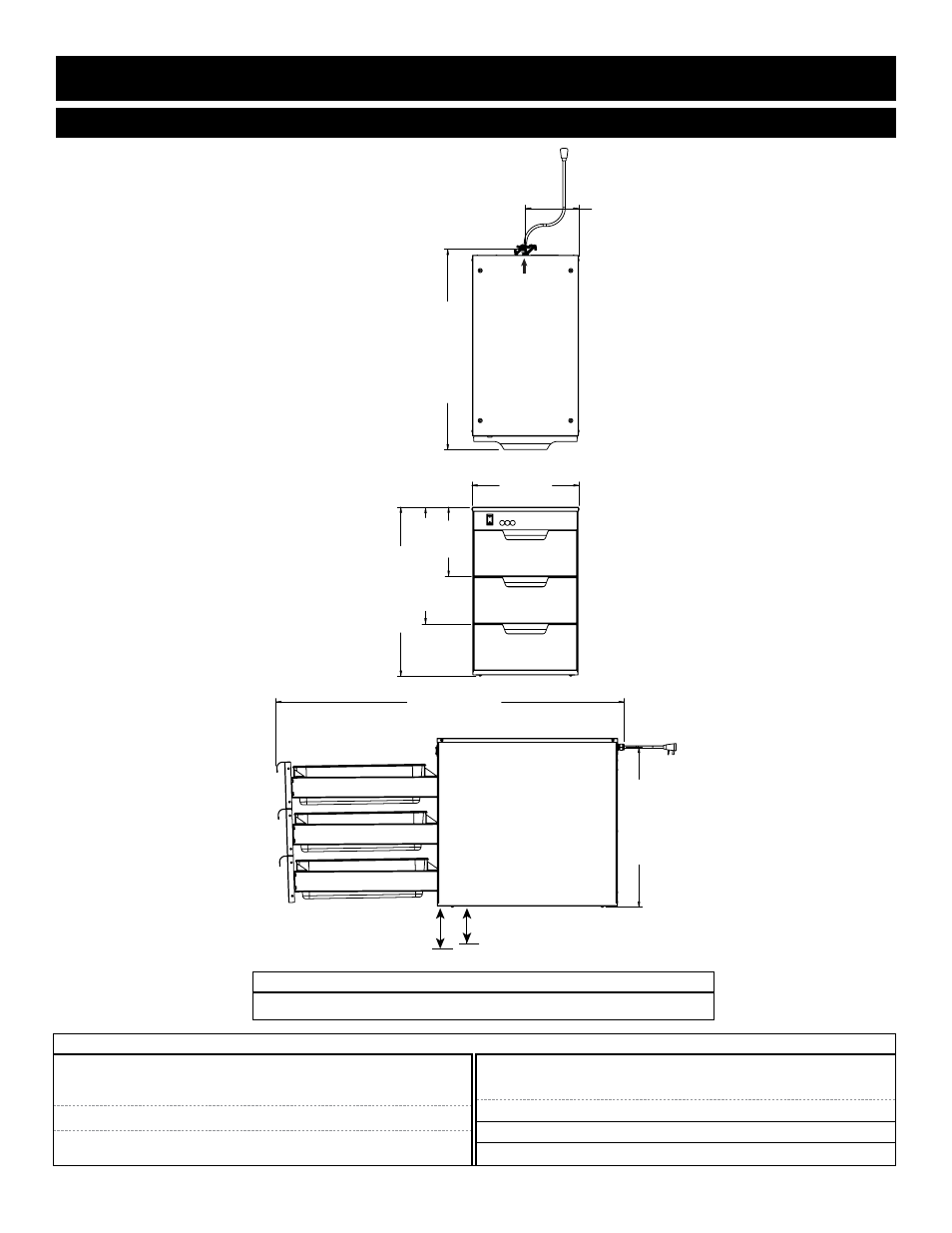

26-1/8" (664mm)
31-3/16" (792mm)
11-5/8" (296mm)
18-15/16" (481mm)
500-1D 500-2D 500-3D
Electrical
Connection
6-3/4" (171mm) FOR
LEG STAND OR 5" (127mm)
CASTER STAND ASSEMBLY
4-7/8" (121mm)
FOR CASTER STAND ASSEMBLY
WITH 3" (76mm) CASTERS
8-5/16"
(211mm)
16-11/16"
(423mm)
53-3/4" (1364mm)
24-7/8" (631mm)
Cord Length:
120V - 5' (1524mm)
208-240V - 8' (2438mm)
230V - 8' (2438mm)
S I T E I N S T A L L A T I O N
I N S T A L L A T I O N
500-1DN, 500-2DN, 500-3DN
OpTIONS & AccESSOrIES
Built-in Trim Kit
500-1DN 5015148
500-2DN 5015150
500-3dN 5015154
Caster Stand Assembly
- with 5" (127mm) casters
coNtact factory
- with 3" (76mm) casters
coNtact factory
Leg Stand Assembly
coNtact factory
Perforated pan grid, 12" x 20" (305mm x 508mm) 16642
cuTOuT DIMENSIONS ( for units with built in trim )
Add 3/4" (19mm) to unit height and 1-1/2" (38mm) to unit width
