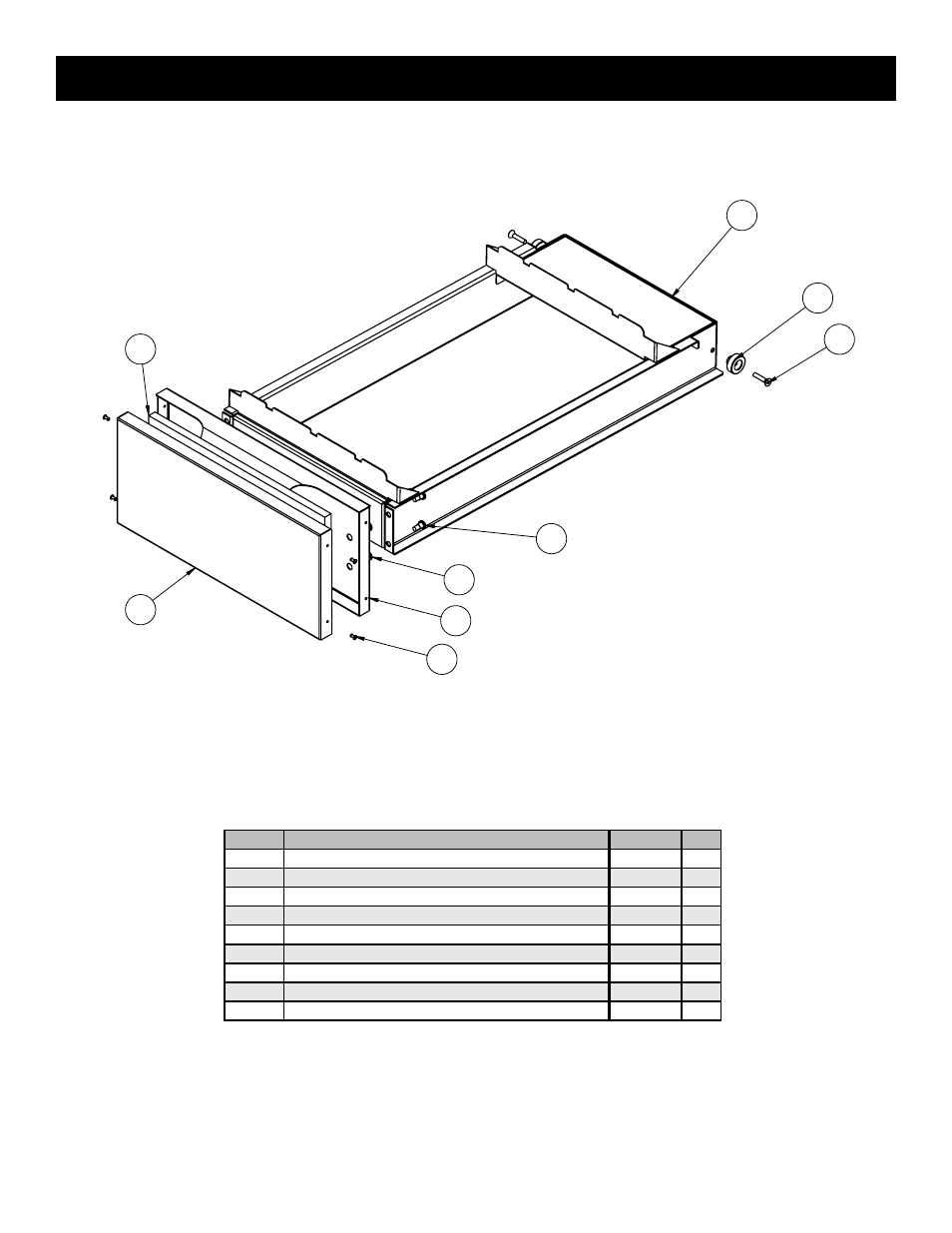

SErVIcE VIEw - DrAwEr ASSEMbLy (5014435)
500-DN
Part numbers and drawings are subject to change without notice.
ITEM DEScrIpTION pArT NO. QTy
1 DRAWER FRAME, SPOT 5014439 1
2 BEARING, DRAWER WARMER BG-24890 2
3 SCREW, 1/4-20 x 1-1/8" FLAT HD SC-25018 2
4 STUD, S/S PIVOT ST-25019 4
5 NUT, INSERT THREADED, 1/4-20 NU-24613 4
6 DRAWER, INNER, WITH HANDLE 1012802 1
7 RIVET, BLIND, #44, S/S RI-2100 4
8 OUTER DRAWER, NARROW 1012804 1
9 INSULATION, 7.13" X 16" X .50" THICK IN-2003 1
Item #5 must be ordered
when installing item #6
