Drawer Warmer Installation/Operation/Service Manual • 17
S E r V I c E
3
4
5
1
2
12
11
10
6
13
8
7
9

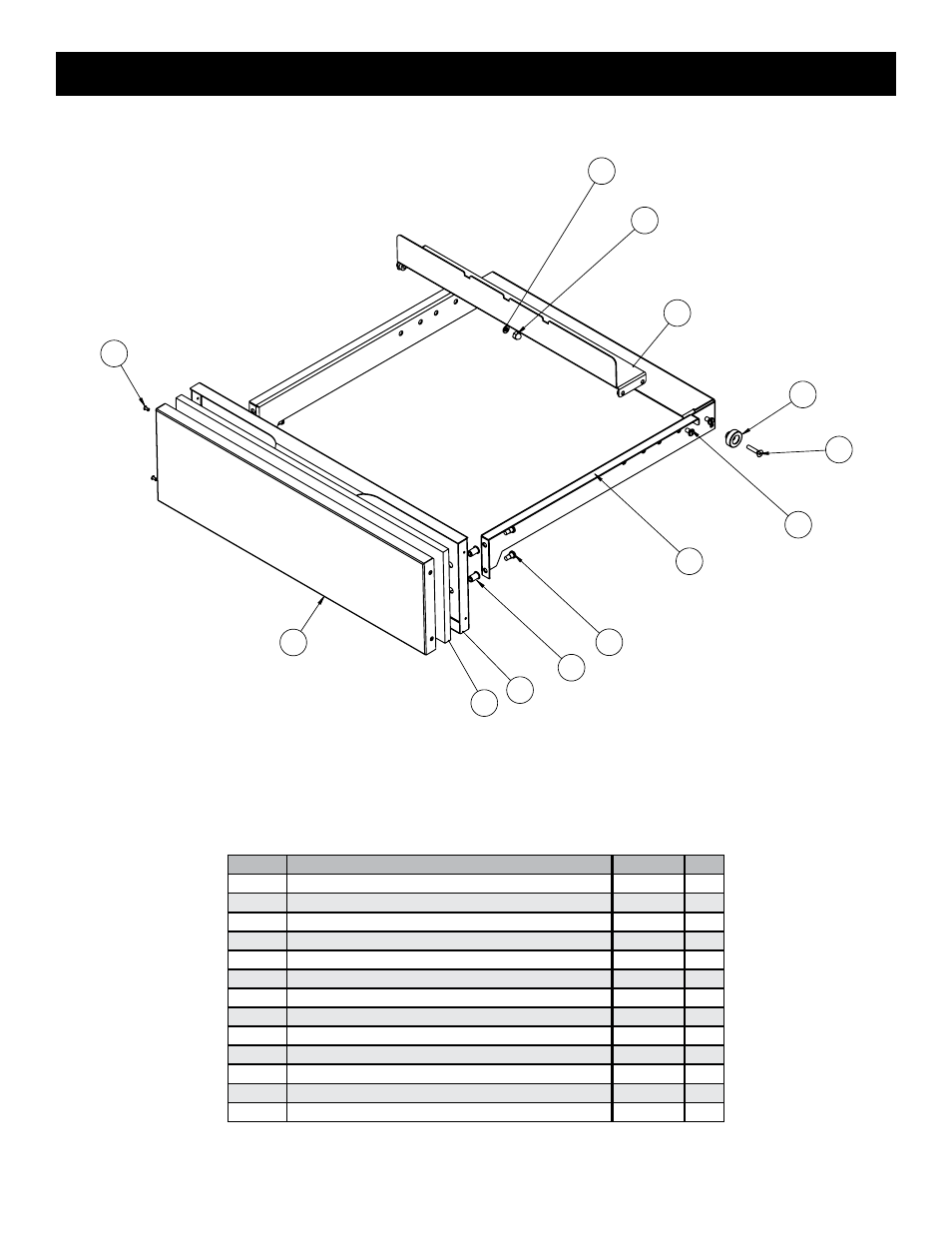

SErVIcE VIEw - DrAwEr ASSEMbLy (5013915)
500-D
Part numbers and drawings are subject to change without notice.
ITEM DEScrIpTION pArT NO. QTy
1 WASHER, 1/4" LOCK WS-2294 2
2 NUT 1/4-20 NC ACORN #18-8 S/S NU-2187 2
3 PAN SUPPORT, DRAWER WARMER 5013916 1
4 BEARING, DRAWER WARMER BG-24890 2
5 SCREW, 1/4-20 x 1-1/8" FLAT HD SC-25018 2
6 STUD, SHOULDER, SHORT, S/S ST-2546 4
7 DRAWER FRAME 1012476 1
8 STUD, S/S PIVOT ST-25019 4
9 NUT, INSERT THREADED, 1/4-20 NU-24613 4
10 DRAWER FRONT SPOT 5013917 1
11 INSULATION, 7.13" X 16" X .50" THICK IN-2003 1
12 OUTER DRAWER 16467 1
13 RIVET, BLIND, #44, S/S RI-2100 4
Item #9 must be ordered
when installing item #10
