S E r V I c E
6
5
8
7
4
3
1
2
10
9

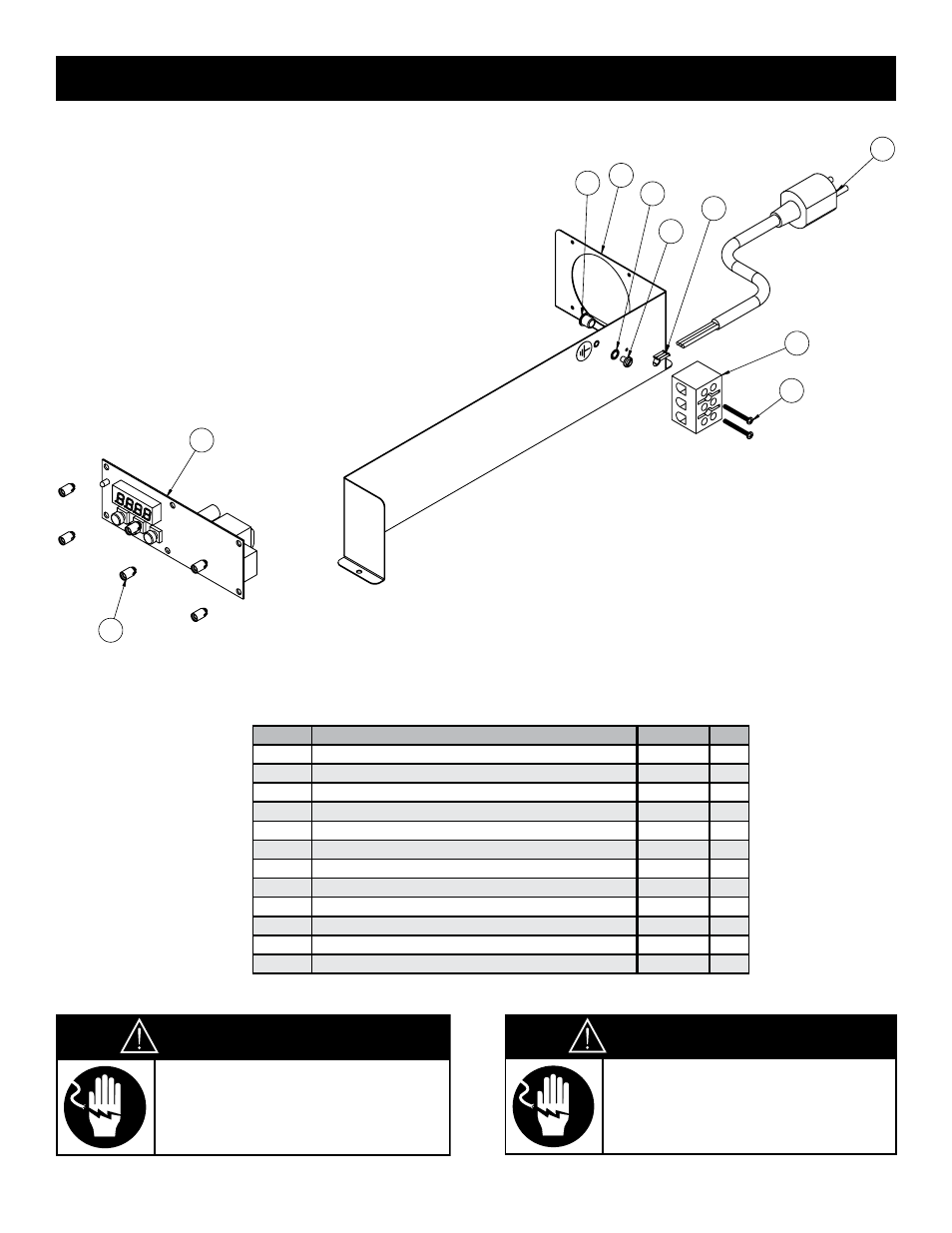

SErVIcE VIEw - ELEcTrIcAL
Part numbers and drawings are subject to change without notice.
ITEM DEScrIpTION pArT NO. QTy
1 BUSHING, 3/8" HOLE BU-3419 1
2 ELECTRIC CHASSIS 5014441 1
3 WASHER, INT. LOCK WS-2467 1
4 SCREW, 10-32 X 1/4 PAN HD GROUND SC-2190 1
5 CONNECTOR, #16 FERRULE CR-34828 3
6 CORDSET, 120V - 5' (1524mm) CD-3232 1
CORDSET, 208-240V - 8' (2438mm) CD-3551 1
CORDSET, 230V - 8' (2438mm) CD-3922 1
7 T-BLOCK BK-3019 1
8 SCREW, 6-32 X 1-1/4" ROUND HD SC-2365 2
9 SPACER, SNAP-IN 7/16" SP-29392 6
10 CONTROL CC-34970 1
D A N g E r
DIScONNEcT uNIT frOM
pOwEr SOurcE bEfOrE
cLEANINg Or SErVIcINg.
D A N g E r
LOcK-OuT Or pOST
brEAKEr pANEL uNTIL
SErVIcE wOrK hAS
bEEN cOMpLETED.
