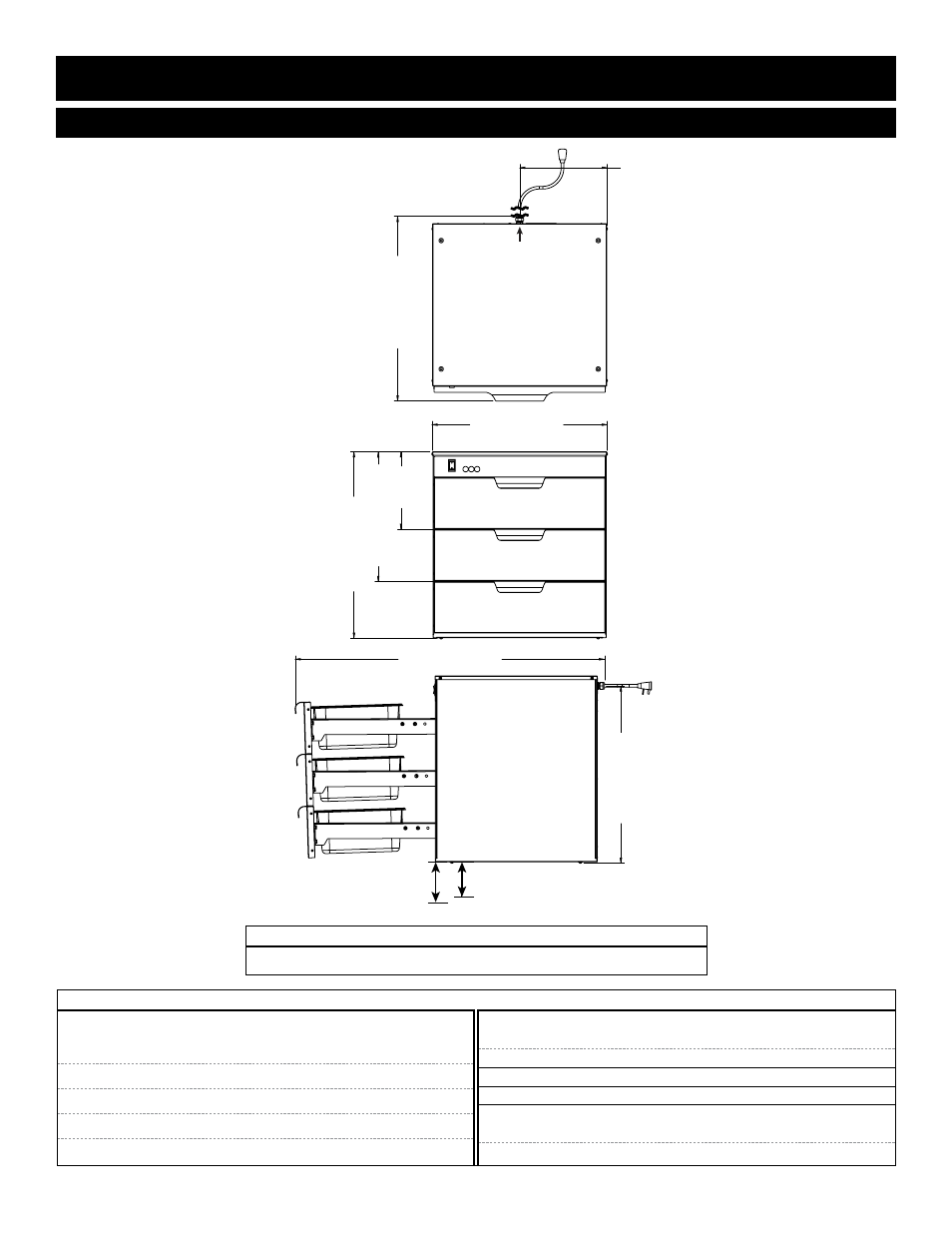

Drawer Warmer Installation/Operation/Service Manual • 4
12-5/16"
(312mm)
24-5/8" (624mm)
43-3/8" (1101mm)
24-7/8" (631mm)
26-1/8" (664mm)
25-7/8" (657mm)
11-5/8"
(296mm)
18-15/16" (481mm)
500-1D 500-2D 500-3D
Electrical
Connection
6-3/4" (171mm) FOR
LEG STAND OR 5" (127mm)
CASTER STAND ASSEMBLY
4-7/8" (121mm)
FOR CASTER STAND ASSEMBLY
WITH 3" (76mm) CASTERS
Cord Length:
120V - 5' (1524mm)
208-240V - 8' (2438mm)
230V - 8' (2438mm)
S I T E I N S T A L L A T I O N
I N S T A L L A T I O N
500-1D, 500-2D, 500-3D
OpTIONS & AccESSOrIES
Built-in Trim Kit
500-1D 5015147
500-2D 5015149
500-2d for Bu2-48, Bu2-72 5015151
500-2d for Bu2-96 5015152
500-3d 5005153
Caster Stand Assembly
- with 5" (127mm) casters
coNtact factory
- with 3" (76mm) casters
coNtact factory
Leg Stand Assembly
coNtact factory
Pan, oversize, 15" x 20" x 5" (381 x 508 x 127mm) PN-2123
perforated pan grid
15" x 20" (381mm x 508mm) 1231
12" x 20" (305mm x 508mm) 16642
cuTOuT DIMENSIONS (
for units with built in trim )
Add 3/4" (19mm) to unit height and 1-1/2" (38mm) to unit width
