IR/Serial Port: Connections and Wiring
You can connect only one IR- or Serial-controllable device to the IR/Serial connectors on the rear of the
NI-700 (FIG. 8) but you can connect up to three IR- or Serial-controllable devices to the rear of the
NI-900.
These connectors accept an IR Emitter (CC-NIRC) that mounts onto the device's IR window, or a
mini-plug (CC-NSER) that connects to the device's control jack. You can also connect a data 0 - 5 VDC
device. This unit comes with a single CC-NIRC IR Emitter (FG10-000-11).
The IR/Serial connector wiring specifications are listed in the following table.
Ethernet/RJ-45 Port: Connections and Wiring
The following table lists the pinouts, signals, and pairing for the Ethernet connector.

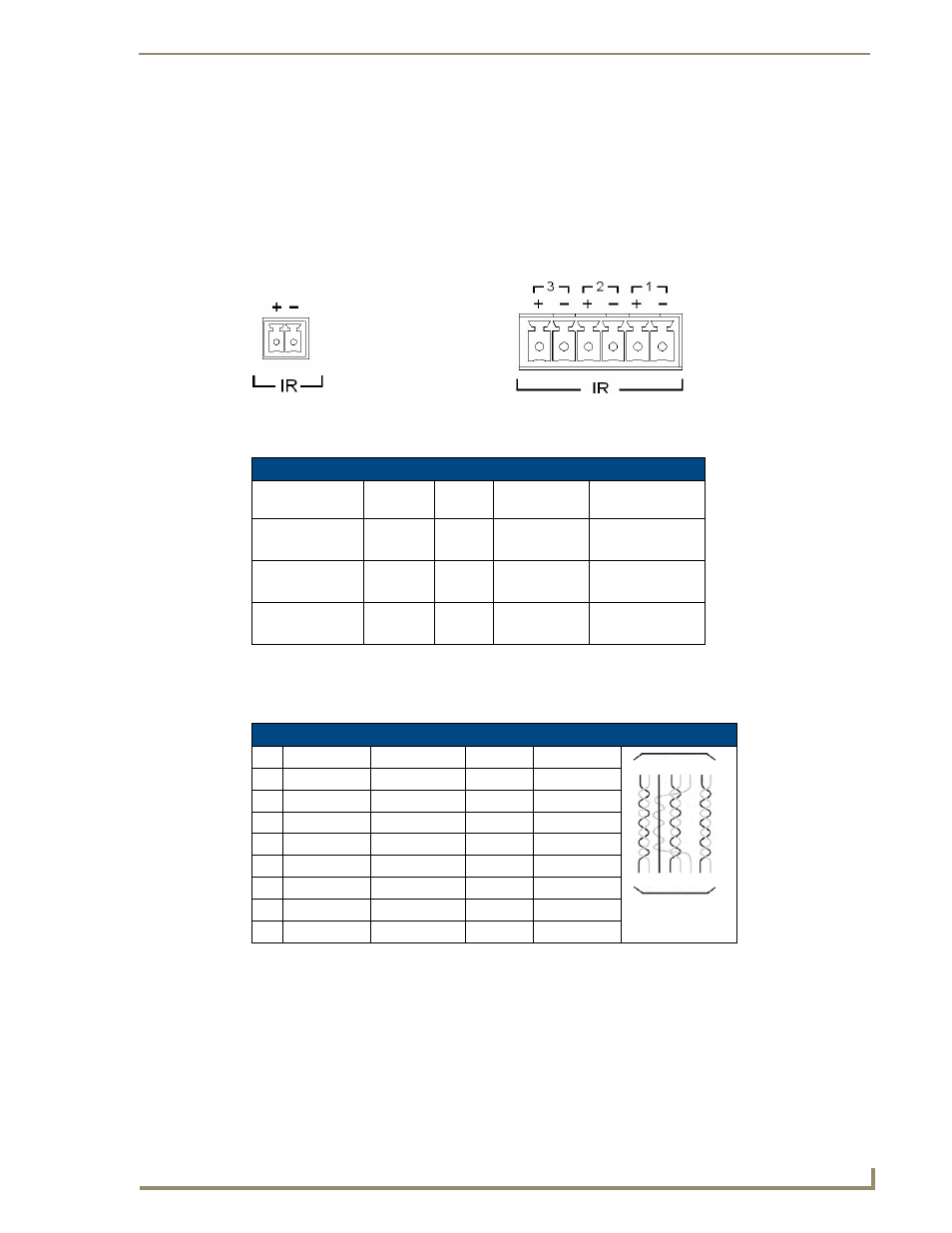

FIG. 8
IR/SERIAL connectors (male)
IR/Serial Connector Wiring Specifications (per Port)
Number of
IR connections
NI-700
Port #
NI-900
Port #
Signal
Function
1
3
2
GND (-)
Signal 1 (+)
Signal GND
IR/Serial data
2
N/A
3
GND (-)
Signal 2 (+)
Signal GND
IR/Serial data
3
N/A
4
GND (-)
Signal 3 (+)
Signal GND
IR/Serial data
Ethernet RJ-45 Pinouts and Signals
Pin Signals
Connections Pairing Color
1
TX +
1 --------- 1
1 --------- 2 Orange-White
2
TX -
2 --------- 2
Orange
3
RX +
3 --------- 3
3 --------- 6 Green-White
4
no connection
4 --------- 4
Blue
5
no connection
5 --------- 5
Blue-White
6
RX -
6 --------- 6
Green
7
no connection
7 --------- 7
Brown-White
8
no connection
8 --------- 8
Brown
NI-700 IR/Serial connector
configuration (Port 3)
NI-900 IR/Serial connectors
configuration (Ports 2 -4)
1 2 3
4 5 6 7 8
1 2 3
4 5 6 7 8
