ADCP-96-015 • Issue 1 • July 2004
Page 3
© 2004, ADC Telecommunications, Inc.

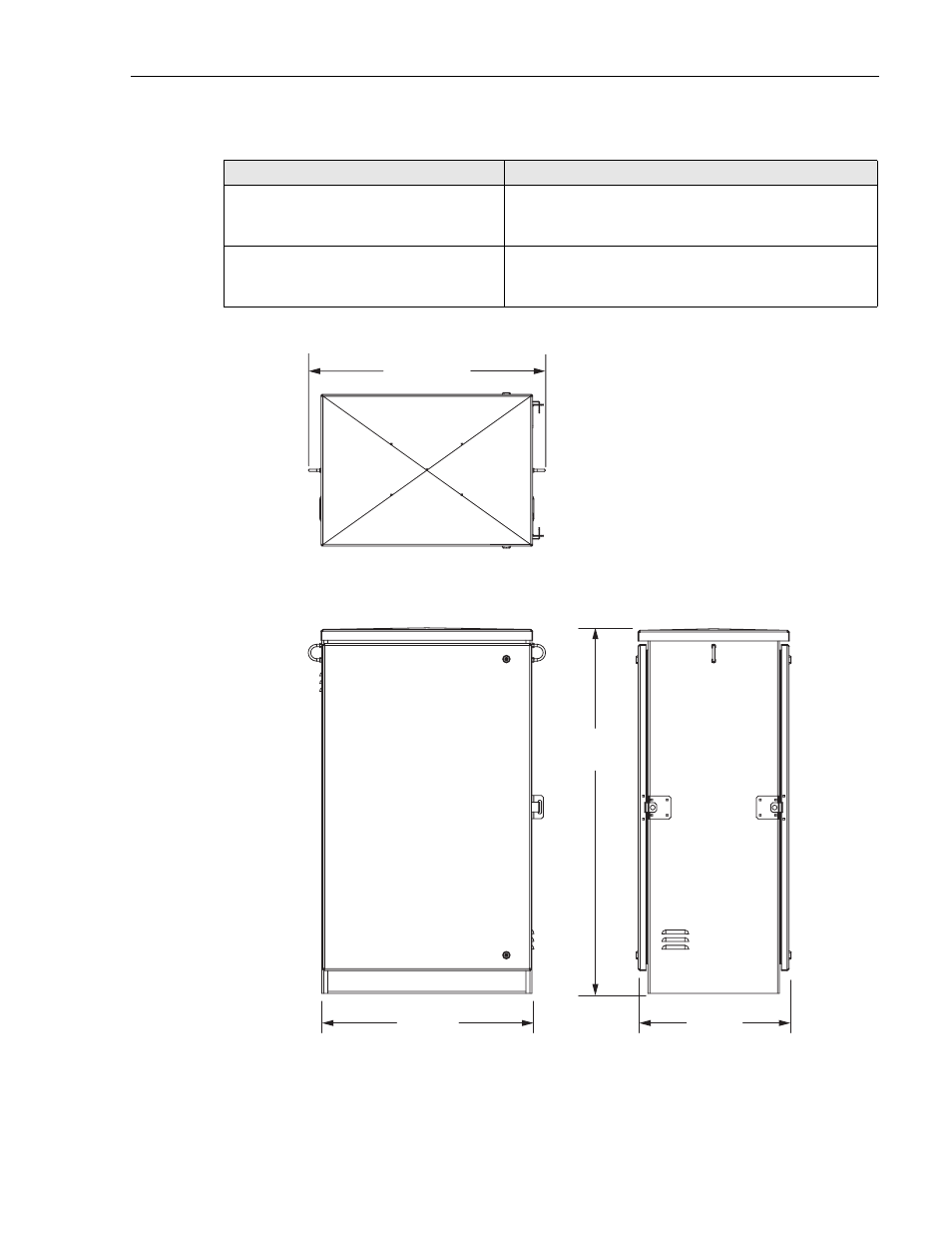

Figure 2. ACE-142S/142V Cabinet Dimensions
Insertion loss at test bandpass
1x8 standard APC/SC
1x32 standard APC/SC
11.1 dB Maximum (Including connector)
17.8 dB Maximum (Including connector)
Return loss at test bandpass
1x8 standard APC/SC
1x32 standard APC/SC
>55 dB
>55 dB
Table 1. ACE-142S/142V Cabinet Specifications, continued
PARAMETER SPECIFICATION
27.3 IN.
(69.3 CM)
19.7 IN.
(50.1 CM)
47.5 IN.
(120.7 CM)
19606-A
30.8 IN.
(78.2 CM)
