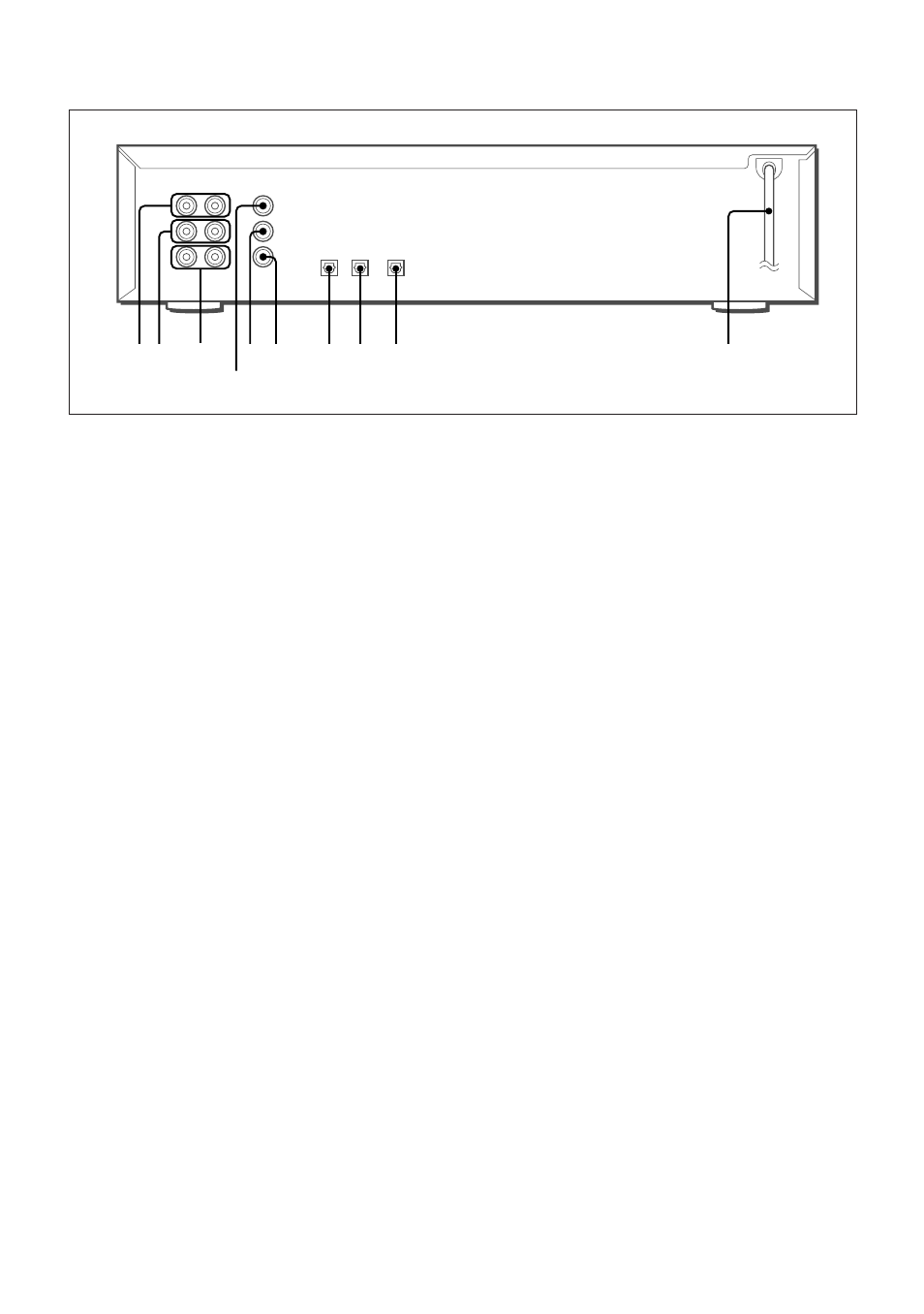

REAR PANEL CONNECTIONS
1 ANALOG CD OUT
These jacks carry the analog audio output signal
from the play deck.
2 ANALOG CD-R/RW OUT
These jacks carry the analog audio output signal
from the record deck.
3 ANALOG CD-R/RW IN
These jacks accept the analog signals that are used
for CD recordings.
4 COAXIAL CD OUT
This jack carries the digital audio output signal from
the play deck.
5 COAXIAL CD-R/RW OUT
This jack carries the digital audio output signal from
the record deck.
6 COAXIAL CD-R/RW IN
This jack accepts the digital audio input signal from
a compatible digital audio product.
7 OPTICAL CD-R/RW DIGITAL IN
This jack accepts the digital audio input signal from
a compatible digital audio product.
8 OPTICAL CD-R/RW DIGITAL OUT
This jack carries the digital audio output signal from
the record deck.
9 OPTICAL CD DIGITAL OUT
This jack carries the digital audio output signal from
the play deck.
0 AC power cord
Connect this plug to an AC outlet.
