RECOMMENDED JESEL
BELT DRIVE MAINTENANCE:
CAM TIMING ADJUSTMENTS:
LOOSEN FOUR NUTS ON THE SPIDER. TURN THE
CRANKSHAFT CLOCKWISE TO RETARD THE CAM-
SHAFT TIMING AND COUNTER-CLOCKWISE TO
ADVANCE THE CAMSHAFT TIMING. EACH MARK
ON THE SPIDER GEAR EQUALS TWO DEGREES AT
THE CRANKSHAFT.
CAM ADAPTOR BOLTS - 28-30 FT / LBS
UPPER PULLEY NUTS - 20-25 FT / LBS
CAM SEAL THRUST PLATE NUT - 12 FT / LBS
7/16-20 LEFT HAND CAM BOLT - 70 FT / LBS
TORQUE SPECS:

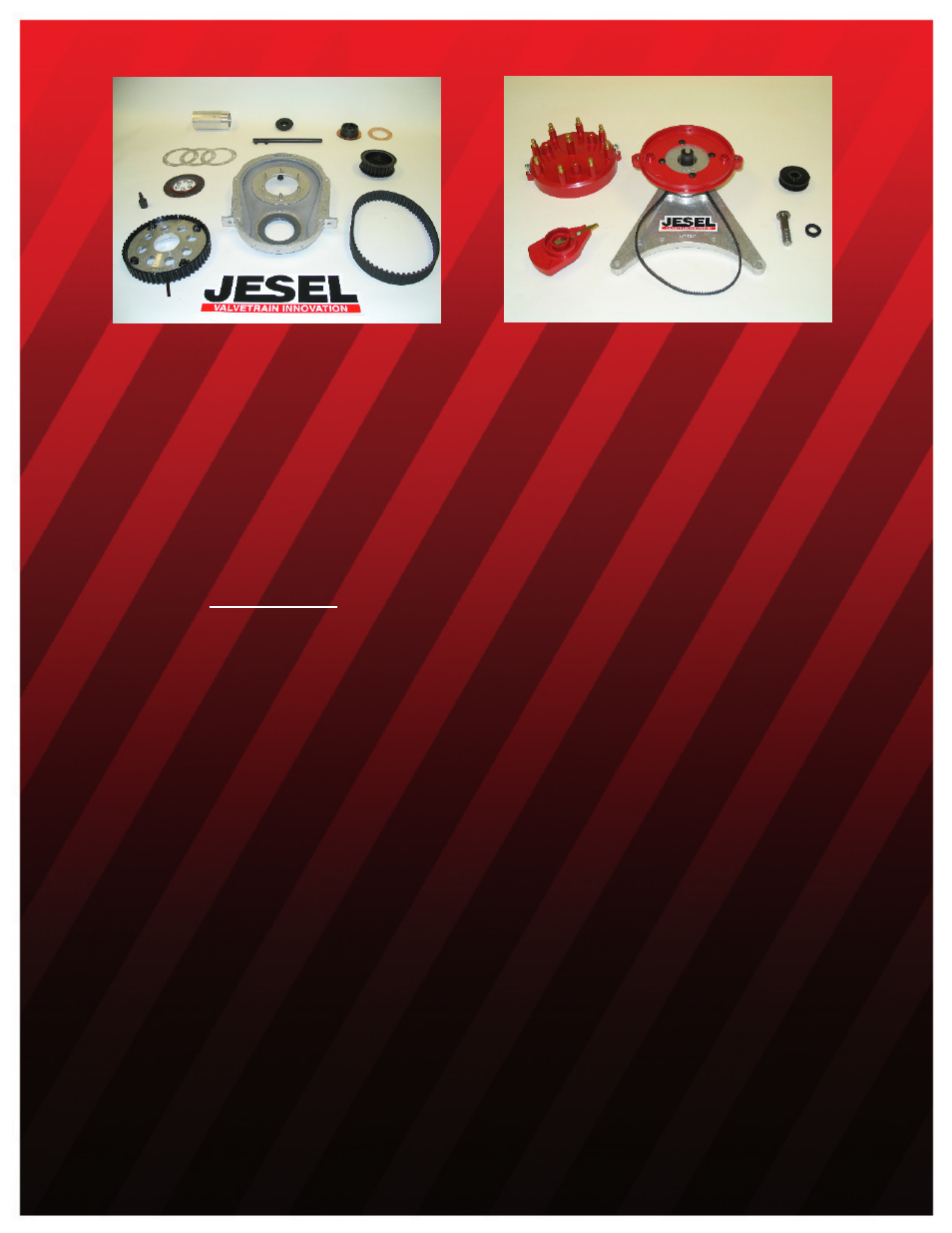

KIT CONTENTS:
JESEL ALSO OFFERS A DISTRIBUTOR DRIVE KIT
FOR THE BIG-BLOCK CHEVY . THE DISTRIBUTOR
DRIVE KIT ELIMINATES INACCURATE IGNITION
TIMING SETTINGS DUE TO CAMSHAFT TORSIONAL
TWISTING ON HIGH RPM ENGINES WITH EXCES-
SIVE SPRING PRESSURES. IT ALSO PROVIDES A
MUCH COOLER LOCATION FOR THE DISTRIBU-
TOR. INTAKE MANIFOLD CHANGES WILL BE MUCH
EASIER AS WELL THANKS TO THE DISTRIBUTOR
NOT HAVING TO BE ROUTED THROUGH THE REAR
PORTION OF THE INTAKE MANIFOLD. THIS KIT IS A
DIRECT BOLT ON.
KDD-42565, DART TITAN / DONOVAN 800
DISTRIBUTOR DRIVE KIT
KBD-42565 DISTRIBUTOR DRIVE
A
B
C
D
E
F
G
H
I
J
K
L
M
1) REPLACE BELT ANNUALLY OR AFTER ANY TYPE OF
ENGINE DAMAGE.
BEL-31072, TIMING BELT, BB CHEVROLET
2) REPLACE BOTH SEALS AND THRUST WASHERS
ANNUALLY.
SEL-38000 , CAMSHAFT SEAL
SEL-37300 , CRANKSHAFT SEAL
WSH-39610 , BRONZE THRUST WASHER, FRONT
WSH-39660 , BRONZE THRUST WASHER, REAR
3) COVER BELT DRIVE SYSTEM IF OPERATED ON
ABRASIVE TRACK SURFACES SUCH AS DIRT OR
SAND.
4) KEEP OIL OFF OF ALL SEALING SURFACES PRIOR
TO INITIAL START UP.
5) ALWAYS DEGREE AND RE-DEGREE CAMSHAFT AF-
TER TIMING BELT REPLACEMENT OR REMOVAL.
6) DO NOT CLEAN TIMING BELT WITH PARTS CLEAN-
ERS OR ENGINE DEGREASERS.
7) IF TIMING BELT BECOMES CONTAMINATED WITH
ENGINE OIL REPLACE IMMEDIATELY.
A) CVR-32565, BELT DRIVE COVER
B) SPD-38660 SPIDER GEAR
C) PLY-35560 UPPER PULLEY WITH STUDS
D) PLY-35585 LOWER PULLEY
E) BEL-31072 TIMING BELT
F) PLT-35260 THRUST PLATE WITH SEAL
G) ADP-30080 BIG-BLOCK CAM ADAPTER
H) WSH-39750 CAM ADAPTOR WASHER
L) DCL-12830 JESEL BELT DRIVE DECALS
M) KTB-38010, THRUST PLATE SHIMS
AND HARDWARE KIT ALSO INCLUDED IN KIT
AVAILABLE TOOLS:
I) TOL-39310 LOWER PULLEY DRIVER
J) TOL-39260 CAMSHAFT SPANNER WRENCH
K) TOL-19210 T45 TORX SOCKET
REQUIRES CRANK TRIGGER IGNITION SYSTEM
REV 04/08
