Jesel INS-32000 Mark 4/5, Gen 6 BB Chevy - Manual (Page 3)

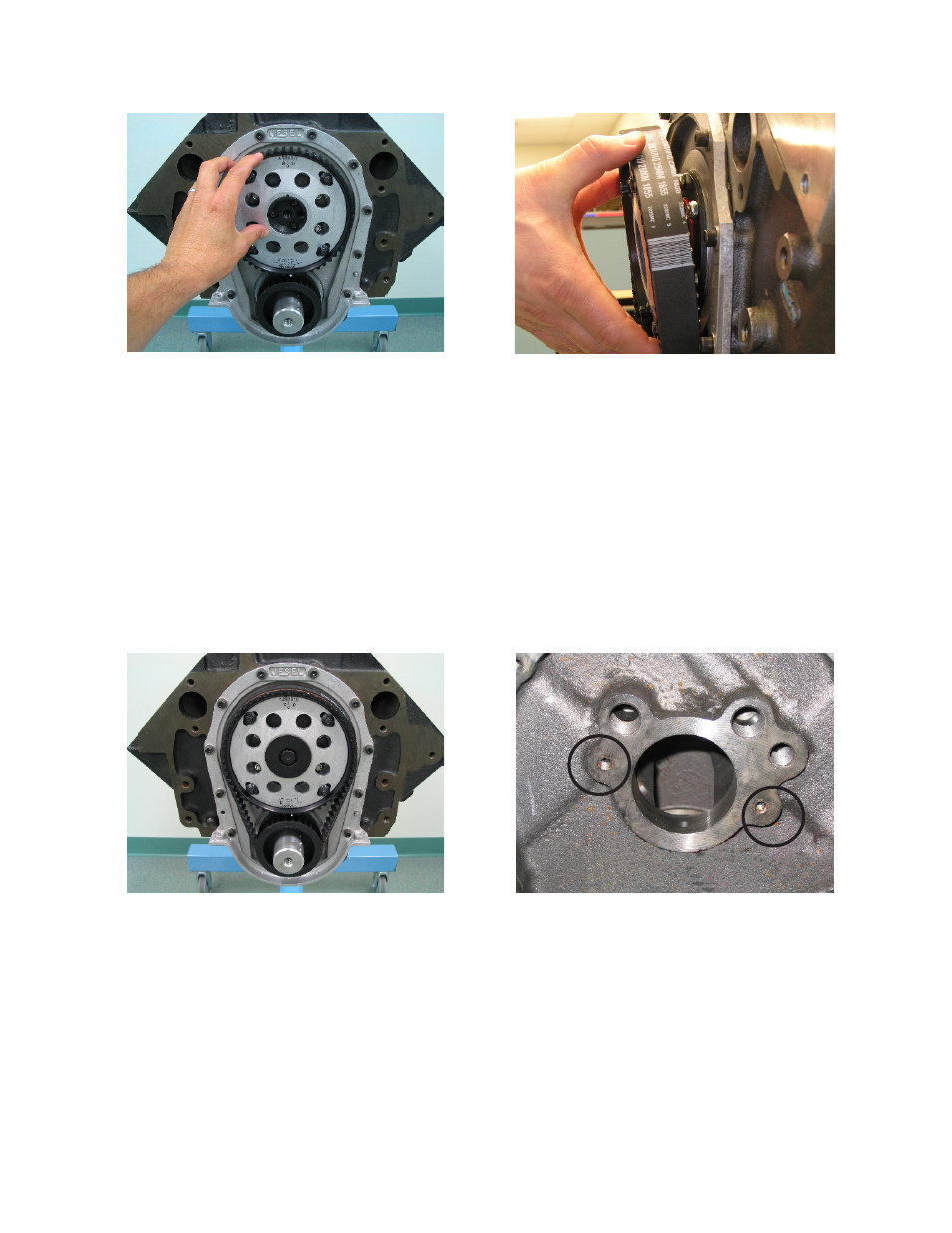

STEP 8 STEP 9
STEP 10 STEP 11
ROTATE CRANKSHAFT SO THAT #6 CYLINDER IS AT
T.D.C.
ROTATE THE CAMSHAFT SO THAT THE KEYWAY IS AT
THE 12 O’CLOCK POSITION.
INSTALL THE UPPER PULLEY SPIDER (SPD-38660)
INTO THE UPPER PULLEY (PLY-35520). ALIGN TIMING
MARKS ON SPIDER WITH TIMING LINE ON UPPER
PULLEY. TIGHTEN THE FOUR 5/16-20 12pt FLANGED
NUTS (NUT-34765) BY HAND. LOCATE THE CAM
ADAPTOR WASHER (WSH-39750) AND 7/16-20 LEFT
HAND THREADED CAM ADAPTOR BOLT (BLT-31350).
TILT THE TOP OF THE UPPER PULLEY DOWN
TOWARDS THE CRANKSHAFT AND SLIDE THE
BELT (BEL-31010) OVER THE TWO PULLEYS. WITH
THE UPPER PULLEY ENGAGED FIRMLY INTO THE
CAMSHAFT ADAPTER KEY, TORQUE THE LEFT
HAND 7/16-20 BOLT TO 70 LBS-FT.
USING A DEGREE WHEEL, SET CAM TIMING TO
DESIRED SPECS AND TORQUE UPPER PULLEY
NUTS TO 22-24 FT / LBS.
THE BELT DRIVE INSTALLATION IS NOW COMPLETE.
PLEASE OBSERVE THE FOLLOWING NOTES:
1) ALWAYS DOUBLE CHECK CAMSHAFT TIMING BY
USING A HIGH QUALITY DEGREE WHEEL.
2) ALWAYS DOUBLE CHECK YOUR PISTON TO VALVE
CLEARANCE. CHANGING CAM TIMING CHANGES
PISTON TO VALVE CLEARANCE.
3) IF THE BELT DRIVE IS GOING TO BE OPERATED
IN AN ABRASIVE ENVIRONMENT, WE RECOMMEND
COVERING THE UNIT TO PREVENT EXCESSIVE WEAR
TO THE PULLEYS.
NOTE:
ON SOME AFTERMARKET RACING BLOCKS,
ADDITIONAL BLOCK CLEARANCING MAY BE
NECESSARY. WHEN INSTALLING THE BELT DRIVE
SYSTEM, TEST FIT THE COVER TO SEE IF ANY
CLEARANCE PROBLEMS ARISE AND MACHINE
BLOCK AS NEEDED.
